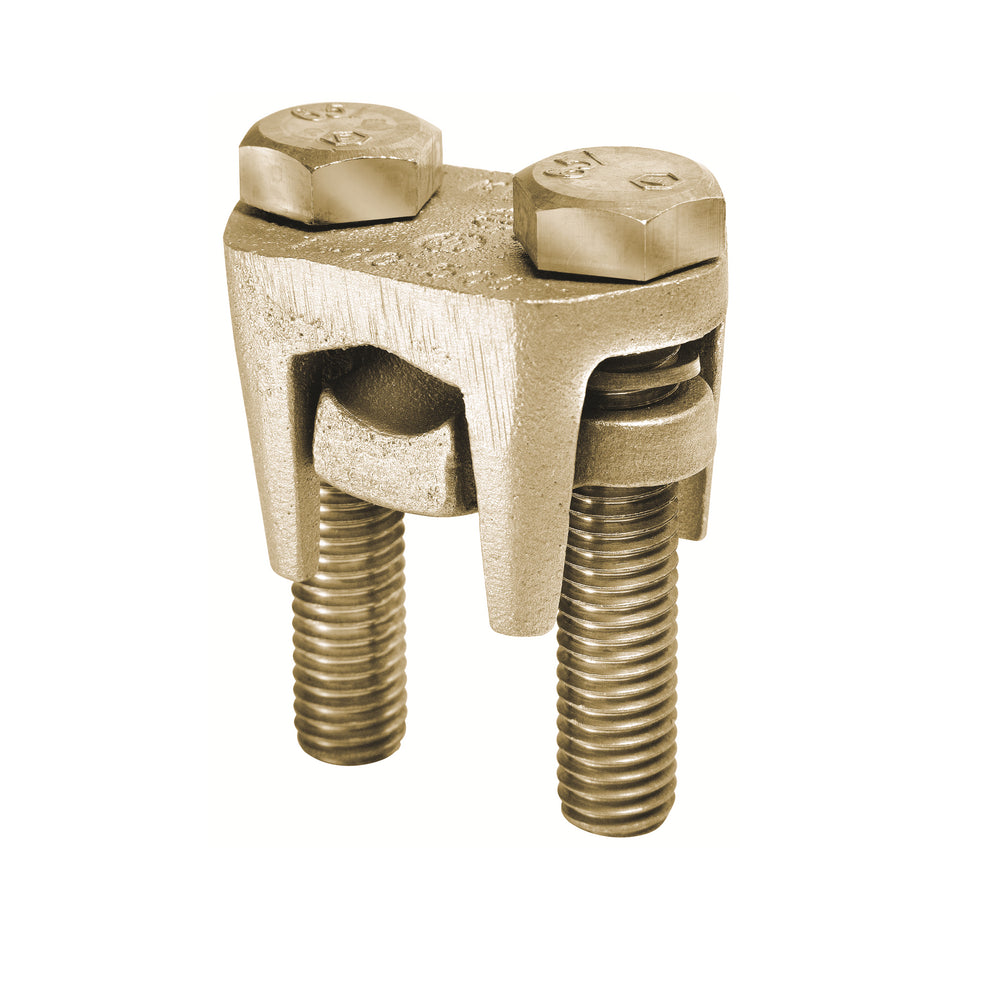

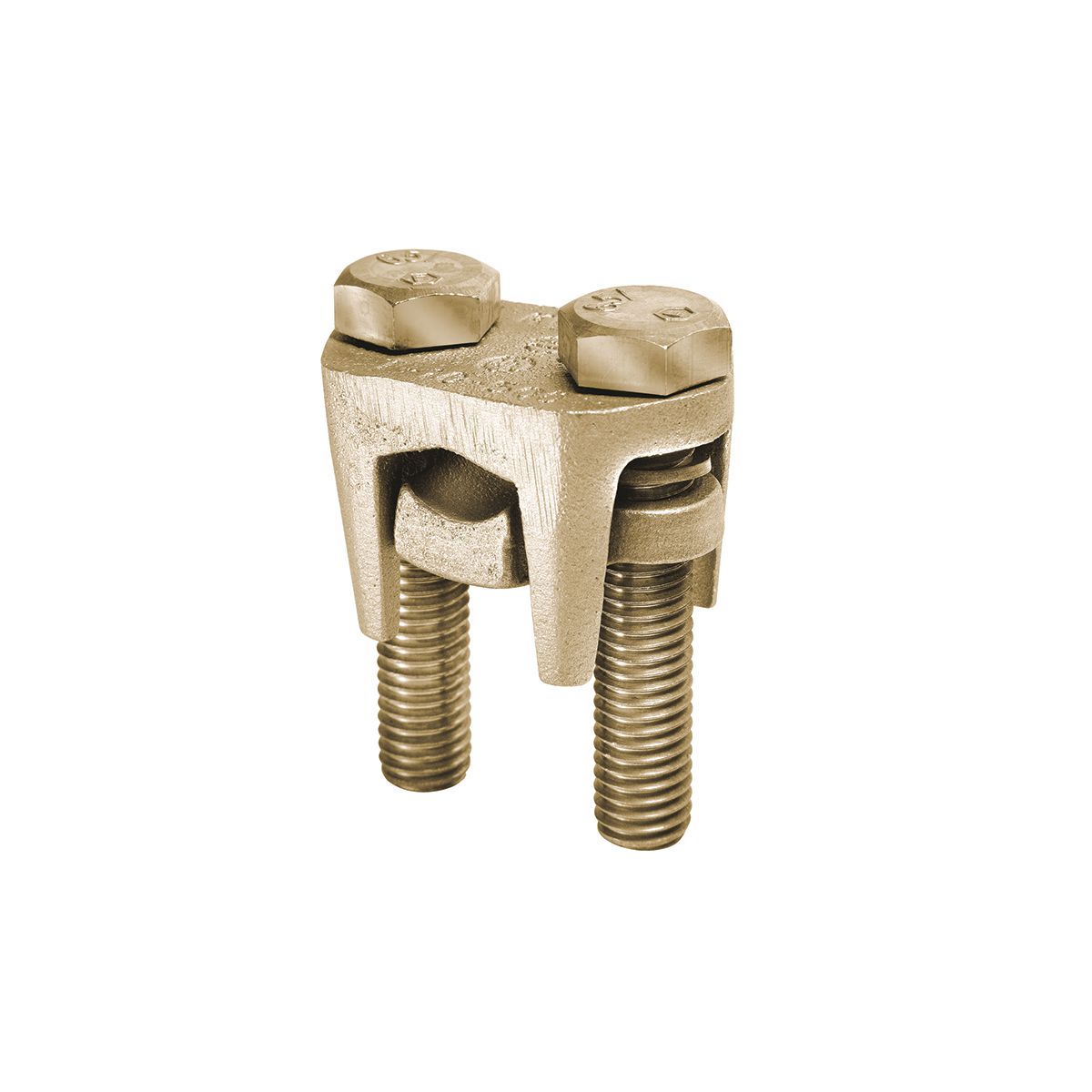

Burndy KVS40 OKLIP Service Connector

Product Description

The BURNDY KVS40 is a compact, two-piece, high-strength, high copper alloy OKLIP service connector recommended for heavy-duty connections. It features neoprene rings to hold DURIUM bolts in place during installation and can be installed with an ordinary wrench. Recommended tightening torque is 500 in-lb. It is suitable for copper and copperweld applications.

• Compact, 2-piece, high strength, high copper alloy, recommended for heavy duty connections
• Neoprene rings hold silicon bronze bolts in place during installation
• Installed with ordinary wrench

Product Highlights

The BURNDY KVS40 OKLIP service connector is designed for heavy-duty connections, offering a compact and high-strength solution for copper and copperweld applications.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer Part Number: KVS40
• Country of Origin: Mexico

Technical Specifications

• Application: For Copper And Copperweld, Heavy Duty Connections
• Catalog Number: KVS40
• EU RoHS Indicator: Yes
• Installation Torque Recommended in-lb: 500
• Material: Copper
• Plated: No
• Plating Type: Unplated
• Sub Brand: OKLIP
• Trade Name: OKLIP
• Type: KVS
• UPC: 781810063903
• UPC 14 Digit GTIN: 00781810063903
• Dimension - Height inch: 3.19 in
• Dimension - Height mm: 81.02 mm
• Dimension - Stud Size inch: 1/2 in
• Dimension - Width inch: 2.50 in
• Conductor - Copper Str Run Range: 400 - 800 kcmil
• Conductor - Copper Str Tap Range: 3/0 str. - 800 kcmil
• Conductor Type: CU C Str-Run CU C Str-Tap CU Weld C Solid-Run CU Weld C Solid-Tap
• Industry Standard(s): UL486C
• Standards - Industry Standards Met: UL486C
• Standards - RoHS Compliance Status: CM
• UL Listed: Yes
• Brand: Hubbell Incorporated
• Finish: Copper
• Product UPC: 78181006390
• Weight: 1.0600 lb
• Height: 3.19 Inch
• Length: 1.62 Inch
• Width: 2.50 in
• Buy American Compliant: Y
• Country of Origin: Mexico
• CSA: No
• MPN: KVS40
• Condition: New Open box
