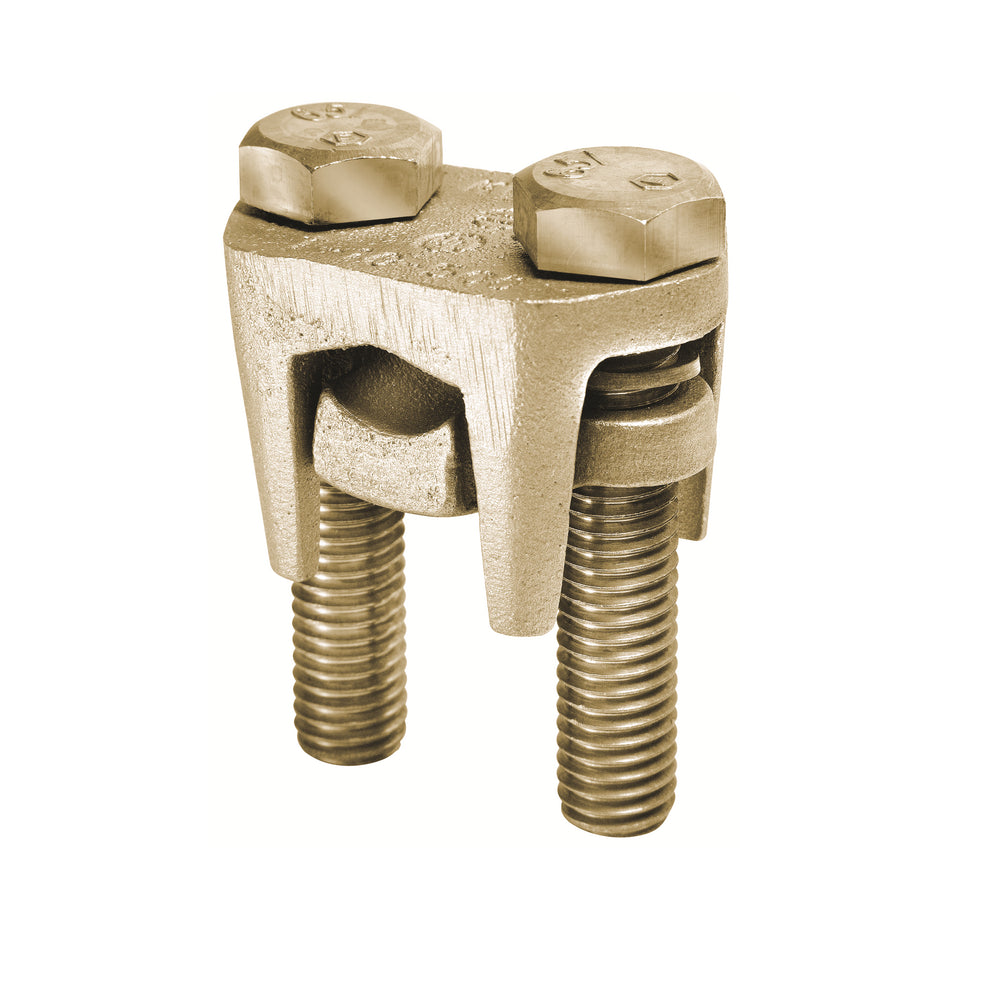

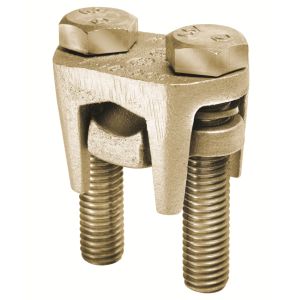

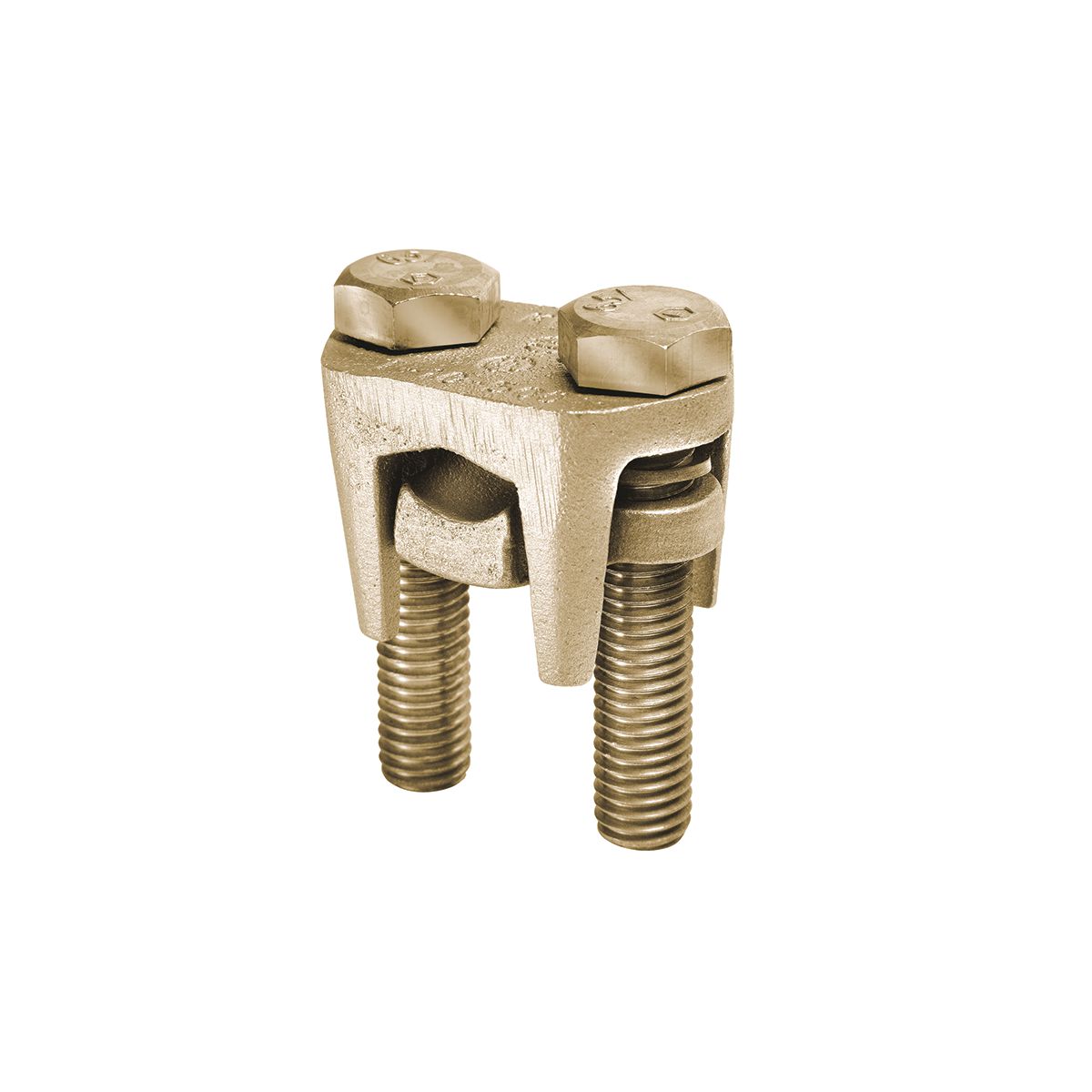

Burndy KVS31 Oklip Compact 2-Piece High Strength Copper Alloy Connector

Product Description

The BURNDY KVS31 OKLIP is a compact, two-piece, high-strength, high copper alloy connector recommended for heavy-duty connections. Neoprene rings hold DURIUM bolts in place during installation. It is installed with an ordinary wrench. Recommended tightening torque: 325 in-lb.

• Recommended for heavy duty connections
• Neoprene rings hold DURIUM bolts in place during installation
• Installed with ordinary wrench

Product Highlights

The BURNDY KVS31 OKLIP is a compact, two-piece, high-strength copper alloy connector for copper and copperweld conductors.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer Part Number: KVS31
• Country of Origin: MX - Mexico

Technical Specifications

• Application: For Copper, Copperweld
• Catalog Number: KVS31
• EU RoHS Indicator: Yes
• Installation Torque Recommended in-lb: 325
• Material: Copper
• Plated: N
• Plating Type: Unplated
• Sub Brand: OKLIP
• Trade Name: OKLIP
• Type: KVS, Compact
• UPC: 781810062791
• UPC 14 Digit GTIN: 00781810062791
• Dimension - Height inch: 2.38
• Dimension - Height mm: 60.45 mm
• Dimension - Stud Size inch: 1/2 in
• Dimension - Width inch: 2.12
• Conductor - Copper Str Run Range: 250 kcmil- 350 kcmil
• Conductor - Copper Str Tap Range: 10 str. - 350 kcmil
• Conductor Type: CU C Str-Run CU C Str-Tap CU Weld C Solid-Run CU Weld C Solid-Tap
• Industry Standard(s): RUS
• Standards - Industry Standards Met: RUS
• Standards - RoHS Compliance Status: CM
• UL Listed: Yes
• Finish: Plain Copper Plated
• Series: KVS
• Installation: Ordinary Wrench
• Use With: Heavy Duty Connection
• Height: 2.38 Inch
• Length: 1.38 Inch
• Width: 2.100 in
• Applications: For Copper, Copperweld
• Conductor Size: 8/19 AWG to 500 kcmil
