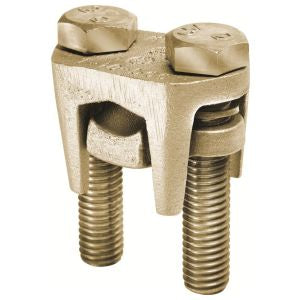

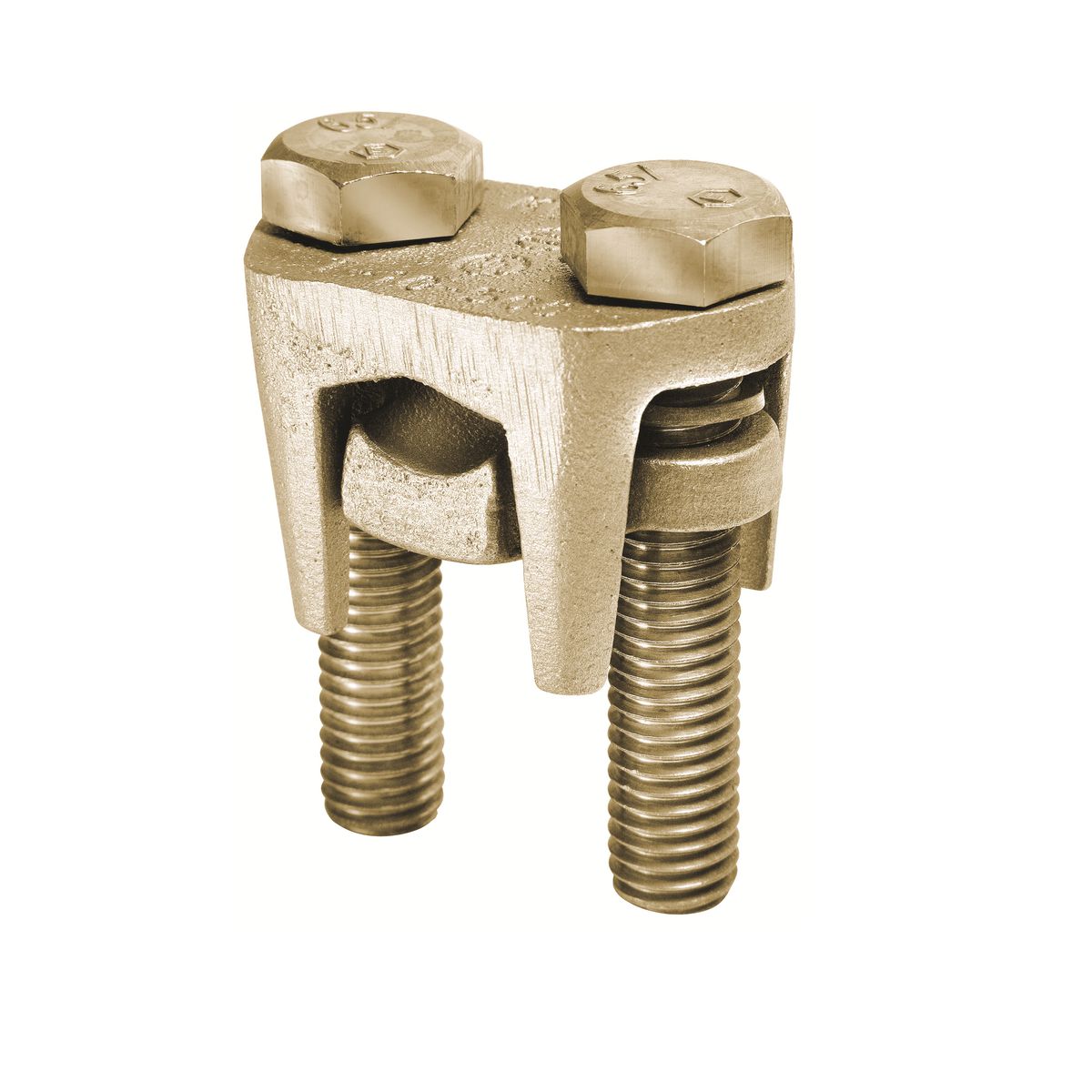

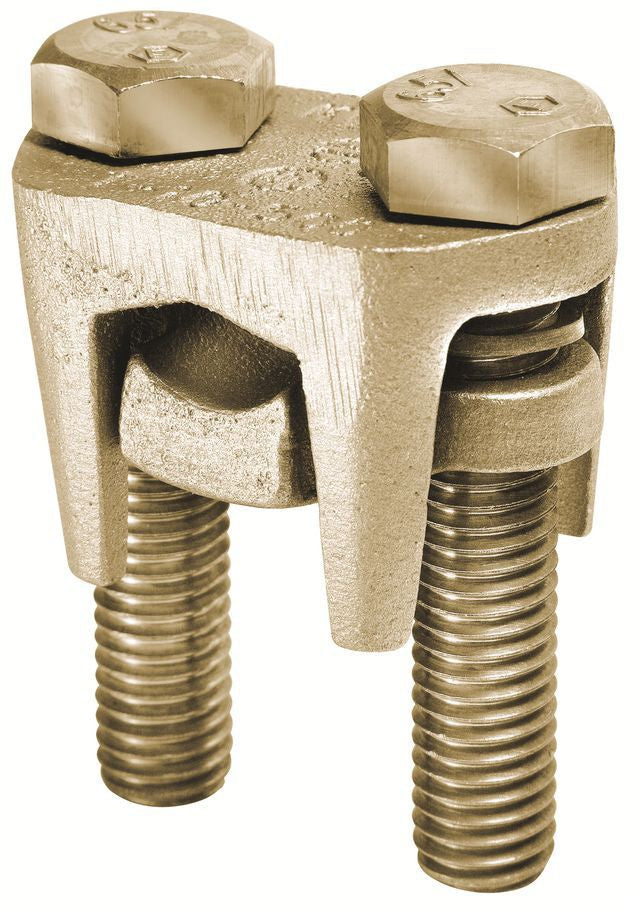

Burndy KVS28 Oklip® Two-Piece Mechanical Connector

Product Description

The BURNDY KVS28 Oklip® Two-Piece Mechanical Connector is a compact, high-strength connector made from high copper alloy, recommended for heavy-duty connections. Neoprene rings hold DURIUM bolts in place during installation, which can be done with an ordinary wrench. Recommended tightening torque is 250 in-lb.

• Compact, two-piece design
• High strength
• High copper alloy
• Recommended for heavy duty connections

Product Highlights

This BURNDY Oklip connector features a two-piece design, high-strength copper alloy construction, and easy installation with standard tools.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer Part Number: KVS28
• Country of Origin: Mexico

Technical Specifications

• ECCN: EAR99
• Country of Origin: Mexico
• UNSPSC: 39121408
• Installation: Ordinary Wrench, Two Bolt
• Conductor Material: Copper/Copperweld
• Minimum Run Conductor Size: 1/0 AWG Stranded (Copper)
• Maximum Run Conductor Size: (7) 6 AWG Stranded (Copperweld), 3/0 AWG Type V (Copperweld), 4/0 AWG Solid (Copperweld), 4/0 AWG Stranded (Copper)
• Minimum Tap Conductor Size: 10 AWG Stranded (Copper)
• Maximum Tap Conductor Size: (7) 6 AWG Stranded (Copperweld), 3/0 AWG Type V (Copperweld), 4/0 AWG Solid (Copperweld), 4/0 AWG Stranded (Copper)
• Material: Copper Alloy, High Strength Copper Alloy Body, Durium Bolt, Neoprene Ring
• Approval: UL, CSA
• RoHS Compliant: True
• Installation Torque: 250 Lb-Inch
• IGCC: 4541
• Type: KVS, Compact, 2-Piece Compact High Strength
• Application: For Copper, Copperweld, For heavy duty connections
• Family group: CONNECTORS
• Manufacturer: BURNDY
• Product Name: KVS28; 2-piece OKLIP Service Connector for heavy duty applications
• Special Features: Features: Compact; Two-Piece; High Strength; High Copper Alloy BURNDY OKLIP Reco
• WES Product code: 2830257001
• EU RoHS Indicator: Yes
• FV_Product Family: Power Connectors>Split Bolts>KVS
• Description - Long: Compact; two-piece; high strength; high copper alloy BURNDY OKLIP recommended fo
• FEATURES - Bullets: Compact; 2-piece; high strength; high copper alloy; recommended for heavy duty c
• Certification - ETL: No
• Description - Short: 2-Piece OKLIP mechanical connector with neoprene rings to hold bolts in place du
• Standards - RoHS Compliance St: CM
• Sub Brand: OKLIP
• UPC: 781810062357
• Conductor Size: 6/7 to 4/0 AWG
• Conductor Type: Copper/Stranded, Copper
• Dimensions: 6.13 in L x 4.56 in W x 4.5 in H
• Finish: Plain Copper Plated
• Series: KVS
• Catalog ID: BURKVS28
• Brand: BURNDY®
• Manufacturer Part Number: KVS28
• Numeric ID: 2510411
