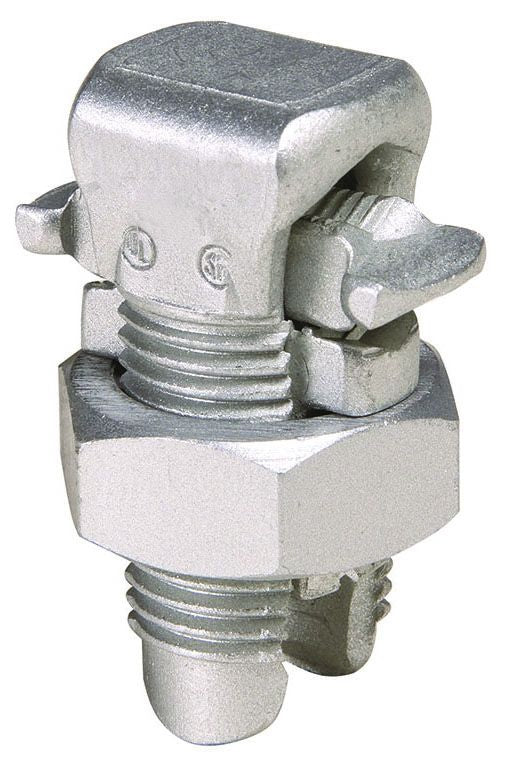

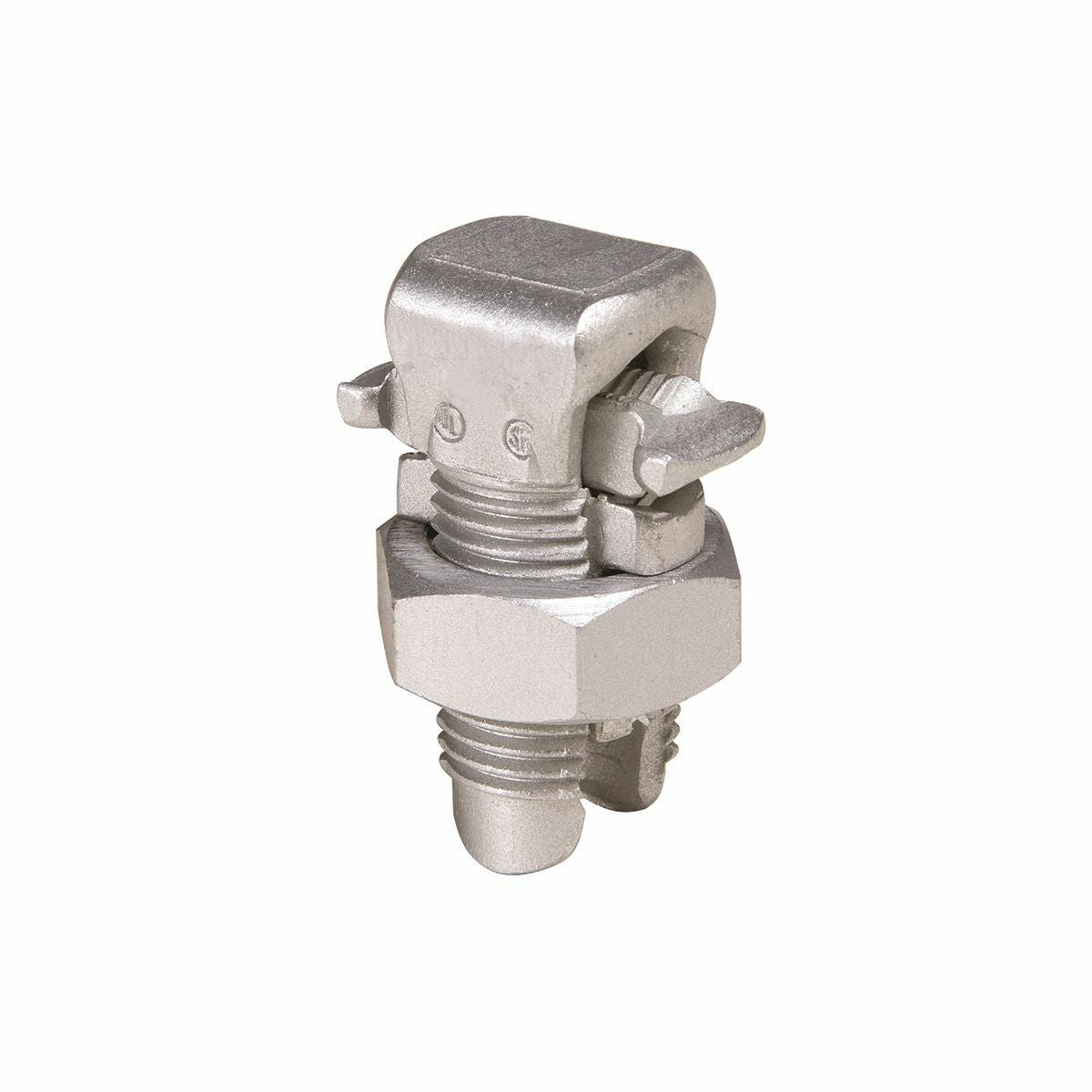

BURNDY KSA4 Aluminum Split Bolt Connector Power 4 AWG (Str) 4 AWG (Str) Al-Cu 8 AWG (Sol) 10 AWG (Sol) Cu-Cu 4 AWG (Str) 10 AWG (Sol) Tin Plated

Product Description

The BURNDY KSA4 is an aluminum split bolt connector designed for multiple applications. This connector can join various conductor types effectively. Ideal for use in both commercial and residential settings.

• Suitable for aluminum to aluminum, aluminum to copper, and copper to copper combinations
• Provides maximum pressure for a secure connection
• Facilitates easy installation with no scratch brushing required

Product Highlights

This connector features a gas-tight seal to inhibit oxide formation and offers low contact resistance. It is UL 486B listed and rated for up to ninety degrees Celsius. It also supports a range of conductor sizes, making it versatile for different projects.

Product Information

Standard Information

• Catalog Number: KSA4
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Material: Aluminum
• Application: For all combinations of aluminum to aluminum, aluminum to copper, and copper to copper
• Installation Torque: 165 IN-LB
• Overall Dimensions: Length: 1.38 inches, Width: 0.62 inches, Cross Flats: 0.81 inches
• Temperature Rating: 194°F
• UPC: 781810015407
• Cross Reference Products: APS04
