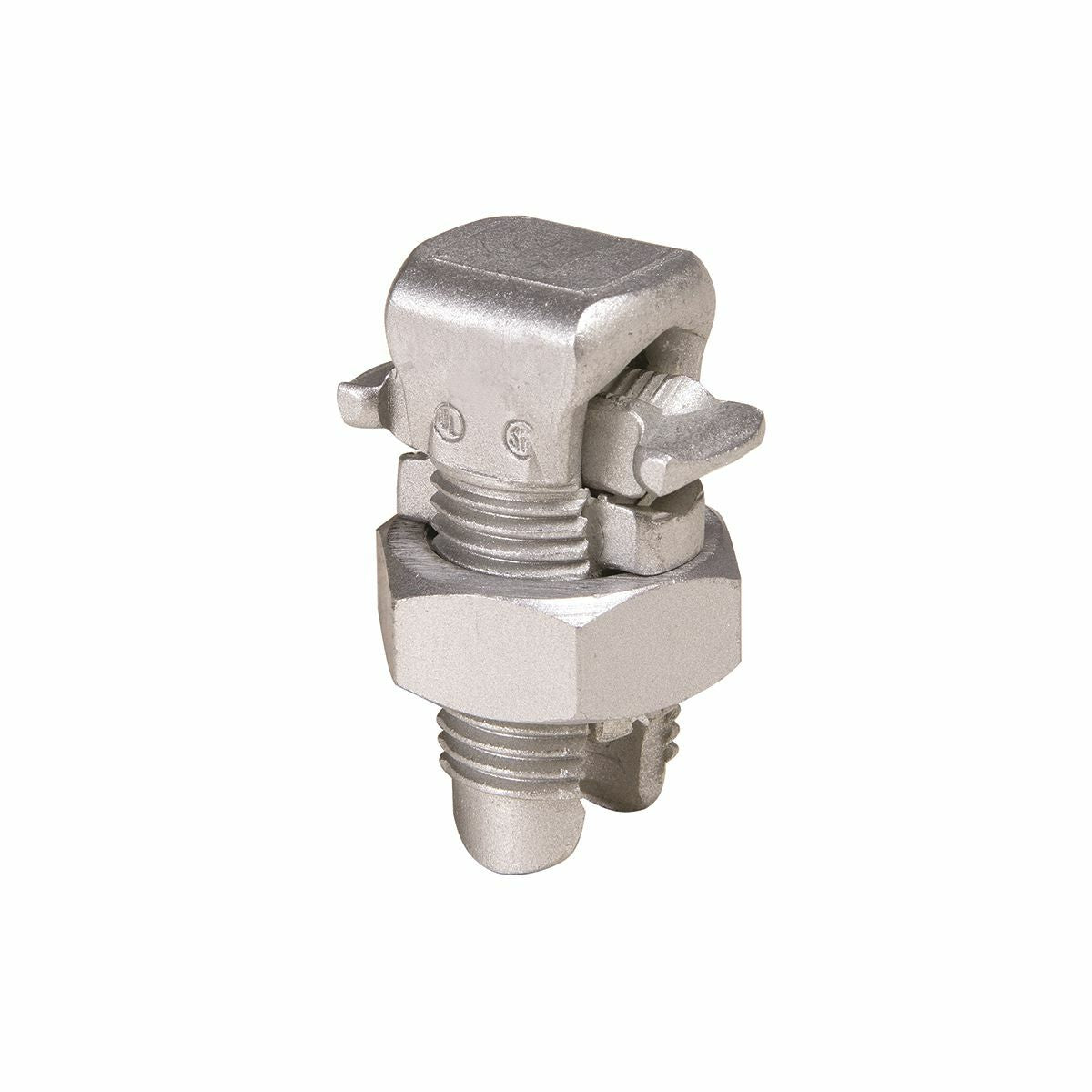

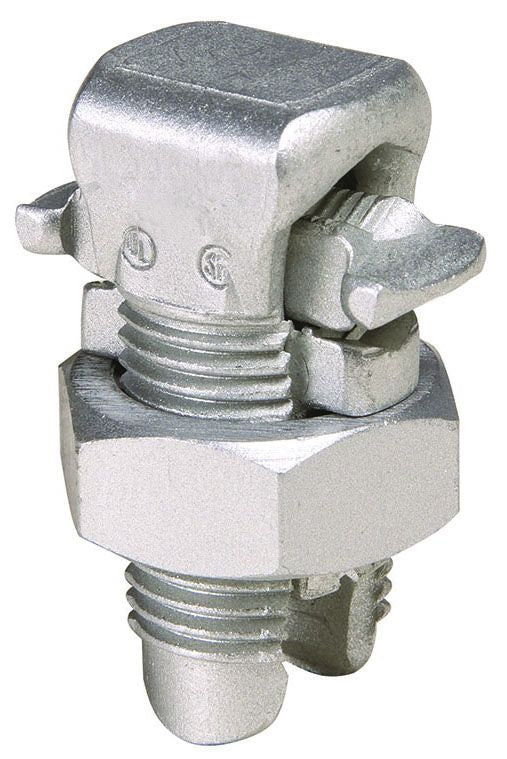

BURNDY KSA350 Aluminum Split Bolt Connector 350 kcmil

Product Description

The BURNDY KSA350 is an aluminum split bolt connector designed for various combinations of aluminum and copper conductors. This connector is built to handle conductors up to three hundred fifty kcmil in size, ensuring a secure connection for electrical installations.

• Compatible with Aluminum to Aluminum, Aluminum to Copper, and Copper to Copper connections.
• Features tin-plated aluminum for enhanced conductivity and corrosion resistance.
• UL 486A-486B listed, ensuring compliance with industry standards.

Product Highlights

This product is suitable for commercial stranded aluminum and copper conductors. It provides maximum pressure and secure connections for both run and tap conductors.

Product Information

Standard Information

• Catalog Number: KSA350
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Material: Aluminum
• Country of Origin: United States
• Temperature Rating: 194
• Standard: UL 486A-486B
• Installation Torque: 650 in-lb
• Cross Flats: 1.69 in
• Dimensions: Length 3.62 in, Width 1.73 in
