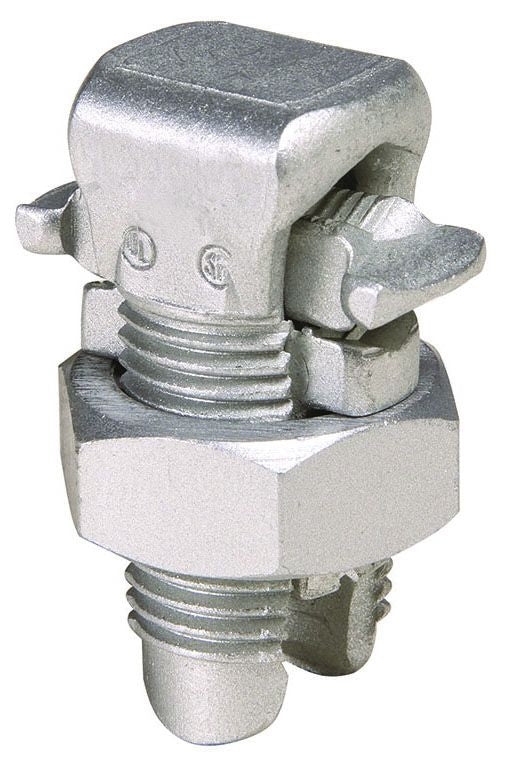

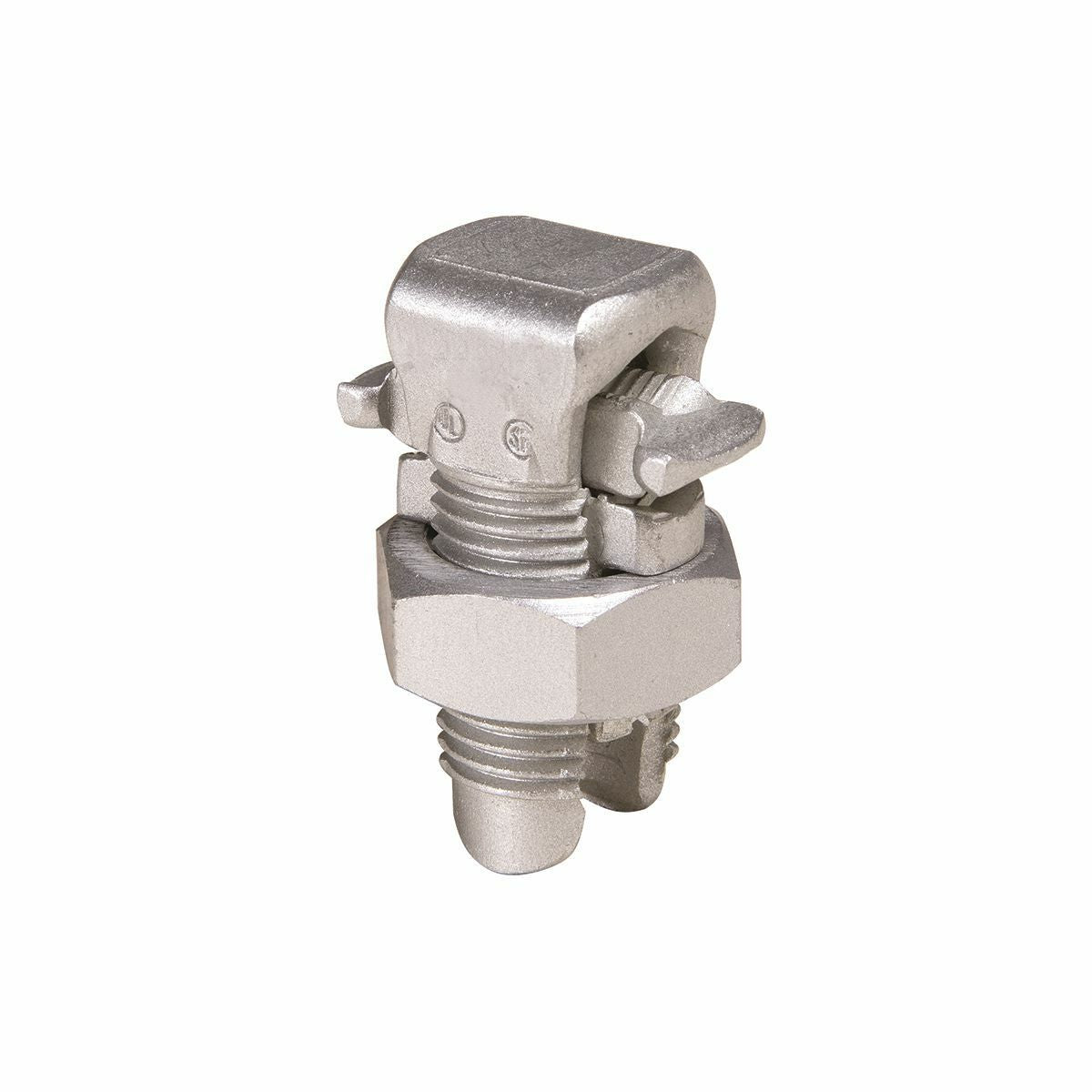

BURNDY KSA2 Aluminum Split Bolt Connector 2 AWG (Str) - 6 AWG (Sol) - Tin Plated

Product Description

The BURNDY KSA2 is an aluminum split bolt connector designed to create secure connections between different conductor types. This connector is suitable for various applications including aluminum to aluminum, aluminum to copper, and copper to copper. Its tin-plated aluminum alloy construction ensures durability and resistance to corrosion.

• Compatible with aluminum and copper conductors.
• UL 486B and CSA approved for reliable performance.
• Temperature rated up to ninety degrees Celsius.

Product Highlights

This product provides a low contact resistance and inhibits the reformation of oxides, producing a gas-tight seal for improved electrical connections.

Product Information

Standard Information

• Catalog Number: KSA2
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Material: Aluminum
• Temperature Rating: 90°C
• Installation Torque: 275 inch-pounds
• Length: 1.58 inches
• Width: 0.69 inches
• Cross Flats: 0.94 inches
• Application: For combinations of aluminum to aluminum, aluminum to copper, and copper to copper
• UPC: 781810015452
• Country of Origin: United States
• Cross Reference Products: AK-2, APS02
