BURNDY KSA1/0 TERMINALS
BURNDY KSA1/0 TERMINALS

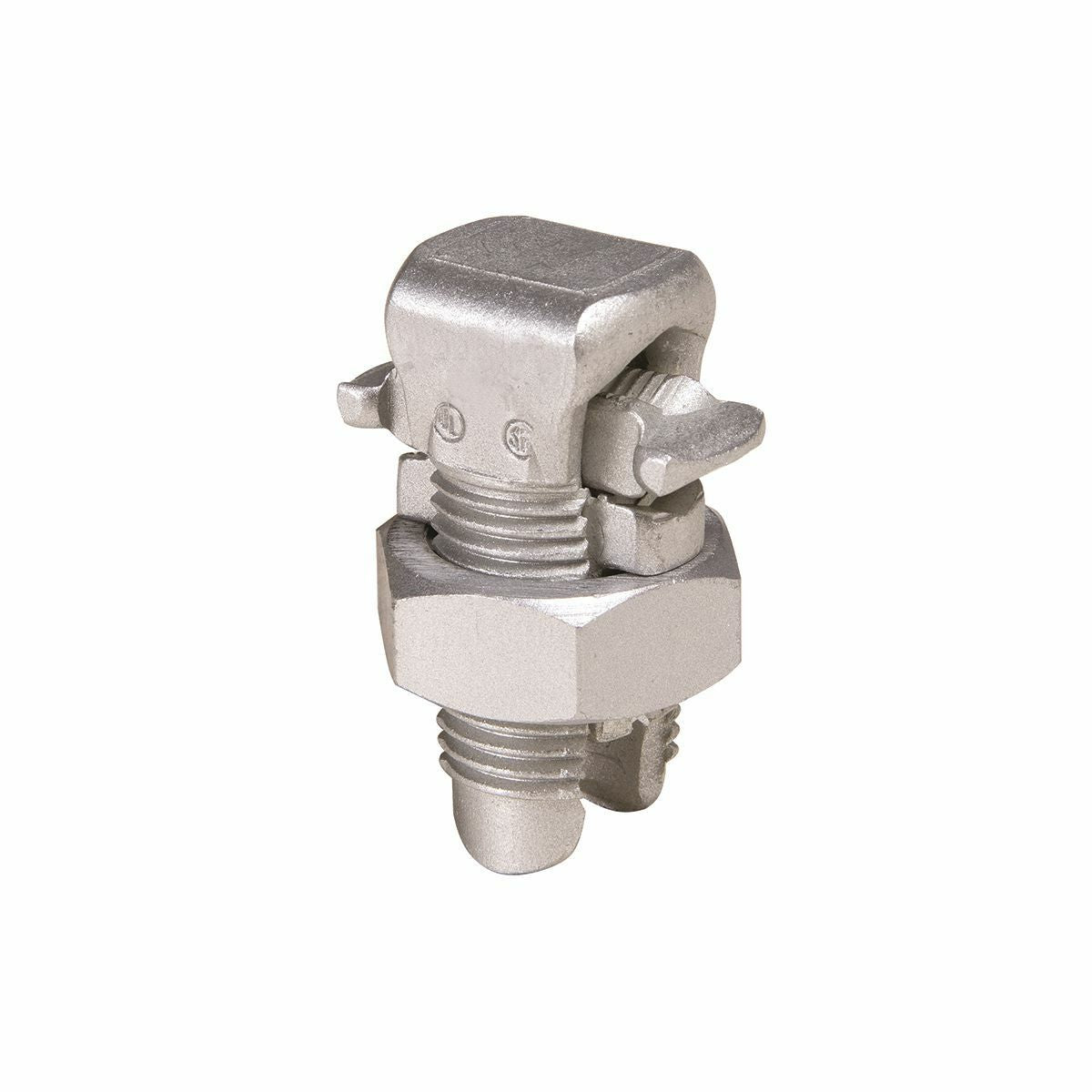

BURNDY KSA1/0 Aluminum Split Bolt, Run, Tap: Al-Al: 1/0 AWG Str, 1/0 AWG Str, Al-Cu: 2 AWG Str, 8 AWG Sol, Cu-Cu: 1/0 AWG Str, 8 AWG Sol, Tin Plated

Brand: BURNDY
SKU: KSA1/0
Availability: In Stock

Ships same day if ordered by 12 pm
$22.70
$22.70
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The BURNDY KSA1/0 is an aluminum split bolt connector ideal for joining various wire combinations. It is suitable for aluminum to aluminum, aluminum to copper, and copper to copper connections. This connector features a tin plating for enhanced durability and conductivity.

  • Compatible with multiple wire types: Aluminum and Copper
  • Made in the USA and UL 486B listed for safety
  • Temperature rated for up to one hundred ninety-four degrees Celsius

Product Highlights

The BURNDY KSA1/0 provides a secure connection while preventing oxide build-up due to its gas-tight seal. It assures ease of installation and dependable performance across various applications.

Product Information

Standard Information

  • Catalog Number: KSA1/0
  • Manufacturer: Burndy, a Hubbell affiliate
Technical Specifications
Material
Aluminum
Application
For all combinations of aluminum to aluminum, aluminum to copper, and copper to copper
Width
0.75 inches
Length
1.92 inches
Cross Flats
1 inch
Installation Torque
385 IN-LB
Special Features
No scratch brushing needed, low contact resistance, maximum retention for conductor combinations
Country of Origin
United States
UPC
781810153000
