Product Description

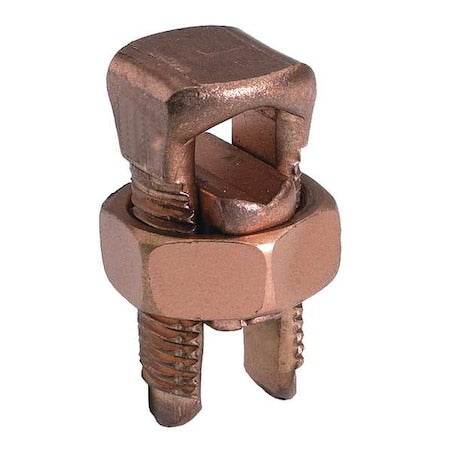

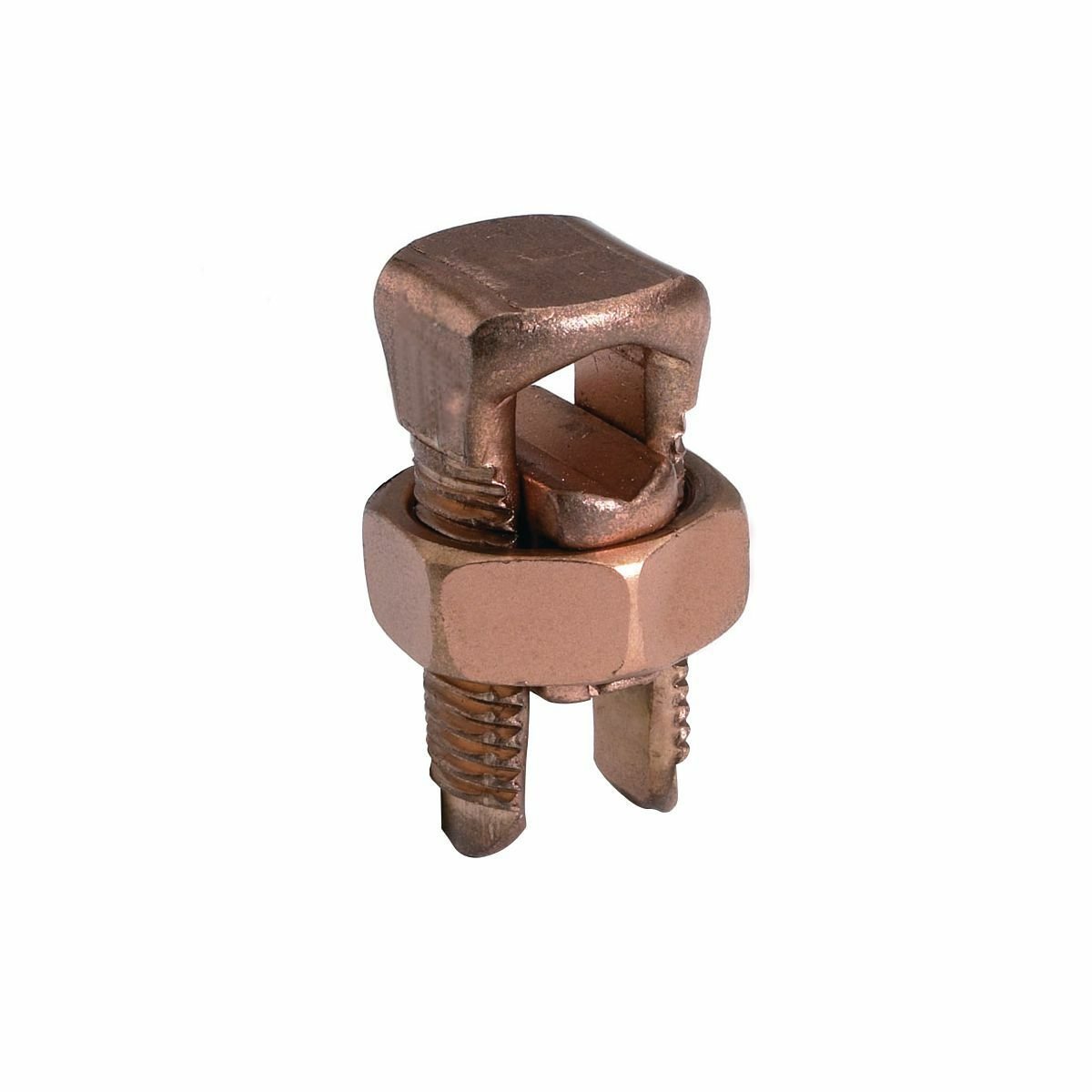

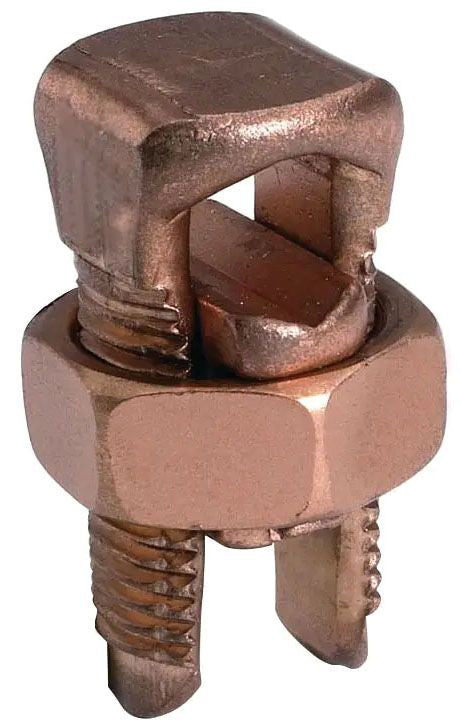

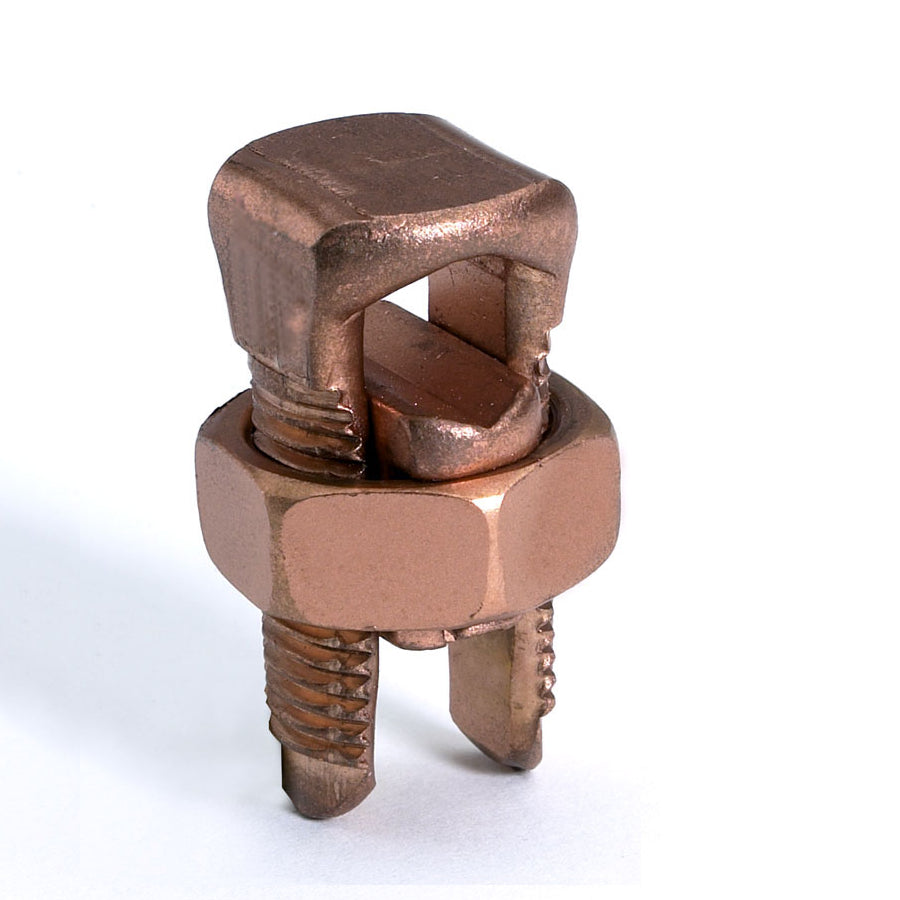

The Burndy KS39 copper split bolt connects copper conductors, accommodating sizes from 4/0 AWG to 750 kcmil for both run and tap connections. Constructed from a high-strength copper alloy, it features free-running threads and wrench flats for easy gripping. This split bolt is suitable for direct burial applications.
- Compact, high-strength copper alloy SERVIT split-bolt
- Highly resistant to season cracking and corrosion
- Provides maximum pressure for a secure connection
Product Highlights
Ideal for direct burial applications, this split bolt ensures a secure connection for a range of copper conductor sizes.
Product Information
Standard Information
-
Brand: BURNDY
-
Manufacturer Part Number: KS39
-
Country of Origin: USA
Technical Specifications
-
Type: KS
-
Brand: Burndy
-
Width: 1.94 in
-
Finish: Copper
-
Height: 2.62 Inch
-
Length: 3.51 Inch
-
Plated?: No
-
Material: Copper Alloy
-
Bolt Size: 1-7/8 in
-
Sub Brand: Servit®
-
Product UPC: 78181001475
-
12-Digit UPC: 781810014752
-
Applications: For Direct Burial Cables
-
Plating Type: Unplated
-
Direct Burial?: Yes
-
Overall Length: 1-3/4 in
-
Connection Type: Split Bolt
-
Country of Origin: USA
-
Buy American Compliant: Y
-
CSA: No
-
Installation Torque: 1000 in-lb
-
Standard: UL 486A;UL486B
-
Item Type: KS
-
Torque: 1,000 in-lb
-
Connects: Copper to Copper Wire
-
UL Listed: Yes
-
Head Style: Square Head
-
Hex Nut Size: 2.31 in
-
Body Material: Copper
-
Maximum Voltage: 35,000 V
-
Wire Size Range (Run): 4/0 AWG - 750 kcmil
-
For Maximum Run Wire Size: 750 kcmil Stranded (Copper), (19) 5 AWG Stranded (Copperweld)
-
For Maximum Tap Wire Size: 750 KCMIL (Copper), (19) 5 AWG Stranded (Copperweld)
-
For Minimum Run Wire Size: 4/0 AWG Stranded (Copper)
-
For Minimum Tap Wire Size: 4/0 AWG (Copper)
-
Conductor Material: Copper/Copperweld
-
RoHS Compliant: True
-
Torque Rating: 1000 Inch-Pound
-
Cross Flat: 2.31 Inch
-
Alloy: High Conductivity Copper Alloy
-
Certification - UL Listed Direct Burial: Yes
-
Dimension - B Length inch: 1.75 in
-
Dimension - Length Overall inch: 3.51
-
Installation Torque Recommended in-lb: 1000 in
-
Standards - Industry Standards: UL 486A;UL486B
-
Weight: 1.7380 lb
-
Conductor Type: CU C Str-Run
CU Weld C Str-Run
CU C Str-Tap
CU Weld C Str-Tap
-
Industry Standard(s): UL 486A
UL486B
