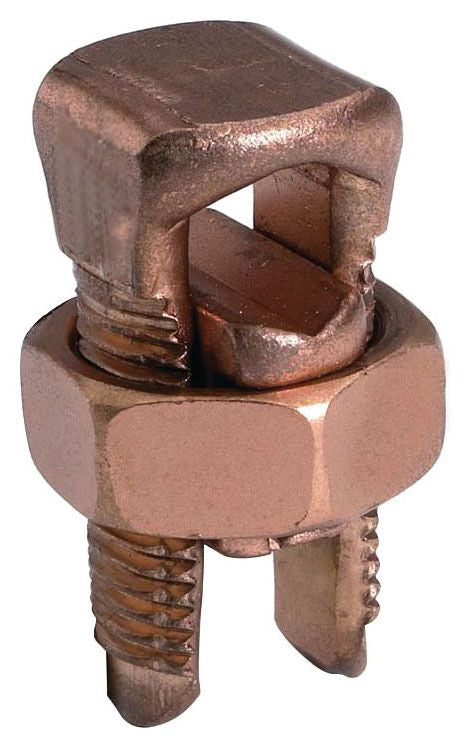

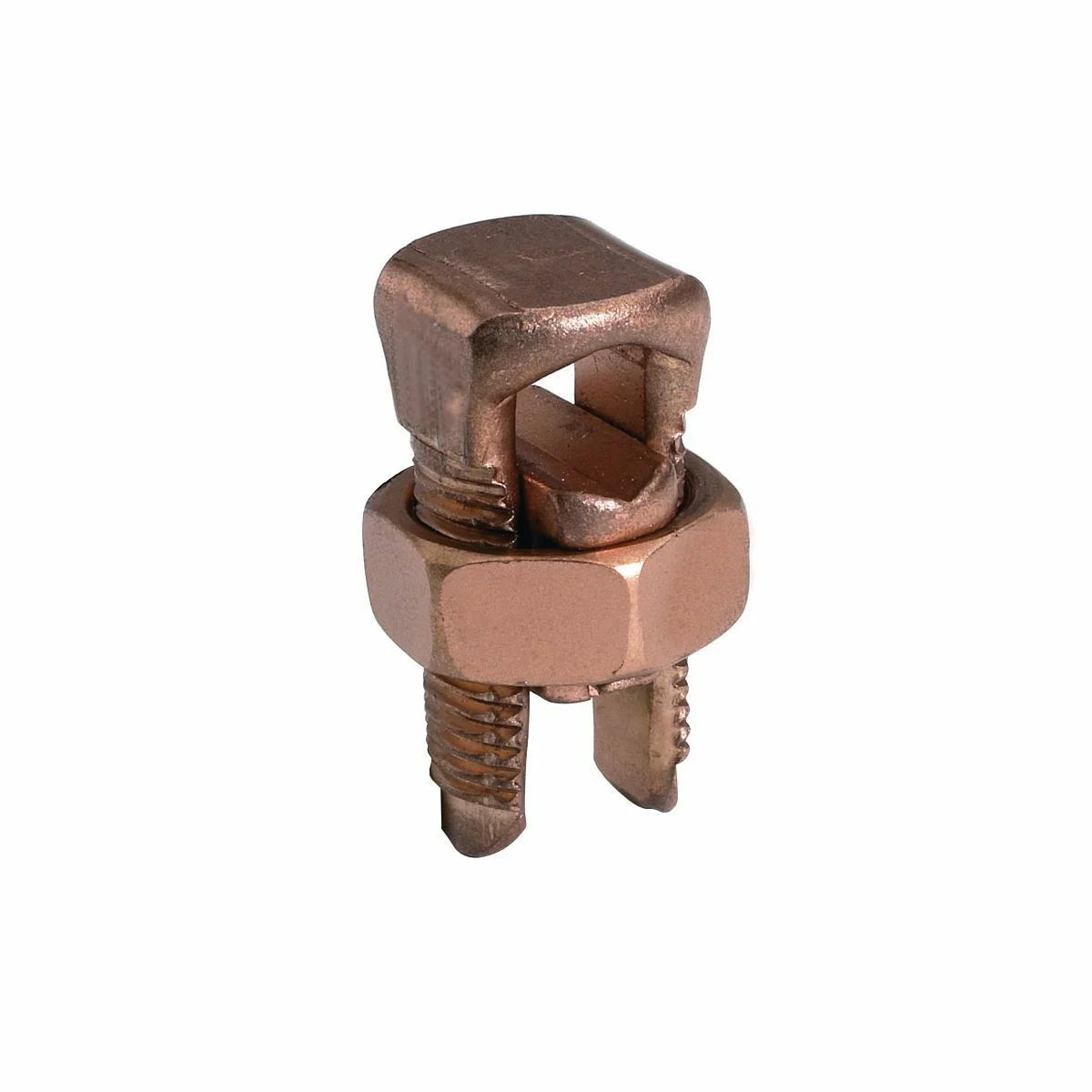

BURNDY KS27 Copper Split Bolt, Cu: 1 AWG-3/0 AWG (Str) (Run & Tap)

Product Description

The BURNDY KS27 is a copper split bolt connector designed for efficient termination of stranded copper conductors. This connector accommodates conductor sizes ranging from one AWG to three-aught AWG. The KS27 is suitable for both run and tap applications and is specifically engineered for direct burial use.

• Compatible with 1 AWG to 3/0 AWG stranded copper conductors
• Installation torque of 500 inch-pounds
• Features free-running threads and easy grip for secure connections

Product Highlights

The KS27 provides maximum pressure for a secure connection across various conductor types, making it an essential tool for electricians and contractors.

Product Information

Standard Information

• Manufacturer: Burndy, a Hubbell affiliate
• Brand: BURNDY

Technical Specifications

• Catalog Number: KS27
• Material: Copper
• Country of Origin: United States
• Application: For direct burial cables
• Special Features: High copper alloy construction resistant to corrosion
• Installation Torque: 500 IN-LB
• Overall Dimensions: Length 1.86 inches, Width 1.17 inches, Cross Flats 1.36 inches
