Product Description

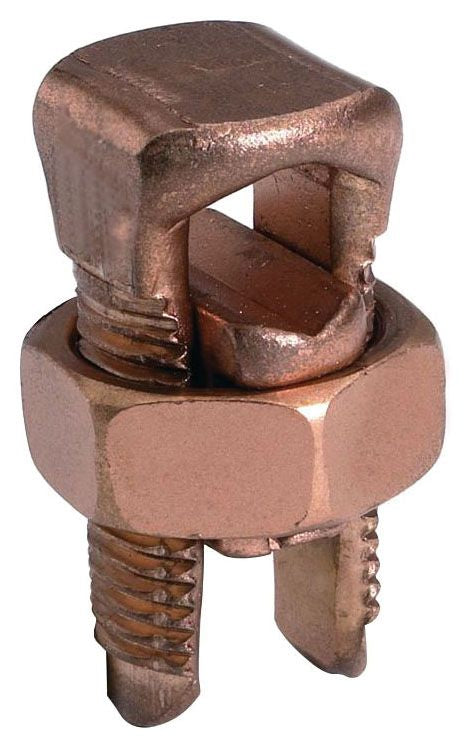

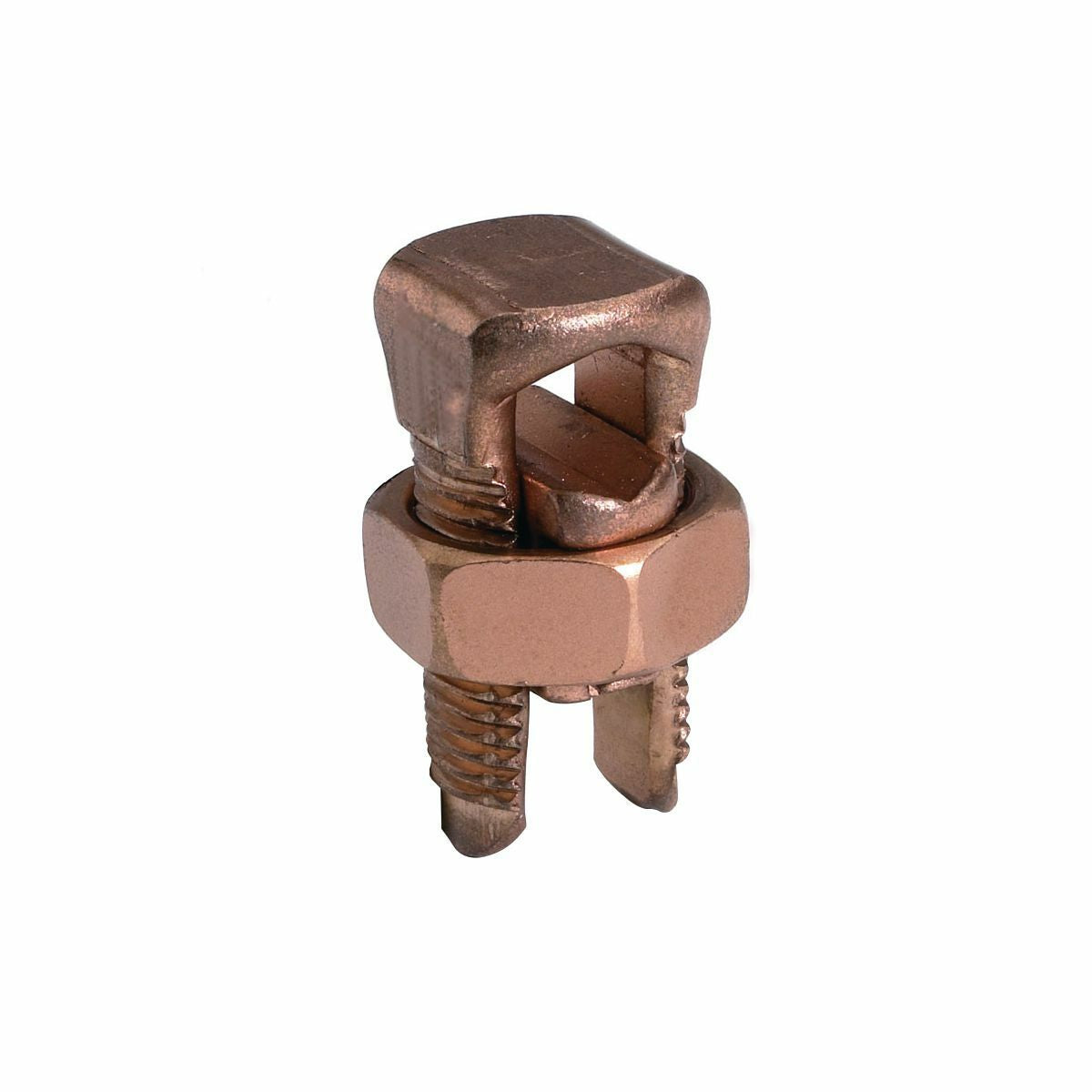

The BURNDY KS22 Copper Split Bolt is designed for effective wire connections in various electrical applications. It is suitable for use with copper and copper-weld conductors. This product supports wire sizes from eight AWG for stranded wires to six AWG for solid wires. Ideal for use in underground or direct burial situations, it ensures durability and reliability.
- UL Listed for Direct Burial Applications
- Compact design with easy-to-grip wrench flats
- High copper alloy for excellent conductivity
Product Highlights
The KS22 features a robust build that resists cracking and corrosion. It includes free-running threads for smooth installation and accommodates a wide range of conductor types including copper and copperweld.
Product Information
Standard Information
-
Catalog Number: KS22
-
Manufacturer: Burndy, a Hubbell affiliate
Technical Specifications
-
Application: For Direct Burial Applications In Earth Or Concrete
-
Made in USA: Yes
-
Installation Torque: 275 IN-LB
-
Overall Length: 1.5 IN
-
Cross Flats: 0.75 IN
-
Width: 0.6 IN
-
Conductor Type: Run and Tap
-
UPC: 781810012505
-
GTIN: 00781810012505
