Burndy KS173 Split Bolt Connector, Run/Tap: #8 Awg Str-#6 Awg Sol

Product Description

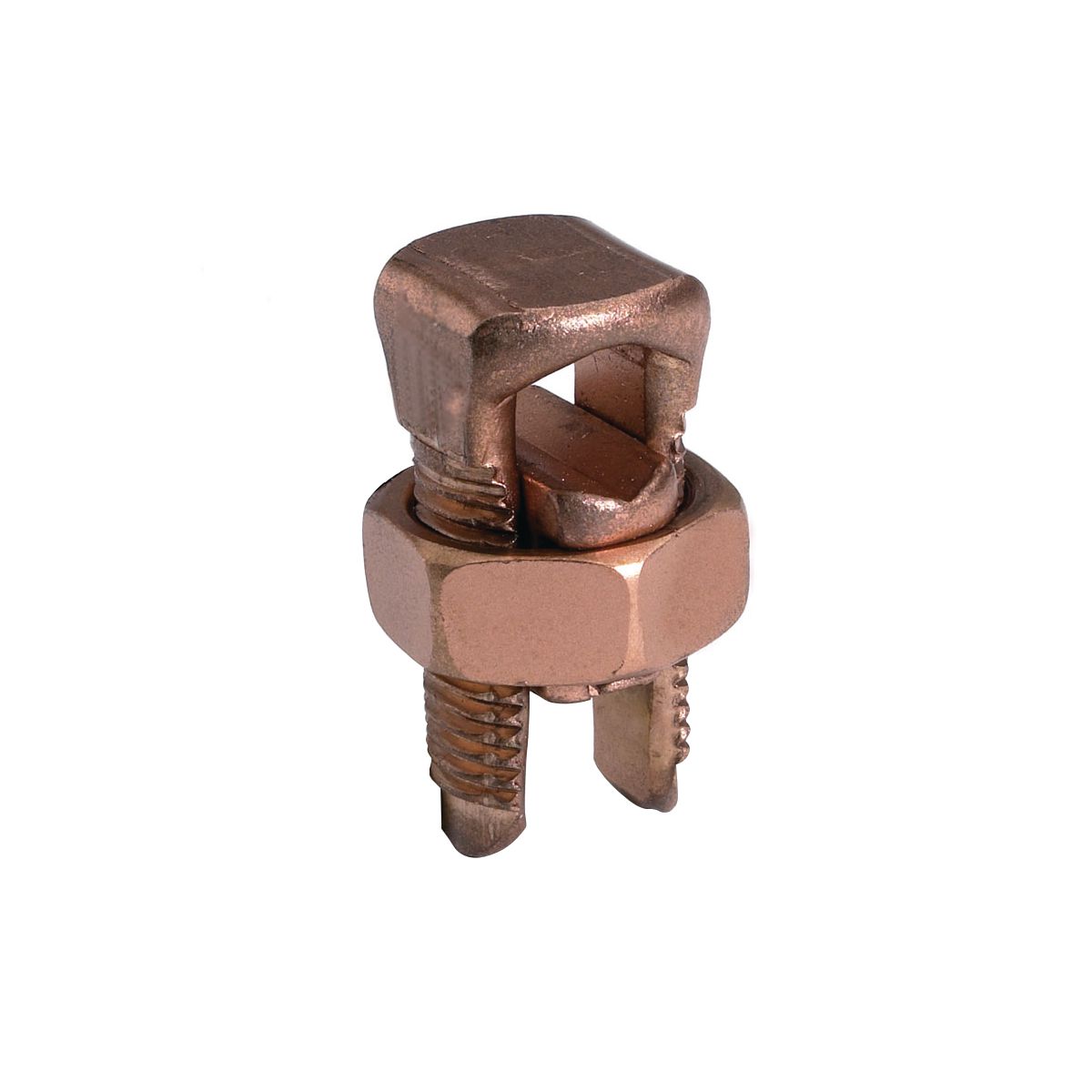

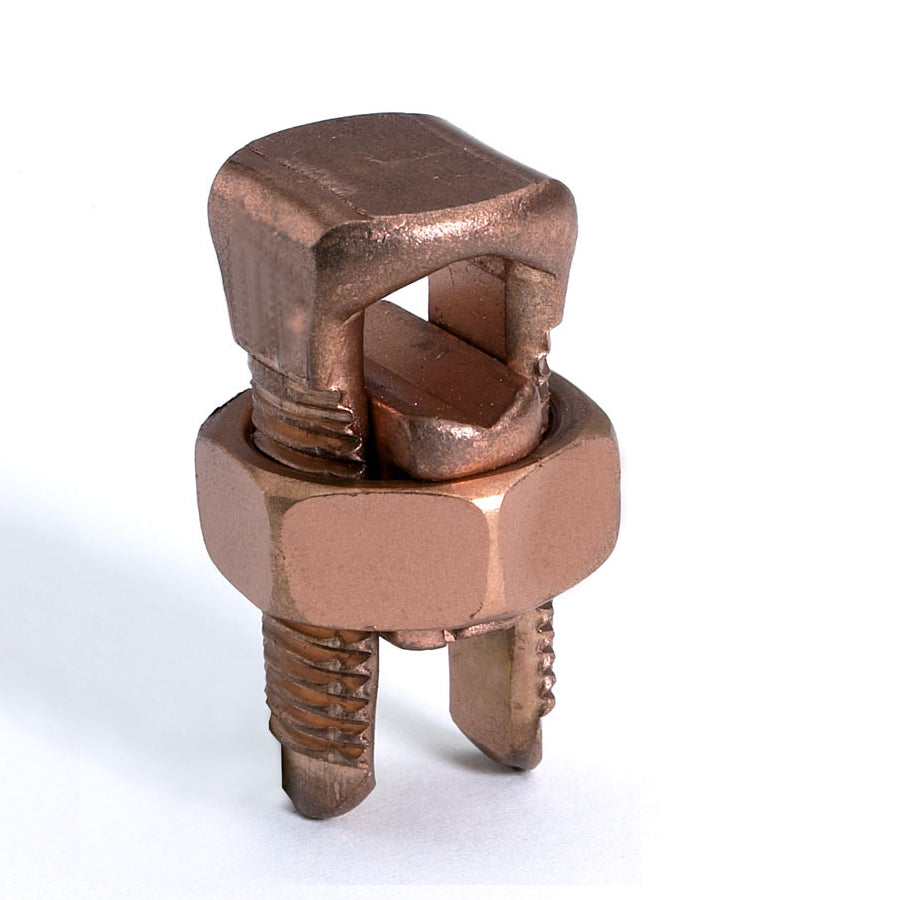

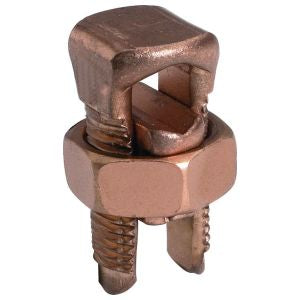

The BURNDY KS173 is a copper split bolt designed for copper, copperweld, and direct burial cables. This split bolt connector accommodates run and tap conductors. Constructed from a compact, high-strength copper alloy, it features free-running threads and easy-to-grip wrench flats.

• For Copper, Copperweld, Direct Burial Cables
• Compact, high-strength, copper alloy with free-running threads and easy to grip wrench flats
• Highly resistant to cracking and corrosion

Product Highlights

The BURNDY KS173 split bolt connector is ideal for various copper conductor applications, offering durability and ease of installation.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer Part Number: KS173
• Country of Origin: US - United States

Technical Specifications

• Catalog Number: KS173
• Connector Type: Split Bolt
• EU RoHS Indicator: Yes
• Installation Torque Recommended in-lb: 165 LBS/in
• Material: Copper
• Plated: No
• Plating Type: Unplated
• Sub Brand: SERVIT
• Trade Name: SERVIT
• Type: KS-3
• Dimension - Cross Flats inch: .62 in
• Dimension - L Length Overall mm: 25 mm
• Dimension - Length Overall inch: 0.98
• Dimension - Width inch: 0.70 in
• Dimension - Width mm: 18 mm
• Conductor - Copper Solid Run: 6 AWG
• Conductor - Copper Solid Run Range: 6 AWG
• Conductor - Copper Solid Tap: 6 AWG
• Conductor - Copper Str Run: 8 AWG;7 AWG;6 AWG
• Conductor - Copper Str Run Range: 8 STR - 6 STR
• Conductor - Copper Str Tap: 16 AWG;14 AWG;12 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG
• Conductor - Copper Str Tap Range: 8 STR - 6 STR
• Conductor - CopperWeld C Solid Size: 12 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG
• Conductor - CopperWeld Solid Size Range: 12 AWG-6 AWG
• Conductor - CopperWeld Str Tap: 8 D AWG;7 A AWG;7 D AWG;6 A AWG
• Conductor - CopperWeld Str Tap Range: 8 D AWG-6 A AWG
• Conductor Type: CU C Solid-Run CU C Str-Run CU Weld C Solid-Run CU Weld C Str-Run CU C Str-Tap CU Weld C Solid-Tap CU Weld C Str-Tap
• Industry Standard(s): RUS
• Standards - Industry Standards Met: RUS
• Standards - RoHS Compliance Status: CM
• Connection Type: Split Bolt
• Finish: Copper
• Use With: Copper Conductors, Copper Weld Conductors
• Accommodates: Run and Tap Conductors
• ECCN: EAR99
• UNSPSC: 39121408
• Run AWG Max: 6 Sol.
• Run AWG Min: 8 Str.
• Tap AWG Max: 6 Sol.
• Tap AWG Min: 16 Str.
• Installation: Split-Bolt
• Applications: For Copper, Copperweld, Direct Burial Cables
