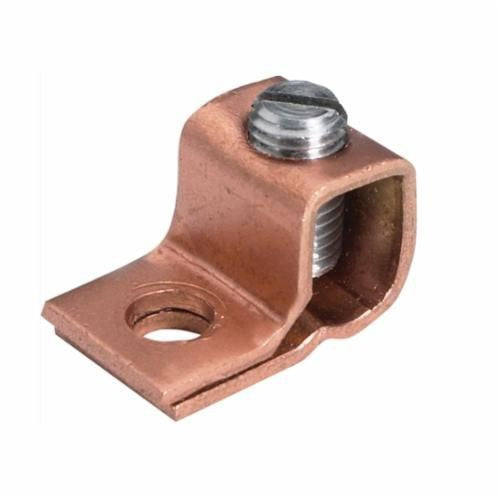

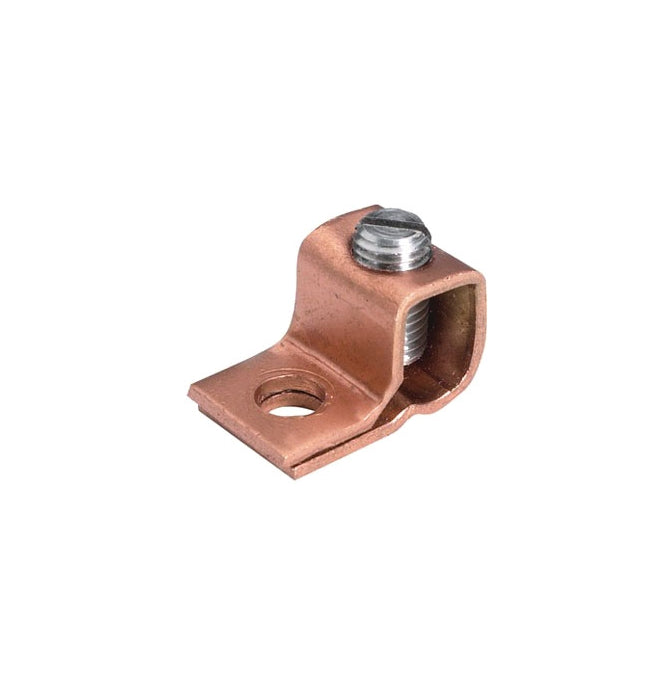

Burndy KPB4CG1 Scrulug Clip-On/Lay-In Ground Connector 10 to 4 AWG

Product Description

The BURNDY KPB4CG1 Scrulug Clip-On/Lay-In Ground Connector accommodates 10 to 4 AWG copper conductors. Designed for direct burial in earth or concrete, this copper alloy connector features a #10 stud and one bolt hole. It is suitable where continuous conductor runs are preferable. The connector is RoHS Compliant and UL467-486 Listed.

• Accommodates No 10 - 4 copper conductors
• Designed for direct burial in earth or concrete
• RoHS Compliant and UL467-486 Listed

Product Highlights

The BURNDY KPB4CG1 is a copper alloy clip-on/lay-in ground connector for 10 to 4 AWG copper conductors, featuring a #10 stud and UL listing.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer Part Number: KPB4CG1

Technical Specifications

• Material: Copper Alloy
• Number of Bolt Holes: 1
• Series: KPB
• Stud Size: NO 10
• Tongue Style: Straight
• Type: Clip-on/Lay-In
• Application: For Direct Burial in Earth or Concrete
• Standard & Approvals: RoHS Compliant, UL467-486 Listed
• Conductor Size: 10 to 4 AWG
• Conductor Type: Copper
• Part Number: KPB4CG1
• Brand: Burndy
• Manufacturer Part Number: KPB4CG1
• Manufacturer: Burndy
• Family Series: Burndy Grounding
• Description: CU LAY-IN MECH 10-4 DB
• Number of Conductors: 1
• Direct Burial: Yes
• Approvals: UL
