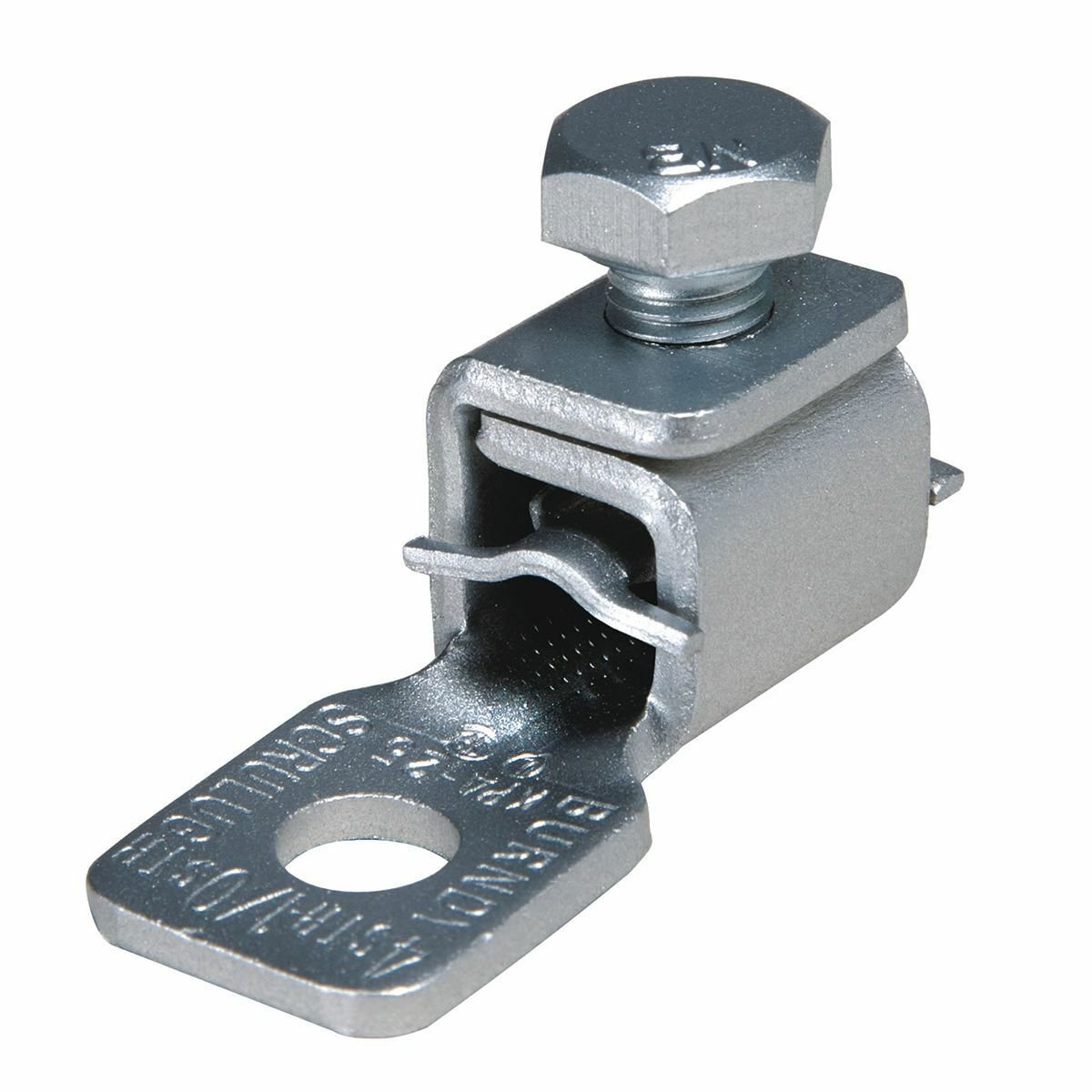

Burndy KPA8C Copper Terminal 1 Hole 14 AWG (Sol)-8 AWG (Str) .10 Stud 1 Screw

Product Description

The Burndy KPA8C is a copper terminal designed to connect a range of copper cables to equipment pads or terminal blocks. This product features one hole designed for cables ranging from fourteen AWG solid to eight AWG stranded. The terminal is made with high copper alloy that is tin-plated for improved conductivity and durability.

• High copper alloy for effective conductivity.
• Designed for joining various copper cable sizes.
• UL approved for safe electrical connections.

Product Highlights

This terminal lug is especially suitable for light industrial applications, providing reliable connections.

Product Information

Standard Information

• Brand: Burndy
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Catalog Number: KPA8C
• Material: Copper
• Country of Origin: United States
• Application: For joining a wide range of copper cable to equipment pads or terminal blocks
• Dimensions: Length 0.95 inches, Height 0.72 inches
• Stud/Bolt Hole Size: #10
• Installation Torque: 35 in-lb
• Standard: UL 486A-486B
