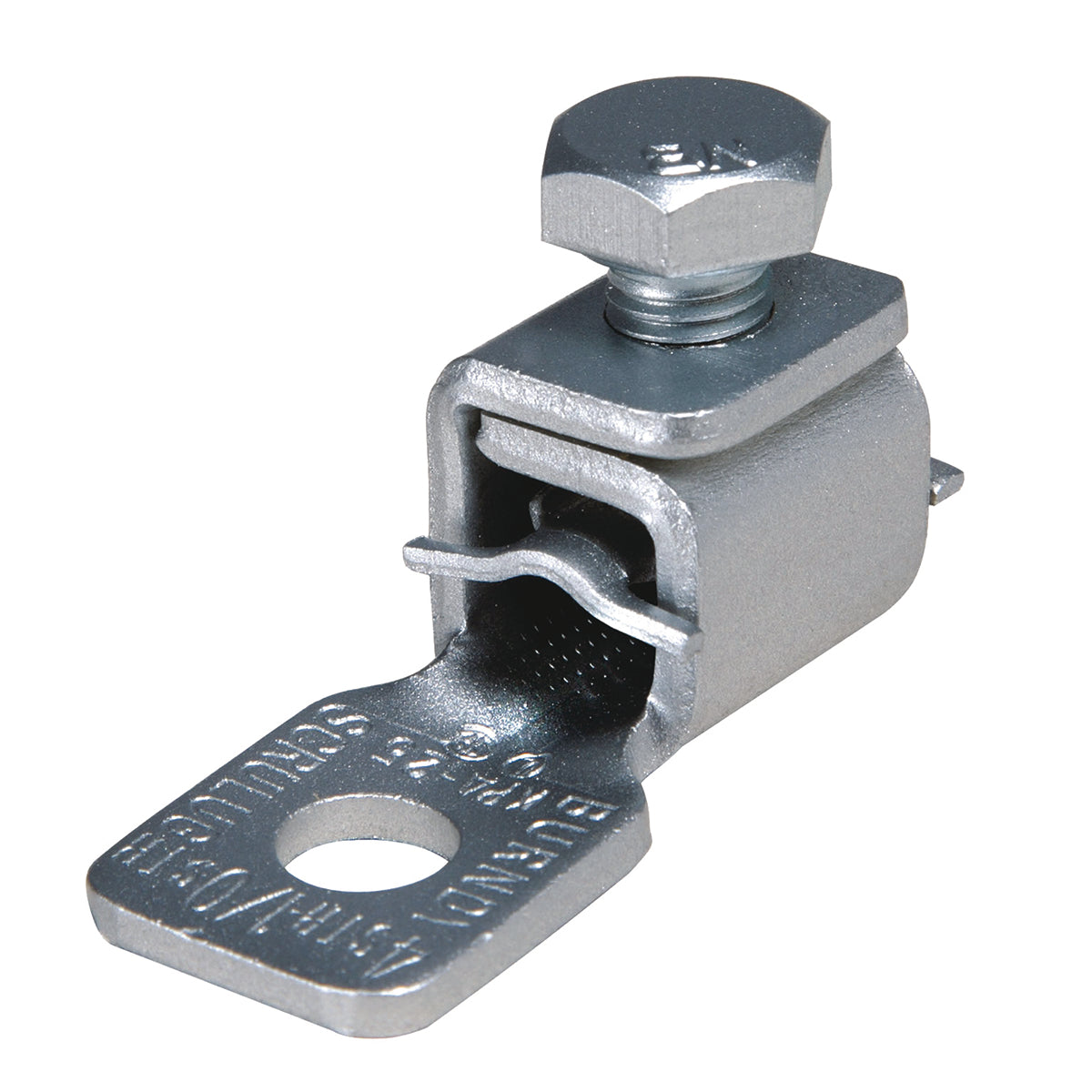

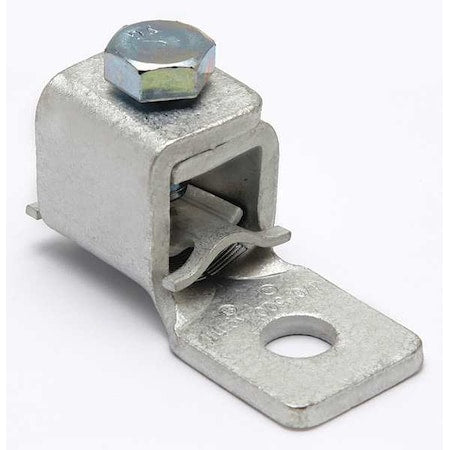

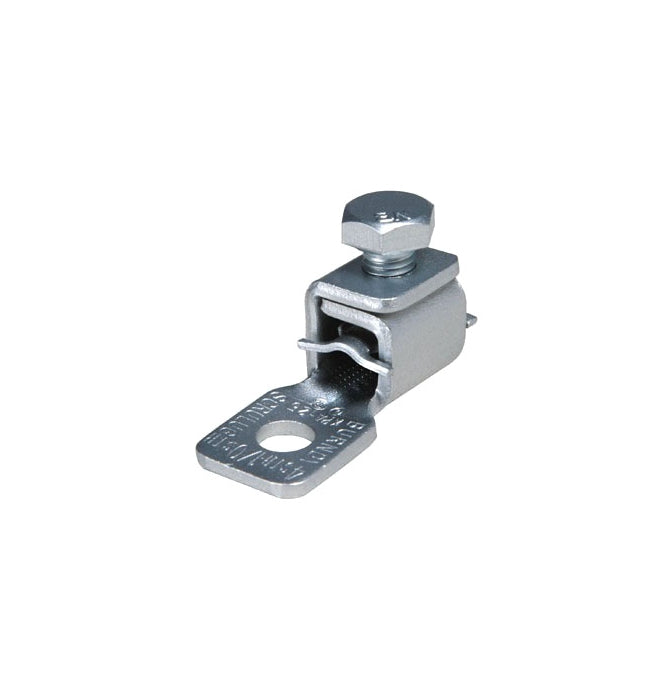

Burndy KPA34 Copper Terminal, 4/0 AWG (Str)-500 kcmil, 1/2 inches Stud

Product Description

The BURNDY KPA34 is a copper terminal designed for joining a wide range of cable to equipment pads or terminal blocks. This tin-plated terminal is suitable for light industrial applications. The tongue and body feature a one-piece design with a pressure bar that equalizes pressure over the conductor, preventing the screw from cutting into the cable.

• Constructed from high copper alloy with tin plating
• Features a one-piece design for the tongue and body
• Pressure bar equalizes pressure and prevents cable damage

Product Highlights

This copper terminal is ideal for connecting cables to equipment pads or terminal blocks in light industrial settings.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer Part Number: KPA34
• Country of Origin: USA

Technical Specifications

• Brand: BURNDY
• MPN: KPA34
• Type: Bolted, Heavy Duty, Compact
• Width: 1.38 in
• Finish: Tin Plated
• Height: 2.44 Inch
• Length: 3.32 Inch
• Plated?: Yes
• Voltage: 600 Volt
• Material: Tin Plated Copper Alloy
• Bolt Size: 5/8 in
• Hole Size: 0.54 in
• Pad Width: 1.38 in
• Stud Size: 1/2 in
• Sub Brand: Scrulug™
• Thickness: 1/5 in
• Screw Type: Hex Head
• Applications: For Joining a Wide Range of Cable to Equipment Pads or Terminal Blocks, Especially Good in Light Industrial Applications
• Plating Type: Tin
• Conductor Size: 4/0 AWG-500 KCMIL
• Conductor Type: CU C Str-Size
• Direct Burial?: No
• Overall Length: 3.32 in
• Connection Type: Pressure Bar
• Number of Holes: 1 Hole
• Number of Screws: 1
• Country of Origin: USA
• Mounting Hole Size: 0.54 in
• Temperature Rating: 194 degrees F
• Buy American Compliant: Y
• CSA: No
• Catalog Number: KPA34
• Made in USA: Yes
• Special Features: One Piece Design, Pressure Bar
• Standard: UL 486A-486B
• Item Type: Bolted Lugs & Terminals
• Minimum Conductor Size: 4/0 AWG Stranded
• Maximum Conductor Size: 500 KCMIL Stranded
• Conductor Material: Copper
• Pad Type: Equipment
• Number of Pad Holes: 1
• Pad Size: 1.38 Inch L x 1.38 Inch W x 0.2 Inch Thk
• Approval: UL 468-A, UL 468-B, CSA
• RoHS Compatible: True
• Installation Torque: 375 Lb-Inch
• Trade Name: SCRULUG
• Manufacturer: BURNDY
• EU RoHS Indicator: Yes
• FV_Trade Name: SCRULUG
• Dimension - N inch: 0.75 in
• Dimension - Hole Size inch: 0.54 in
• Dimension - Pad Width inch: 1.38 in
• Installation Torque Recommende: 375
• Physical Attribute - Screw Typ: Hexagonal Bolt
• Standards - Industry Standards: UL 486A-486B
• Item: Mechanical Connector
• Torque: 375 in-lb
• Standards: CSA Certified, UL Listed
• Head Style: Hex
• Hole Spacing: Not Applicable
• Tongue Width: 1.5 in
• Body Material: Copper
• For Stud Size: 1/2 in
• For Wire Size: 300 kcmil, 350 kcmil, 4/0 AWG, 400 kcmil, 450 kcmil, 500 kcmil
• Overall Depth: 1 3/8 in
• Overall Width: 2.44 in
• Tongue Length: 1.38 in
• Connector Type: Terminal
• Contact Finish: Tin
• Maximum Voltage: 600 V
• Number of Pieces: 1
• Tongue Thickness: 0.2 in
• Wire Size Ranges: 4/0 AWG - 500 kcmil
• No. of Conductors: 1
• Max. Conductor Size: 500 kcmil Stranded
• Min. Conductor Size: 4/0 AWG Stranded
• Number of Conductors: 1
• Connection Orientation: Compact
• For Conductor Material: Copper
• Number of Terminations: 1
• Length (Straight Wireway): 3.14 in
• Compatible with Product Type: Cable
• Maximum Operating Temperature: 194 Degrees F
• Country of Origin (subject to change): United States
• For Stranded Copper Wire Size - Maximum: 500 kcmil
• For Stranded Copper Wire Size - Minimum: 4/0 AWG
• Physical Attribute - Number of Holes: 1
• Physical Attribute - Number of Screws: 1
• Conductor - Copper Str Size: 4/0 AWG;250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil
• Conductor - Copper Str Size Range: 4/0 AWG-500 kcmil
• Certification - CSA Approved: Yes
• Certification - cULus: No
• Certification - ETL: No
• Certification - UL Listed Direct Burial: No
• Certification - UL Recognized: No
• Industry Standard(s): UL 486A-486B
• Standards - Industry Standards Met: UL 486A-486B
• UL Listed: Yes
• Series: KPA
• Specifications: Hex Socket, 375 in-lb Installation Torque
• Tongue Size: 1.5 in W x 0.2 in THK
• Tongue Type: Straight
• Condition: New
• Dimension - Height mm: 62 mm
• Dimension - Hole Size mm: 14 mm
• ARRA Compliant: C
