Burndy KPA28 KPA28 4/0str Cu 1hl Term Lug 4/0 AWG

Product Description

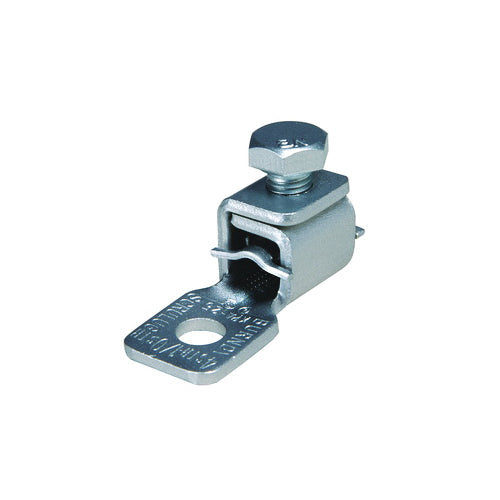

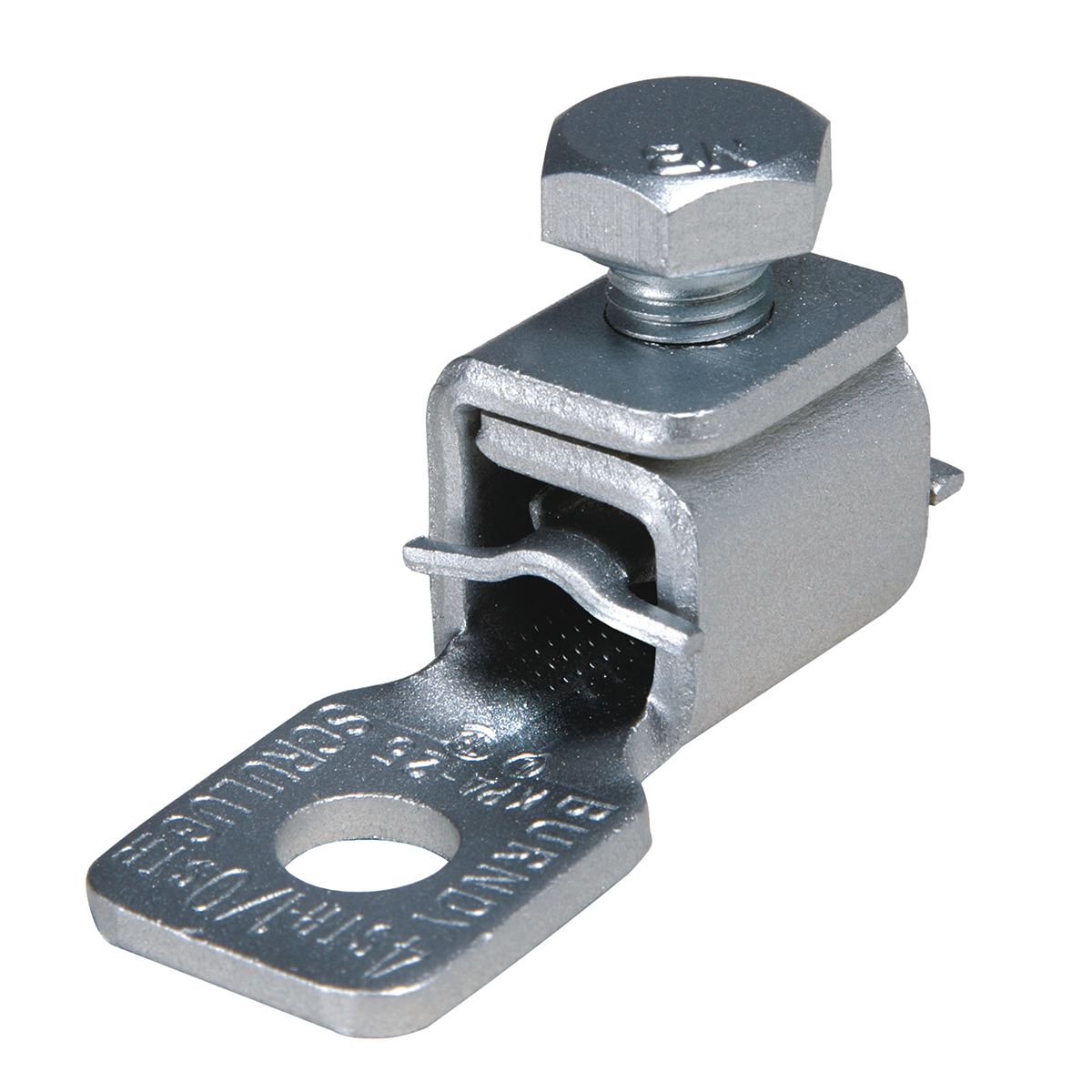

The BURNDY KPA28 is a copper terminal with pressure bar, designed with 1 hole and is tin plated. This terminal is suitable for 1/0-4/0 AWG Str cables and features a 3/8" stud. It is designed for joining a wide range of cable to equipment pads or terminal blocks.

• High copper alloy tin-plated terminal for joining a wide range of cable
• Tongue and body are 1-piece design
• Pressure bar equalizes pressure over the conductor and prevents the screw from cutting into the cable

Product Highlights

The BURNDY KPA28 terminal ensures secure connections in electrical applications, especially in light industrial settings.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer Part Number: KPA28
• Country of Origin: US

Technical Specifications

• IGCC: 4541
• Type: Bolted Lugs & Terminals
• Vendor: 181000
• Material: Copper
• Standard: UL 486A-486B
• UL Listed: Yes
• Application: For Joining A Wide Range Of Cable To Equipment Pads Or Terminal Blocks; Especial
• Family group: CONNECTORS
• Manufacturer: BURNDY
• Product Name: KPA28; Pressure Bar Style Copper Lug; 1/0-4/0 AWG Str; 1-Hole; 3/8IN Stud; 1 Scr
• Product Type: TERMINAL
• Special Features: Features: High Copper Alloy Tin-Plated Terminal For Joining A Wide Range Of Cabl
• WES Product code: 2830219001
• EU RoHS Indicator: Yes
• Description - Long: Copper Terminal; 1 Hole; 1/0-4/0 AWG (Str); 3/8IN Stud; 1 Screw; Tin Plated.
• Description - Short: Copper Terminal; 1 Hole; 1/0-4/0 AWG (Str); 3/8IN Stud; 1 Screw; Tin Plated
• Description - Slang: SCRULUG KPA
• Certification - cULus: No
• Dimension - Hole Size mm: 10 mm
• Dimension - Stud Size inch: 3/8
• Dimension - Height fraction: 1-21/32 in
• Certification - CSA Approved: Yes
• Certification - UL Recognized: No
• Certification - UL Listed Dire: No
• Dimension - Bolt Size fraction: 3/8
• Dimension - L Length Overall m: 61 mm
• Dimension - Length Overall inc: 2.40 in
• Physical Attribute - Number of: 1
• Physical Attribute - Screw Typ: Hexagonal Bolt
• Standards - Industry Standards: UL 486A-486B
• Standards - RoHS Compliance St: CM
• Connector Type: Pressure Bar
• Installation Torque Recommended in-lb: 250
• Plated: Y
• Plating Type: Tin
• Sub Brand: SCRULUG
• Trade Name: SCRULUG
• UPC: 781810355909
• UPC 14 Digit GTIN: 00781810355909
• Dimension - D inch: 1.12 in
• Dimension - Height inch: 1.66 in
• Dimension - Height mm: 42.2 mm
• Dimension - Hole Size inch: 0.39 in
• Dimension - N inch: 0.53 in
• Dimension - Pad Width inch: 0.97 in
• Conductor - Copper Str Navy Size: 125 (61) Navy;150 (61) Navy
• Conductor - Copper Str Navy Size Range: 125 (61) Navy-150 (61) Navy
• Conductor - Copper Str Size: 1/0 ;2/0 AWG;3/0 AWG;4/0 AWG
• Conductor - Copper Str Size Range: 1/0 -4/0 AWG
• Conductor Size: 1/0-4/0 AWG
• Conductor Type: CU C Str-Size CU C Navy-Size
• Industry Standard(s): UL 486A-486B
• Standards - Industry Standards Met: UL 486A-486B
• Standards - RoHS Compliance Status: CM
• Brand Name: SCRULUG, Type KPA
• UNSPSC: 39121405
• Commodity Code: 64120
• 1-Piece: 1-Piece
• Approval: UL 468-A, UL 468-B, CSA
• Conductor Material: Copper
• Maximum Conductor Size: 4/0 AWG Stranded
• Minimum Conductor Size: 1/0 AWG Stranded
• Number of Pad Holes: 1
• Overall Length: 2.4 Inch
• Pad Size: 1.12 Inch L x 0.97 Inch W x 0.13 Inch Thk
• Pad Type: Equipment
• Screw Type: Hex Head
• Additional Info: RoHS Compatible; Installation Torque 250 Lb-Inch
• Series: KPA
• Specifications: Hex Head, 250 in-lb Installation Torque
• Standards: CSA Certified, RoHS Compliant, UL listed
• Tongue Size: 1 in W x 0.13 in THK
• Tongue Type: Straight
• UNSPSC 11: 78181035590
• UNSPSC 12: 781810355909
• Width: 0.97 in
• Mounting: 1-Hole
• Allowable Gauge Range: 1/0 - 4/0
• Country of Origin: United States
