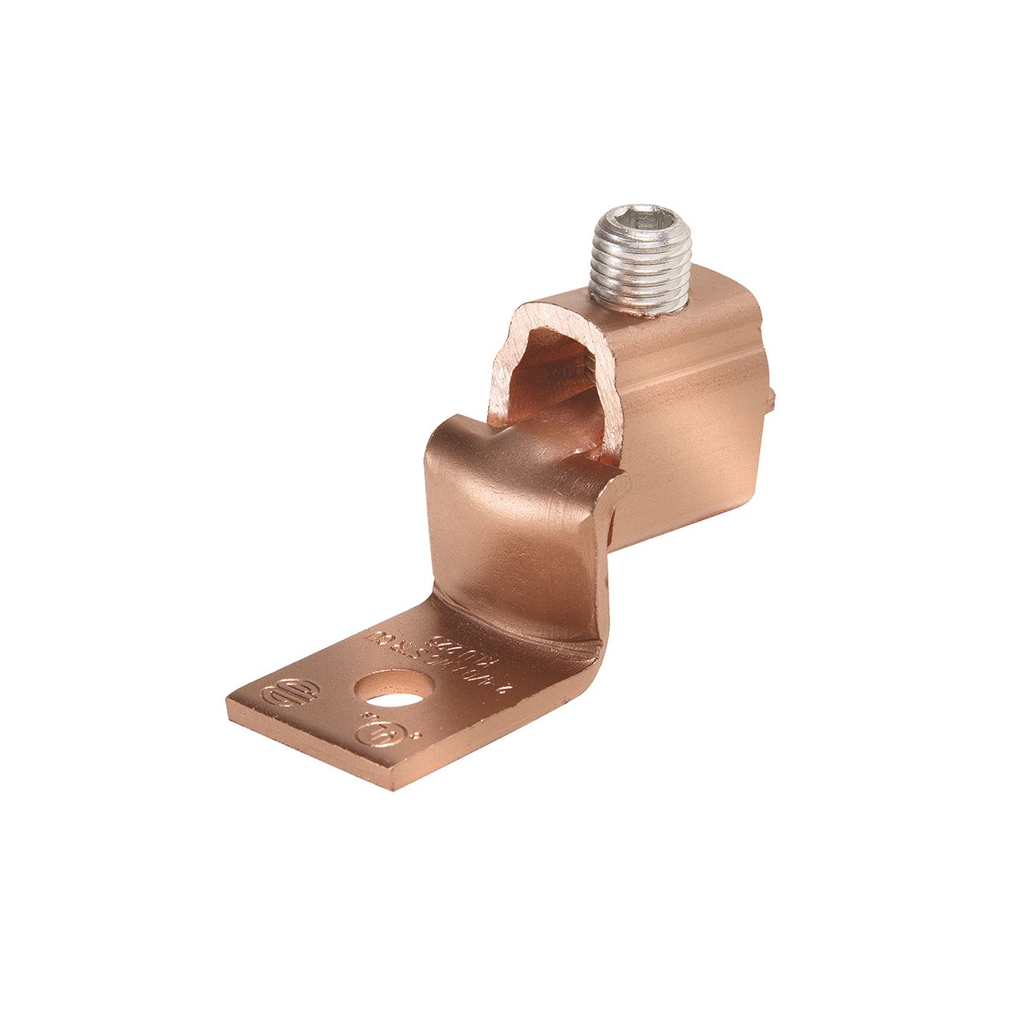

Burndy KLU225 Copper Terminal, Offset Tongue, 1 Hole, 2-4/0 AWG (Str), 5/16 inches Stud, 1 Screw

Product Description

The BURNDY KLU225 is a copper terminal with an offset tongue, designed with 1 hole for connecting 2-4/0 AWG (Str) cables to a 5/16" stud using a single screw. It is made from high conductivity copper alloy and features a compact design for easy installation. This terminal is suitable for joining a wide range of copper cables to equipment pads or bars.

• Range-taking design reduces the number of SKUs required in inventory.
• Constructed from high conductivity copper alloy for long-lasting reliable contact.
• Compact design allows for easy installation.

Product Highlights

High conductivity copper alloy terminal with offset tongue for connecting cable to equipment pads or bars. Easy to install with a screwdriver or wrench and is reusable.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer Part Number: KLU225
• Country of Origin: India

Technical Specifications

• Catalog Number: KLU225
• Brand: Burndy
• Manufacturer: Burndy
• CSA: No
• Type: KLU, Offset Tongue
• Width: 0.99 in
• Finish: Copper
• Height: 1.02 Inch
• Length: 2.55 Inch
• Plated?: No
• Material: Copper
• Bolt Size: 7/16 in
• Hole Size: 0.34 in
• Pad Width: 0.99 in
• Stud Size: 5/16 in
• Sub Brand: Scrulug™
• Screw Type: Allen
• Applications: For Joining a Wide Range of Copper Cable to Equipment Pads or Bar
• Plating Type: Unplated
• Conductor Size: 2-4/0 AWG
• Conductor Type: CU C Str-Size
• Direct Burial?: No
• Overall Length: 2.55 in
• Connection Type: Pressure Bar
• Country of Origin: India
• Mounting Hole Size: 5/16 in
• Standard: UL467
