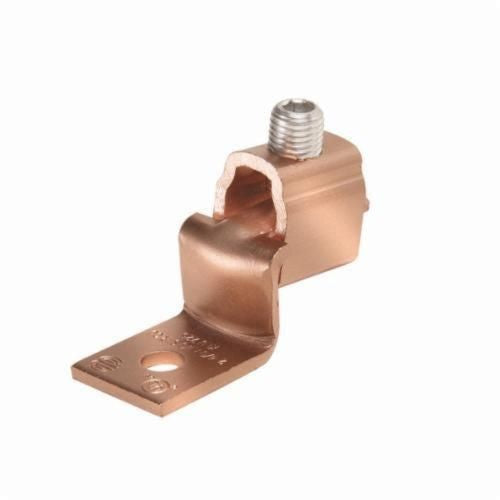

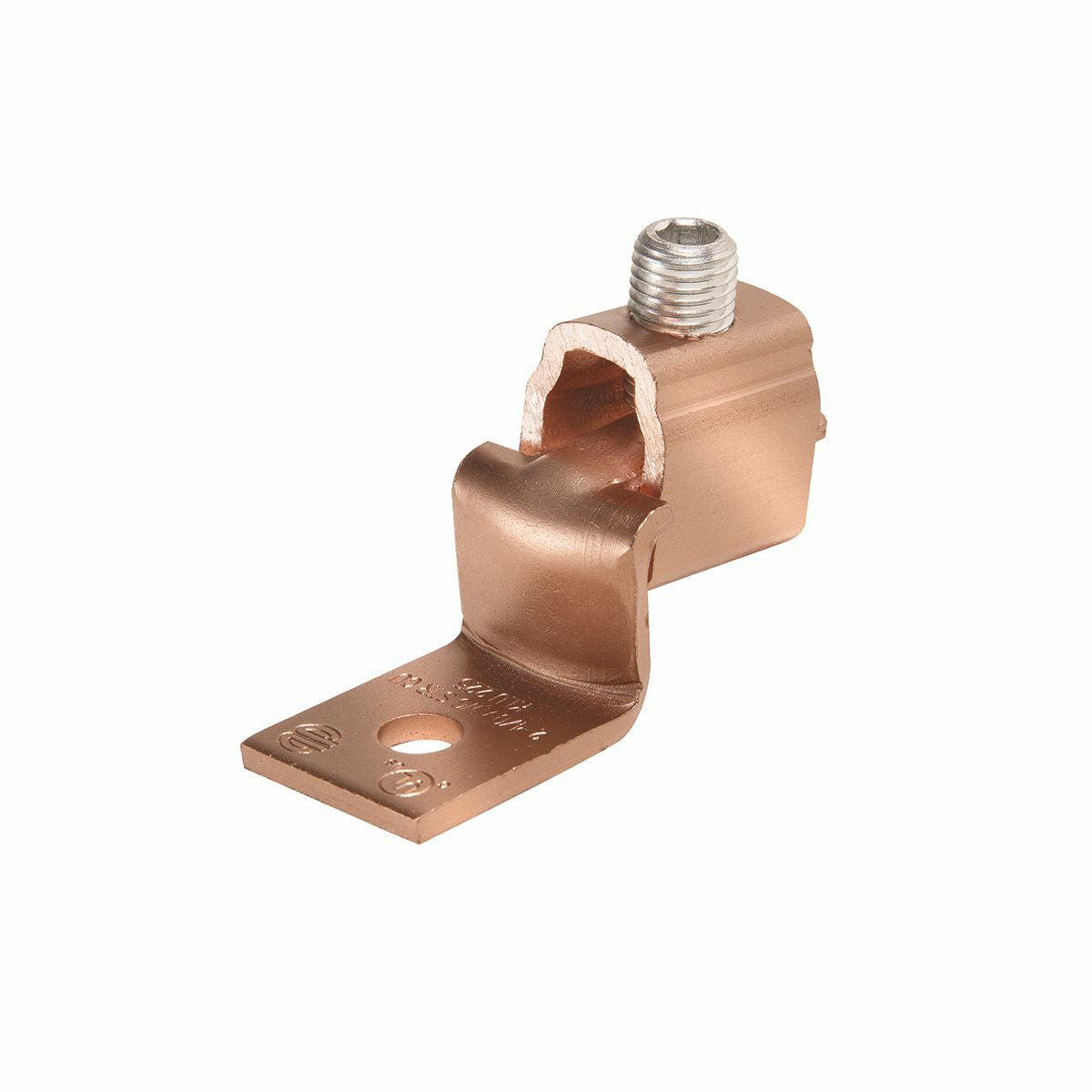

Burndy KLU175 Copper Terminal, Offset Tongue, 1 Hole, 4-3/0 AWG (Str), 3/8 inches Stud, 1 Screw

Product Description

The BURNDY KLU175 is a copper terminal with an offset tongue, designed with one hole for connecting 4-3/0 AWG (Str) conductors to a 3/8" stud using a single screw. Constructed from high conductivity copper alloy, this terminal ensures long-lasting, reliable contact. It is suitable for joining a wide range of copper cables to equipment pads or bars.

• Range-taking design reduces SKUs required in inventory
• High conductivity copper alloy for long lasting reliable contact
• Compact design, easy to install

Product Highlights

This copper terminal features a compact design and is easy to install, requiring no special tools. Its range-taking design accommodates several conductor sizes.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer Part Number: KLU175
• Country of Origin: India

Technical Specifications

• Catalog Number: KLU175
• Type: KLU, Offset Tongue
• Brand: Burndy
• Width: 0.75 in
• Finish: Copper
• Height: 0.74 Inch
• Length: 2.2 Inch
• Material: Copper
• Bolt Size: 3/8 in
• Hole Size: 0.39 in
• Pad Width: 0.75 in
• Stud Size: 3/8 in
• Sub Brand: Scrulug™
• Screw Type: Allen
• Applications: For Joining a Wide Range of Copper Cable to Equipment Pads or Bar
• Plating Type: Unplated
• Conductor Size: 4-3/0 AWG
• Conductor Type: CU C Str-Size
• Overall Length: 2.20 in
• Connection Type: Pressure Bar
• Application: For Joining A Wide Range Of Copper Cable To Equipment Pads Or Bar
• Standard: UL467
• UPC: 781810351406
• GTIN: 00781810351406
• Item Type: Bolted Lugs & Terminals
• IGCC: 4541
• Weight: 0.14
• Trade Name: SCRULUG
• Product Name: KLU175; Copper Terminal; Offset Tongue; 1 Hole; 4-3/0 AWG (Str); 3/8IN Stud; 1 S
• Product Type: TERMINAL
• Hardware Type: 3/8 UNF Socket/HexScrew
• EU RoHS Indicator: Yes
• Description - Long: Copper Terminal; Offset Tongue; 1 Hole; 4-3/0 AWG (Str); 3/8IN Stud; 1 Screw.
• Description - Short: Copper Terminal; Offset Tongue; 1 Hole; 4-3/0 AWG (Str); 3/8IN Stud; 1 Screw
• Dimension - Hole Size mm: 10 mm
• Dimension - B Length inch: 0.71 in
• Dimension - Hole Size inch: 0.39 in
• Dimension - Pad Width inch: 0.75 in
• Dimension - Strip Length inch: 1 in
• Number of Bolt Holes: 1
• Tongue Style: Offset
• Standard & Approvals: CSA Certified, cULus Listed, RoHS Complaint
• Tongue Size: 1.2 in L x 0.75 in W x 0.16 in T
