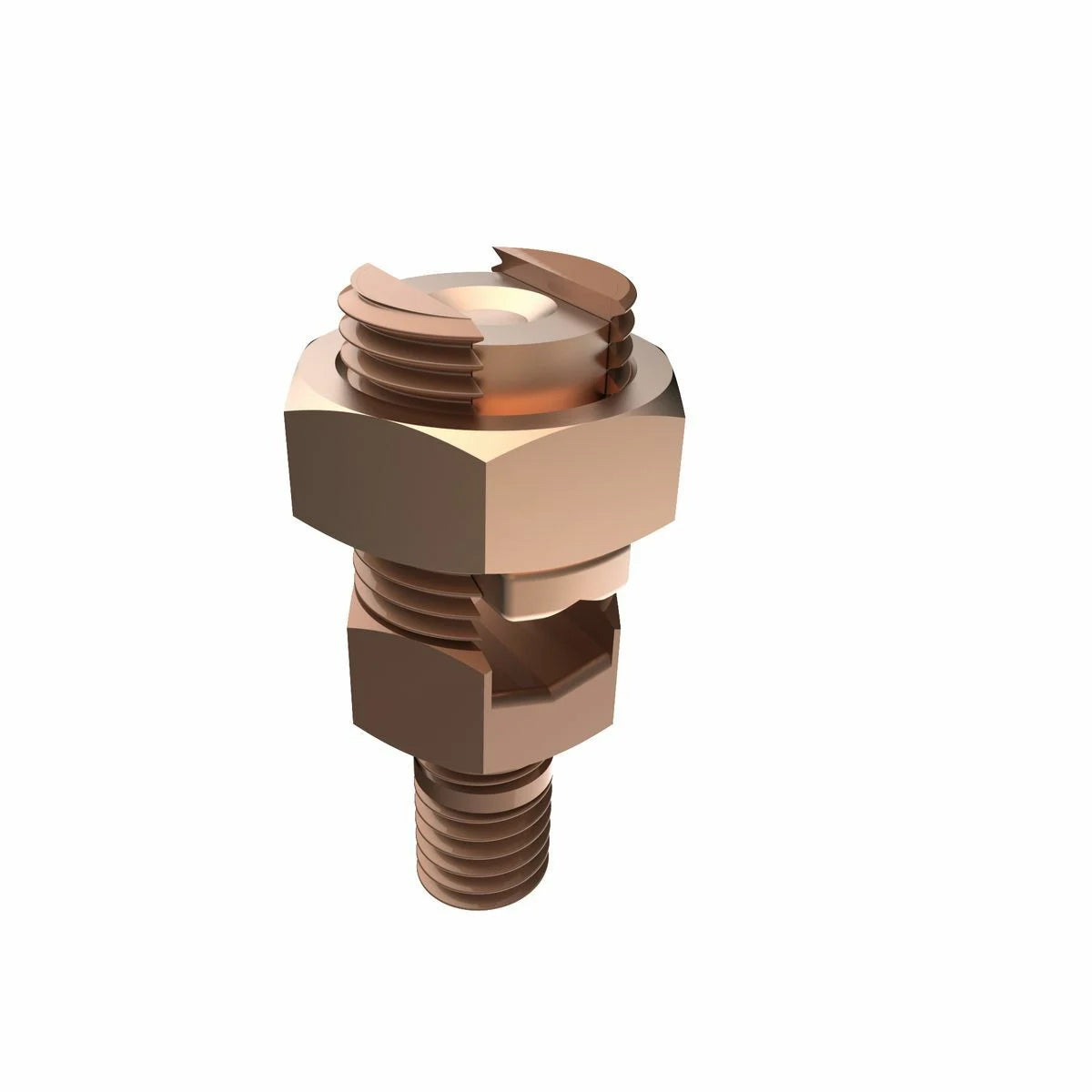

Burndy KC25 Mechanical Grounding Connector, Cable to Flat, 2-1/0 AWG (Str) / 2-2/0 AWG (Sol), Stud: 1/2

Product Description

The Burndy KC25 Mechanical Grounding Connector connects copper cables to flat surfaces. It accommodates stranded cables ranging from two AWG to one AWG or solid cables up to two AWG. This connector is suitable for various grounding applications including transformers and steel structures.

• Connects one or two copper cables to steel structures.
• Made from bronze, leaded material.
• Designed for easy installation with a one-wrench setup.

Product Highlights

This connector is robust and suitable for grounding applications in commercial settings. It stands out for its efficient installation and versatile compatibility with different conductor types.

Product Information

Standard Information

• Brand: Burndy
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Catalog Number: KC25
• Material: Bronze, Leaded
• Application: Used to ground one or two copper cables to steel structures
• Stud Size: 1/2-13
• Height: 1-7/8 inches
• Dim B: 9/16 inches
• Cross Flats: 15/16, 3/4 inches
• Standard: UL467
