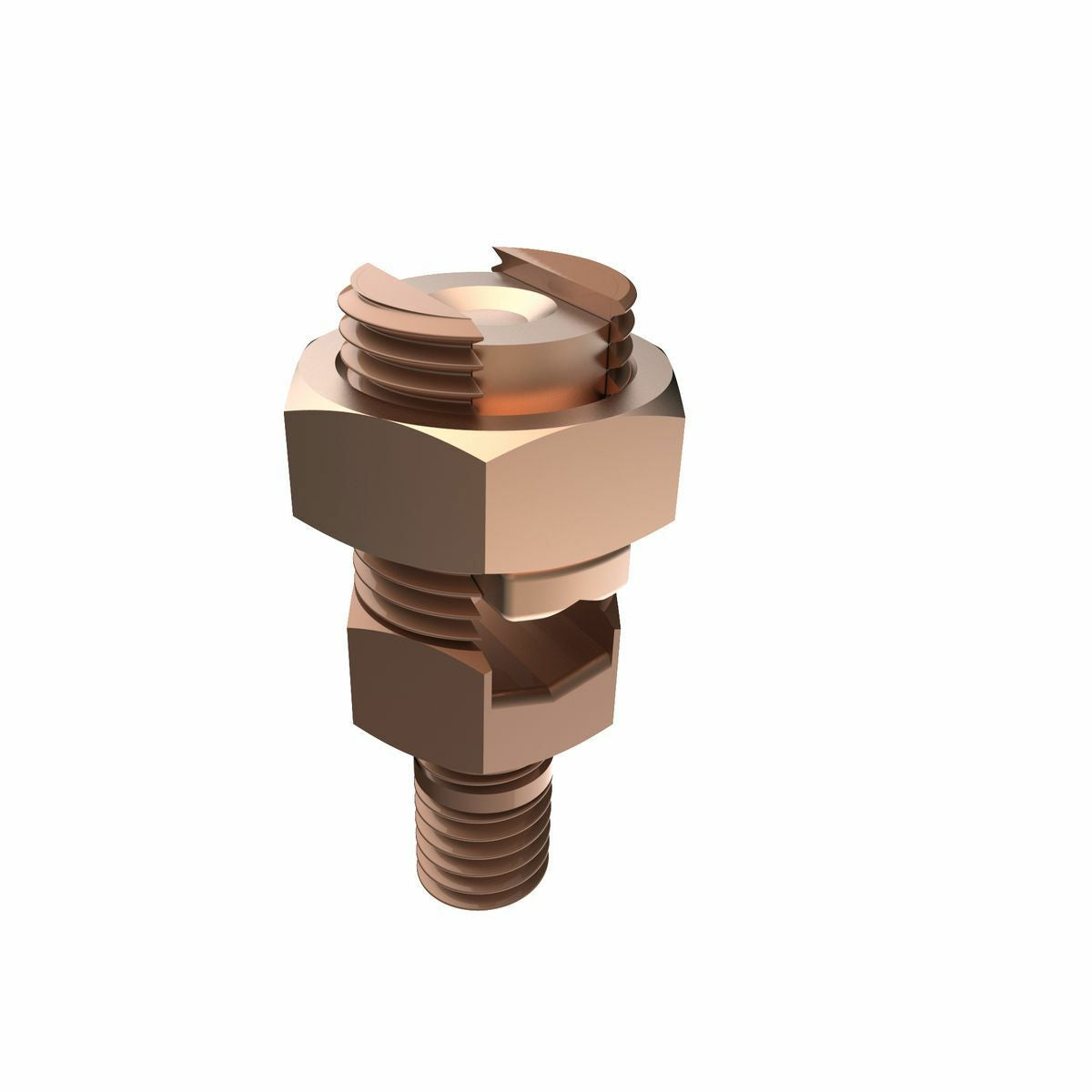

BURNDY KC23 Mechanical SERVIT POST Connector Cable to Flat 8-2 AWG Str 10-1 AWG Sol 3/8 Stud

Product Description

The BURNDY KC23 is a mechanical SERVIT POST connector designed to connect cables directly to flat surfaces. This connector supports conductor sizes of eight to two AWG stranded and ten to one AWG solid. It features a body height of one point zero five inches and a stud size of three eighth inch.

• Direct burial applications and cable grounding to flat structures
• Constructed from leaded bronze for long-lasting performance
• UL467 approved for quality assurance

Product Highlights

This product enables efficient grounding and connections in various electrical applications.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Catalog Number: KC23
• Application: For direct burial applications and to ground cables to steel structures, fence posts, and transformers
• Material: Bronze, Leaded, Commercial
• Country of Origin: United States
• Made in USA: Yes
• Special Features: One-wrench installation; compatible with commercial stranded and solid copper conductors; available for one conductor
• UPC: 781810255353
• Standard: UL467
