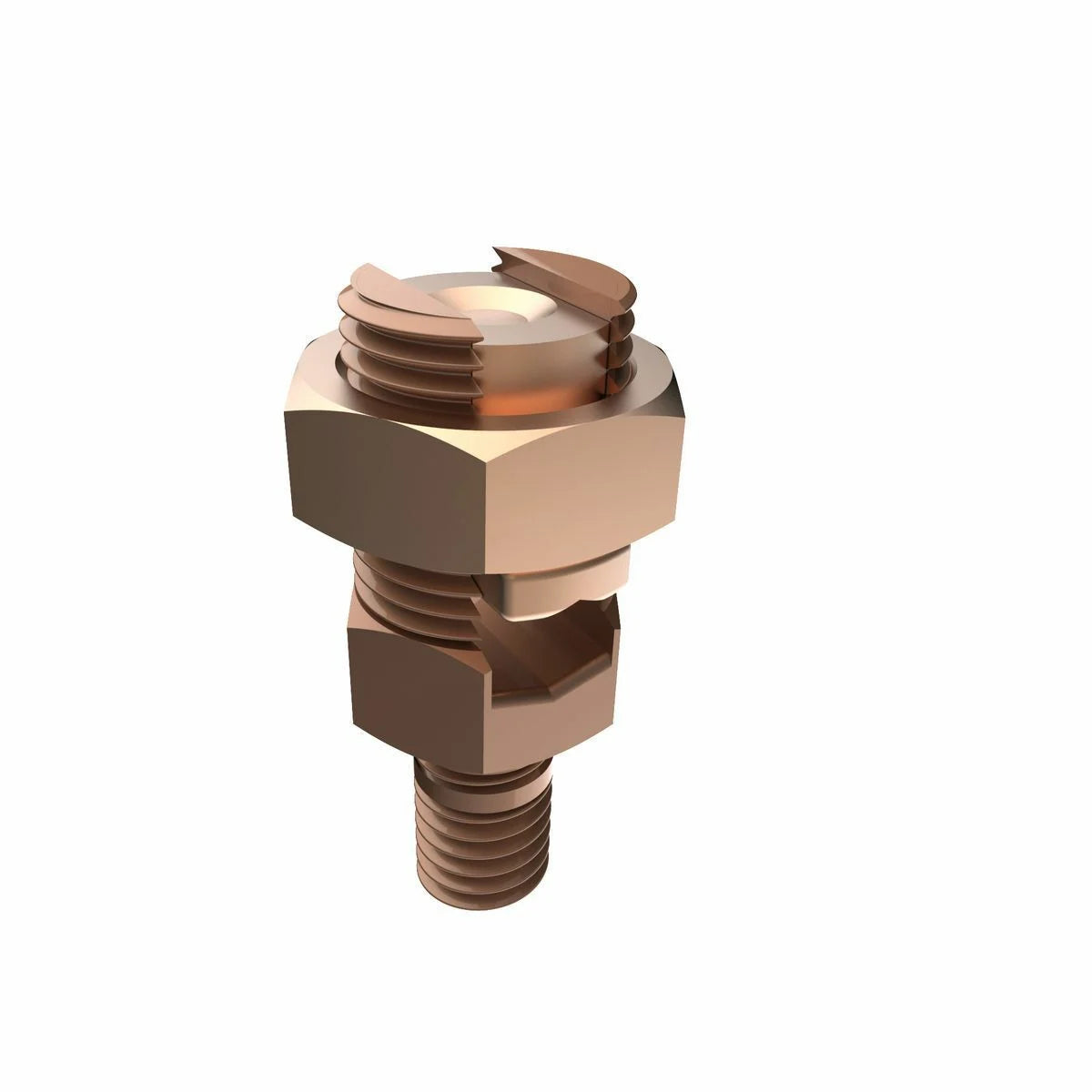

BURNDY KC22B1 Mechanical Grounding Connector, Cable to Flat, 10 - 3 AWG (Str) / 10 - 2 AWG (Sol), 3/8 Stud; Nut Torque: 275 in-lbs; Stud Torque: 280 in-lbs

Product Description

The BURNDY KC22B1 is a mechanical grounding connector designed for effective grounding of one or two copper cables to flat surfaces, such as steel structures, fence posts, and transformers. This product accommodates wire sizes from ten to three AWG stranded and ten to two AWG solid copper cables.

• Accepts 10 to 3 AWG stranded and 10 to 2 AWG solid copper cable
• 3/8 inch stud with a nut torque of 275 in-lbs
• Made from durable leaded bronze alloy

Product Highlights

The connector is suitable for direct burial and provides reliable performance in both commercial and residential settings.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Catalog Number: KC22B1
• Material: Bronze, Leaded, Commercial
• Application: Grounding one or two copper cables to steel structures
• Country of Origin: United States
• UL Standard: UL467
• Stud Diameter: 3/8 Inch-16 TPI
• Height: 1-5/8 Inches
• Nut Torque: 275 in-lbs
