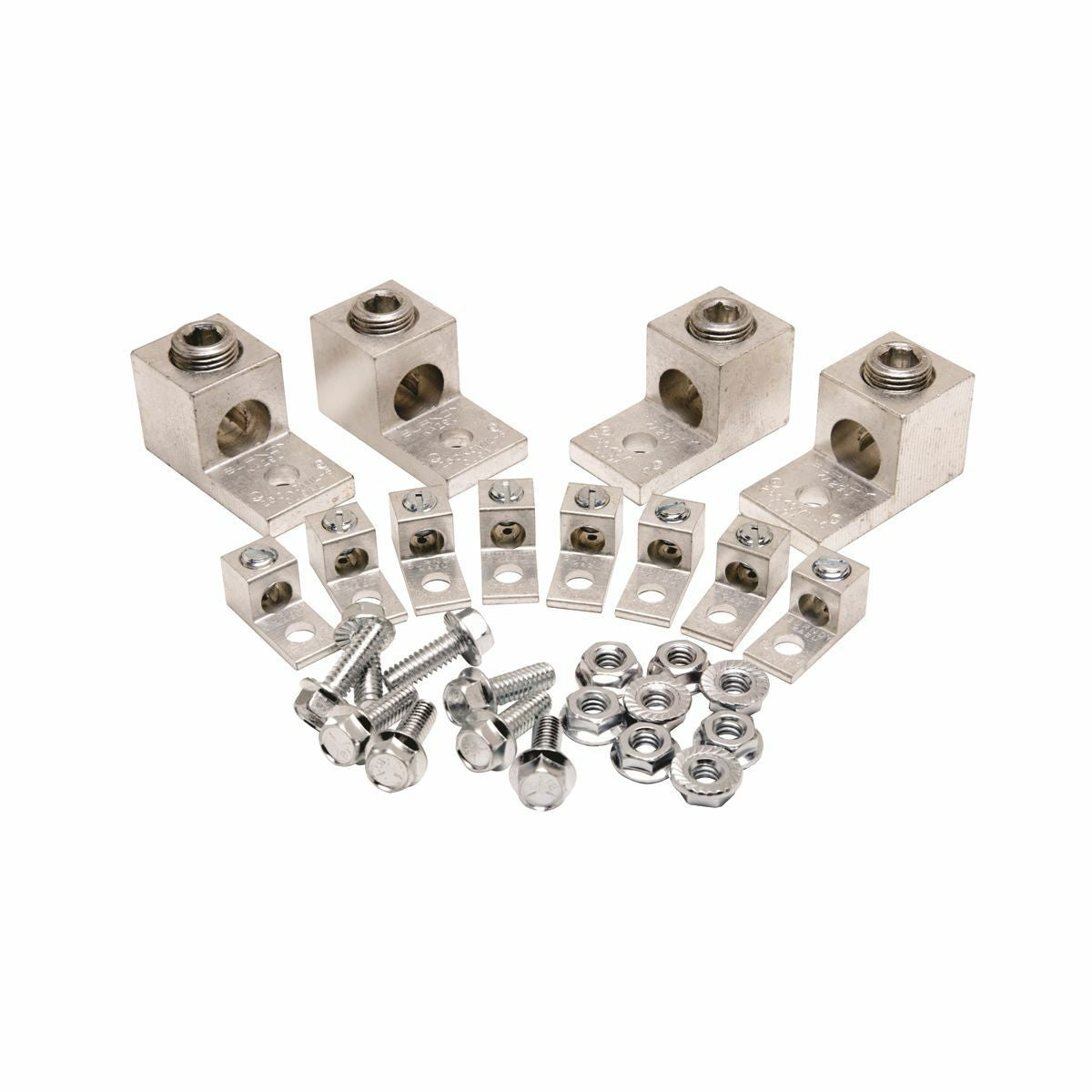

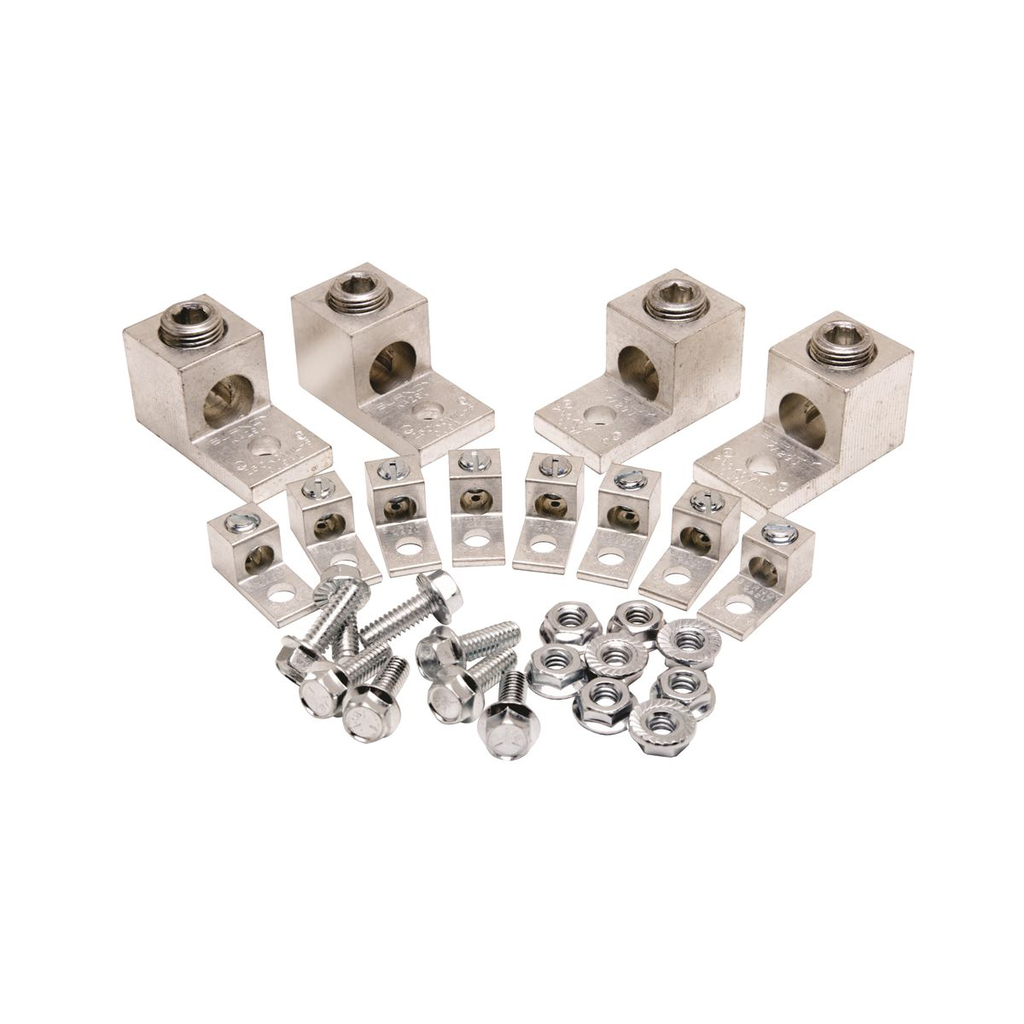

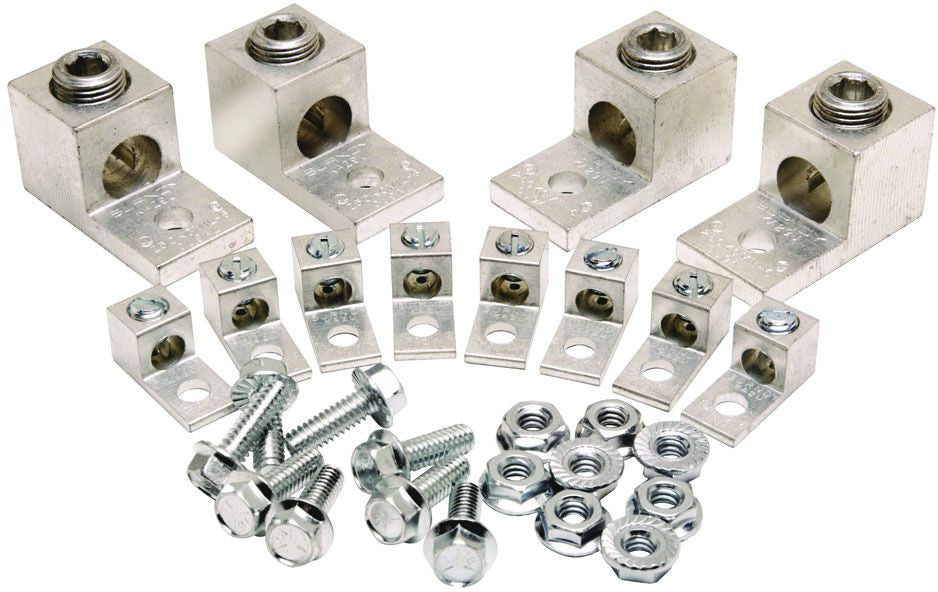

BURNDY KAUKIT2 High Strength Aluminium Alloy Transformer Lug Kit 50-112KVA

Product Description

The BURNDY KAUKIT2 is a high strength aluminum alloy transformer lug kit designed for electrical connections. Suitable for use with conductors rated from six AWG to two hundred fifty kcmil, this kit ensures low contact resistance, making it an ideal choice for electrical applications. This transformer lug kit is UL listed and CSA certified, guaranteeing reliability in high-performance scenarios.

• Includes a complete set of mounting hardware.
• Constructed from high-strength aluminum alloy.
• Features plated steel cap screws and nuts with captive washers.

Product Highlights

This kit includes dual-rated lugs and all necessary hardware for easy installation, making it suitable for both single-phase and three-phase systems.

Product Information

Standard Information

• Manufacturer: Burndy, a Hubbell affiliate
• Brand: BURNDY

Technical Specifications

• Catalog Number: KAUKIT2
• Material: Aluminum
• Application: Used to provide low contact resistance
• Country of Origin: Mexico
• UPC: 781810600122
• Transformer kVA Rating Range: 50 - 75 kVA for single phase, 75 - 112.5 kVA for three phase
• Includes: (8) 1/4-20 X 3/4 IN, (8) 1/4-20 X 2 IN hex head, (16) 1/4-20 hex head, (12) KA29U terminal, captive to nut flat washer
