BURNDY KAP750 750 KCMIL PIN ADAPTOR Torque: 450 N lb Voltage: 600 V

Product Description

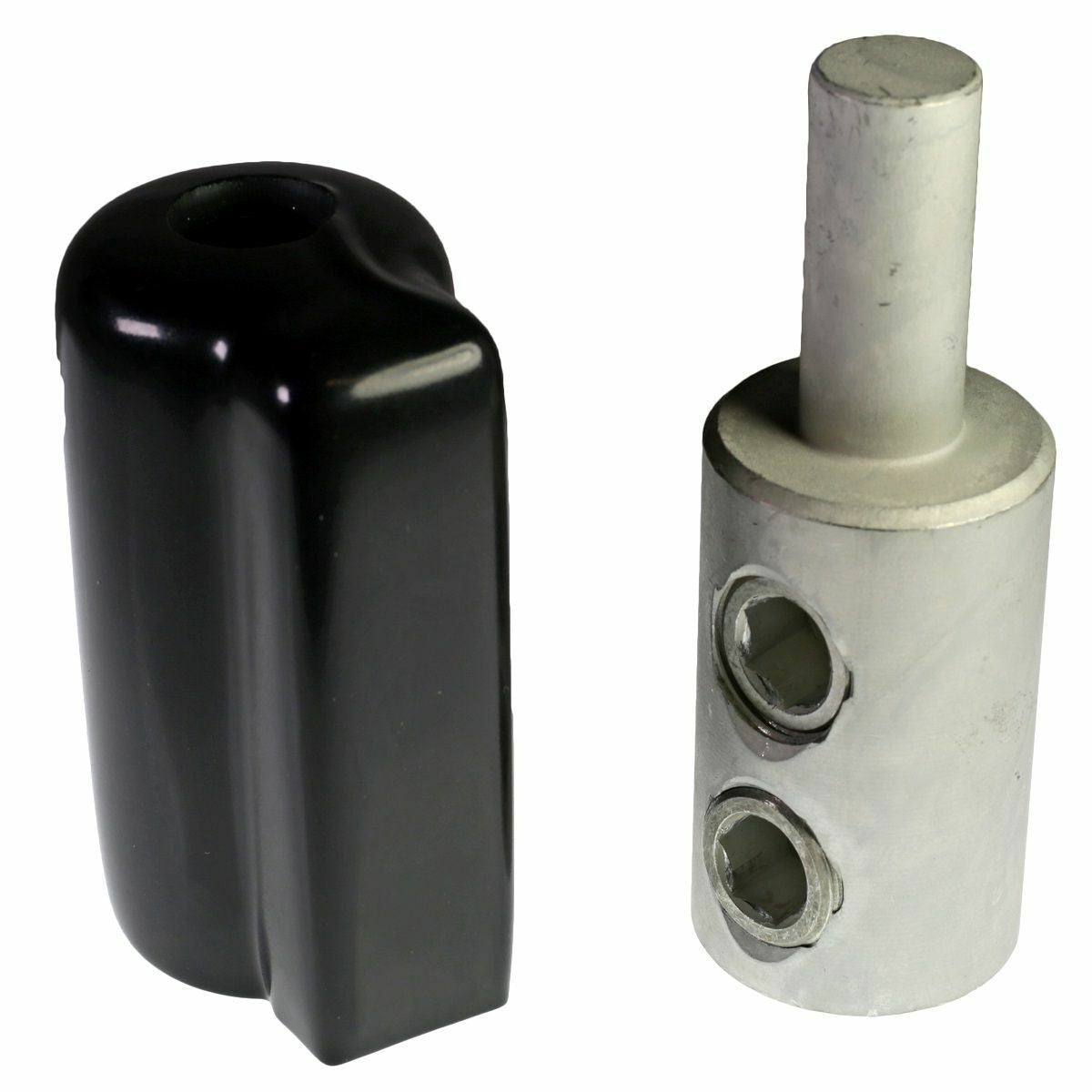

The BURNDY KAP750 is a pin adaptor designed for connecting large conductors. This connector is rated for 450 N lb torque and supports a voltage of 600 V. It is suited for use with conductors sized between 350 and 750 KCMIL.

• Torque rating of 450 N lb
• Voltage rating of 600 V
• Compatible with aluminum and copper conductors

Product Highlights

The KAP750 pin adaptor enables efficient termination of conductors in various electrical applications, including molded case circuit breakers and panel boards.

Product Information

Standard Information

• Catalog Number: KAP750
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Amperage Rating: 535 A
• Material: Aluminum
• Size: 4.46 in x 1.87 in x 2.37 in
• Application: Terminate upsized conductor into mechanical connectors
• Country of Origin: United States
• Special Features: AL9CU- UL Listed for fine strand conductor
