Product Description

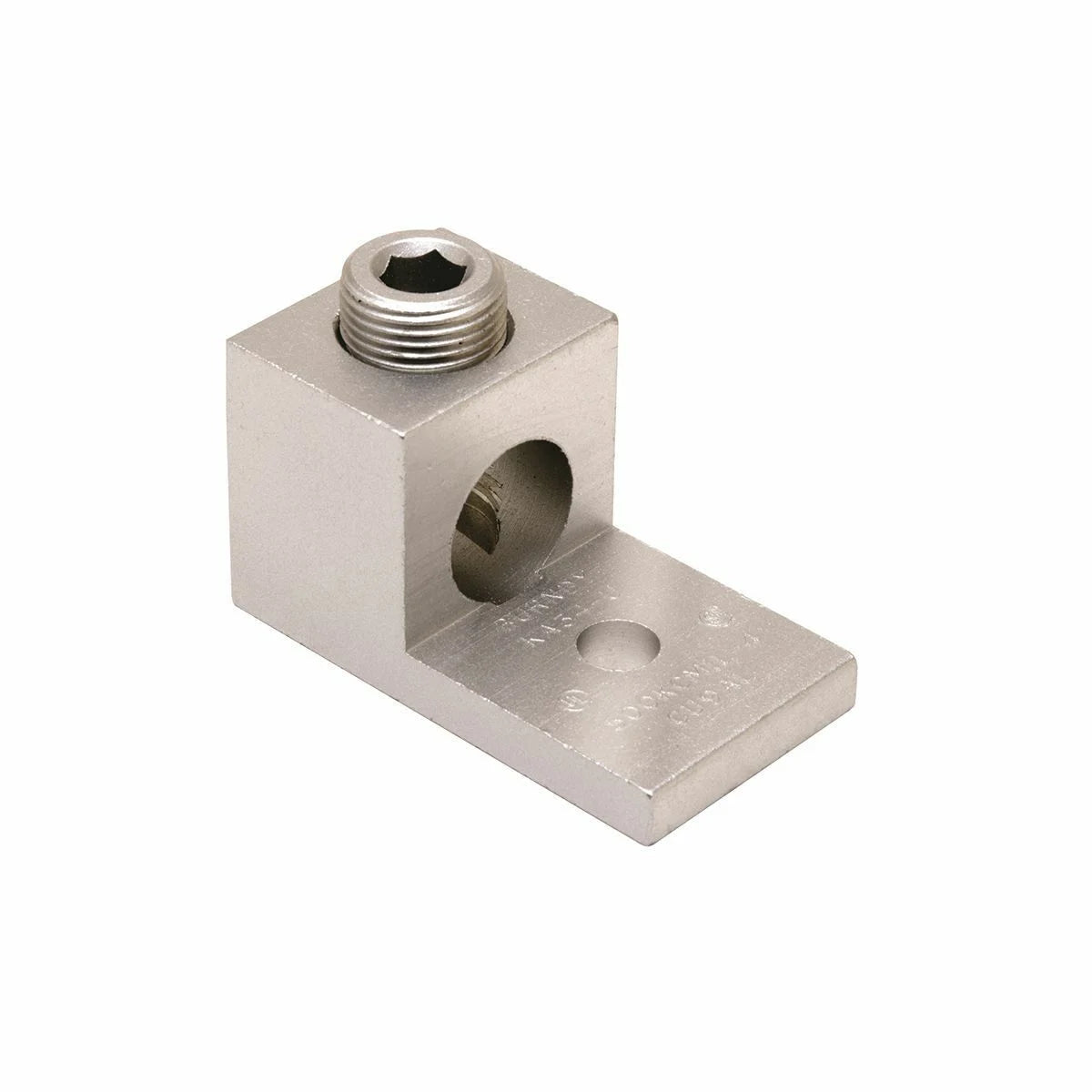

The BURNDY KA36U is an aluminum universal terminal designed for a single conductor with specifications for both copper and aluminum wires. This mechanical cable lug provides secure connections and is suitable for various applications involving 2 AWG stranded to 600 KCMIL stranded conductors.
- Constructed from high-strength aluminum alloy.
- Dual-rated for aluminum and copper conductors.
- Electro tin-plated for low contact resistance.
Product Highlights
This terminal lug features a stud size of 3/8 inches, one screw, and dimensions optimized for connectivity in electrical systems.
Product Information
Standard Information
-
Catalog Number: KA36U
-
Manufacturer: Burndy, a Hubbell affiliate
Technical Specifications
-
Material: Aluminum
-
Application: For aluminum and copper conductors
-
Number of Conductors: 1
-
Stud/Bolt Hole Size: 3/8 inches
-
Length: 3.19 inches
-
Height: 1.56 inches
-
Width: 1.5 inches
-
Installation Torque: 500 inch-pounds
