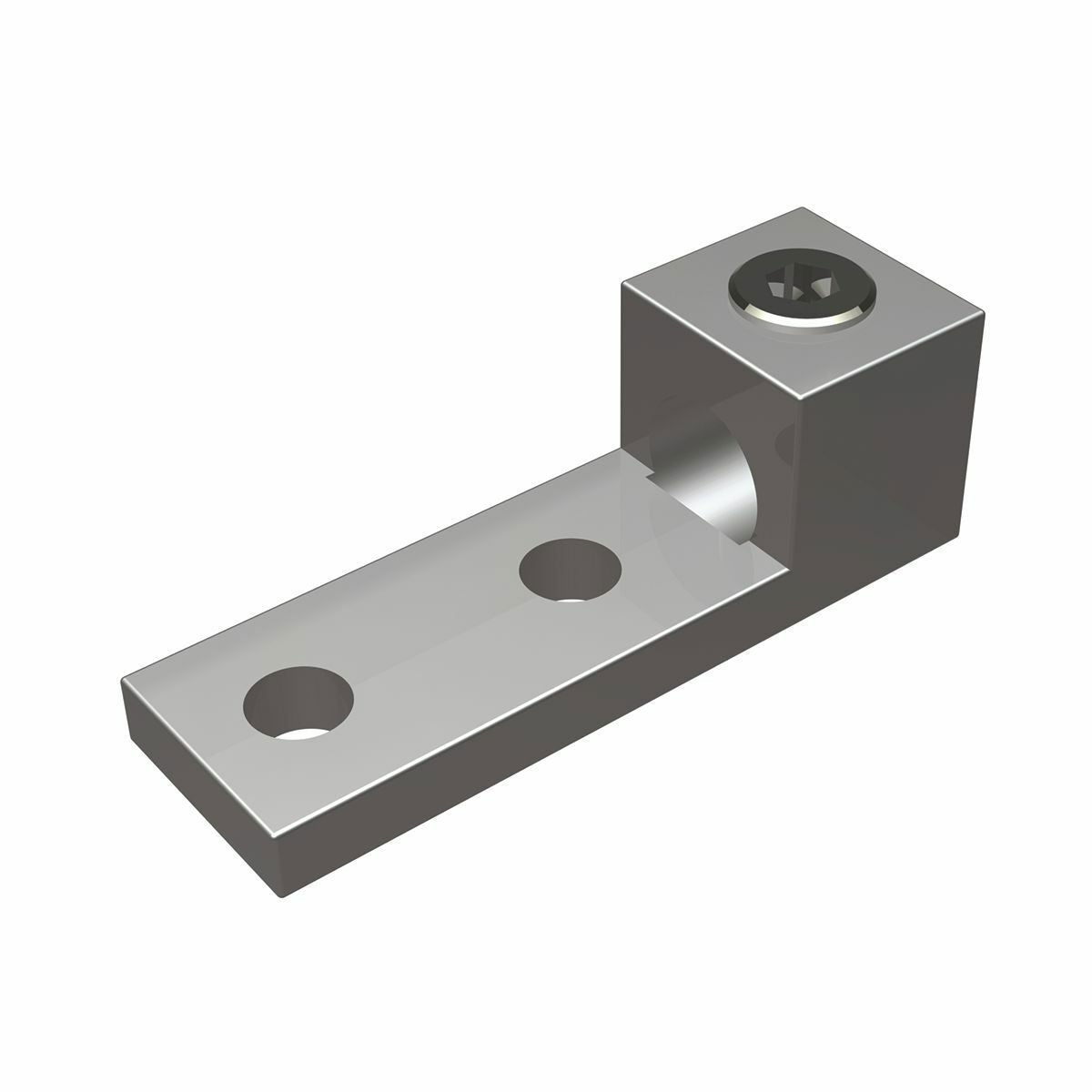

BURNDY KA36U-2N Aluminum Universal Terminal 2 AWG (Str)-600 kcmil 1/2 Stud 1.75 Stud Hole Spacing

Product Description

The BURNDY KA36U-2N is an aluminum universal terminal designed to connect aluminum and copper conductors. This terminal accommodates wire sizes from 2 AWG (Stranded) up to 600 KCMIL. It features two pad holes for easy installation and is suitable for applications involving different conductor materials. The terminal is electro-tin plated, reducing contact resistance and ensuring reliable connections.

• Supports aluminum and copper conductors
• UL 486A-486B approved
• Constructed from high strength aluminum alloy

Product Highlights

This terminal offers excellent functionality for various electrical connections. The design is robust, and it ensures secure connections in demanding environments.

Product Information

Standard Information

• Manufacturer: Burndy, a Hubbell affiliate
• Brand: BURNDY

Technical Specifications

• Catalog Number: KA36U2N
• Material: Aluminum
• Application: For Aluminum and Copper Conductors
• Temperature Rating: 194 degrees Celsius
• Special Features: Universal terminal, constructed from high strength aluminum alloy
• Standard: UL 486A-486B
• Number of Conductors: 1
• Stud Size: 1/2 inches
