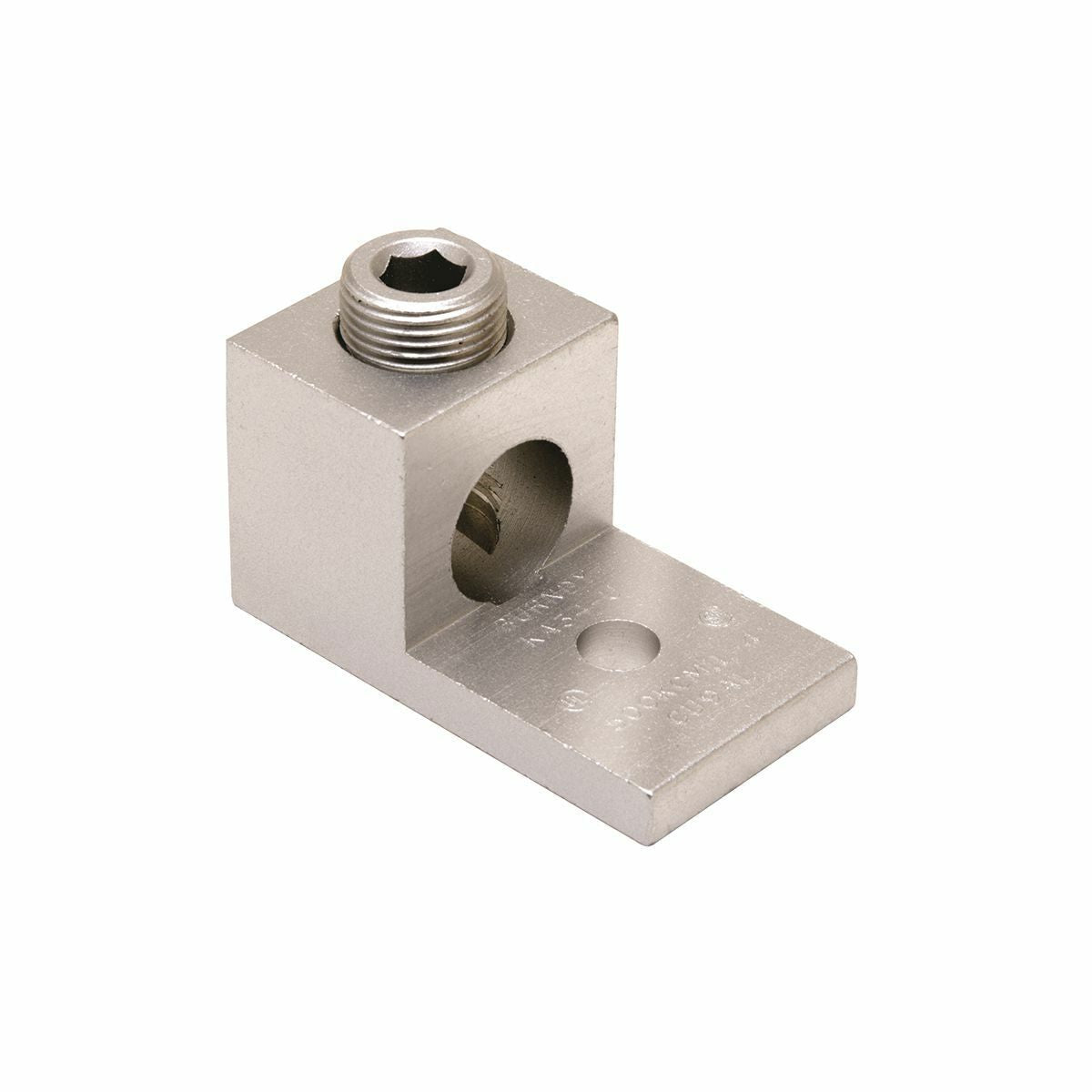

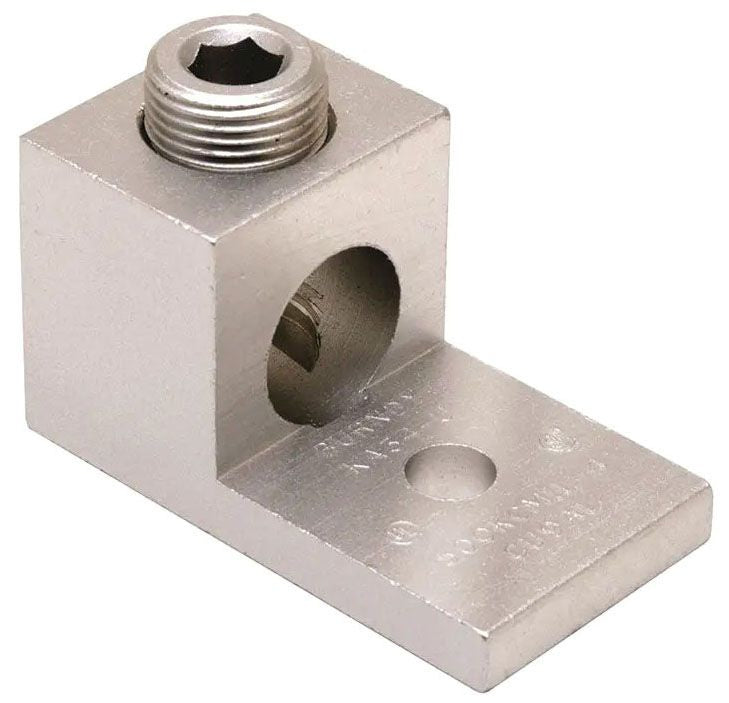

BURNDY KA34U Aluminum Universal Terminal, 1 Hole, 4 AWG (Str)-500 kcmil, 3/8 Stud, 1 Screw, Al/Cu Rated, Tin Plated

Product Description

The BURNDY KA34U is an aluminum universal terminal designed for use with both aluminum and copper conductors. This terminal is ideal for professionals needing a reliable connection in electrical installations.

• One-hole design for easy installation
• Compatible with 4 AWG to 500 kcmil conductors
• Tin-plated for enhanced corrosion resistance

Product Highlights

This terminal supports 3/8 inch stud size and includes one screw, making it suitable for a variety of applications. It features low contact resistance that ensures a durable and reliable connection.

Product Information

Standard Information

• Manufacturer: Burndy, a Hubbell affiliate
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: KA34U
• Material: Aluminum
• Application: For aluminum and copper conductors
• Temperature Rating: 194 degrees Fahrenheit
• Standard: UL 486A-486B
• Stud/Bolt Hole Size: 3/8 inches
• Number of Conductors: 1
• Dimensions: Length 2.81 inches, Width 1.51 inches, Height 1.58 inches
• Installation Torque: 500 inch-pounds
