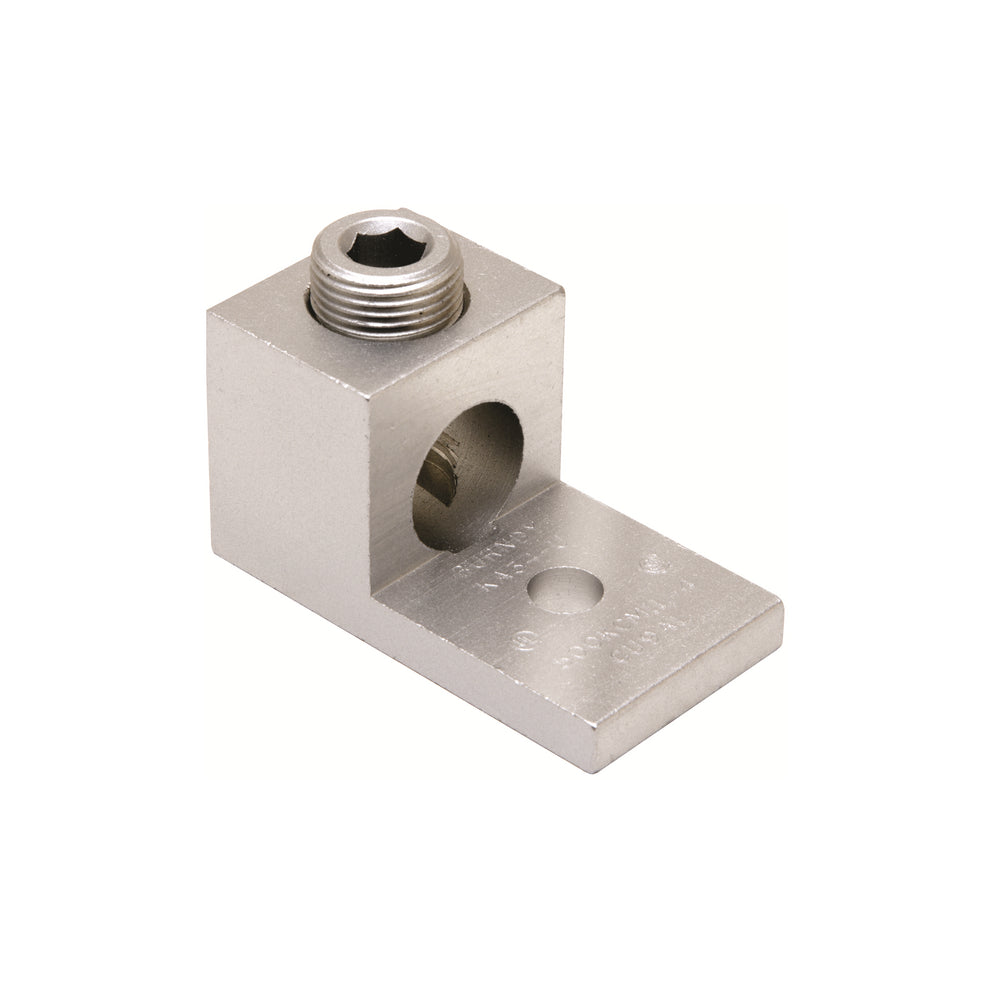

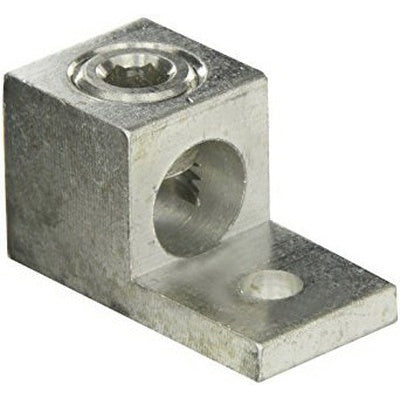

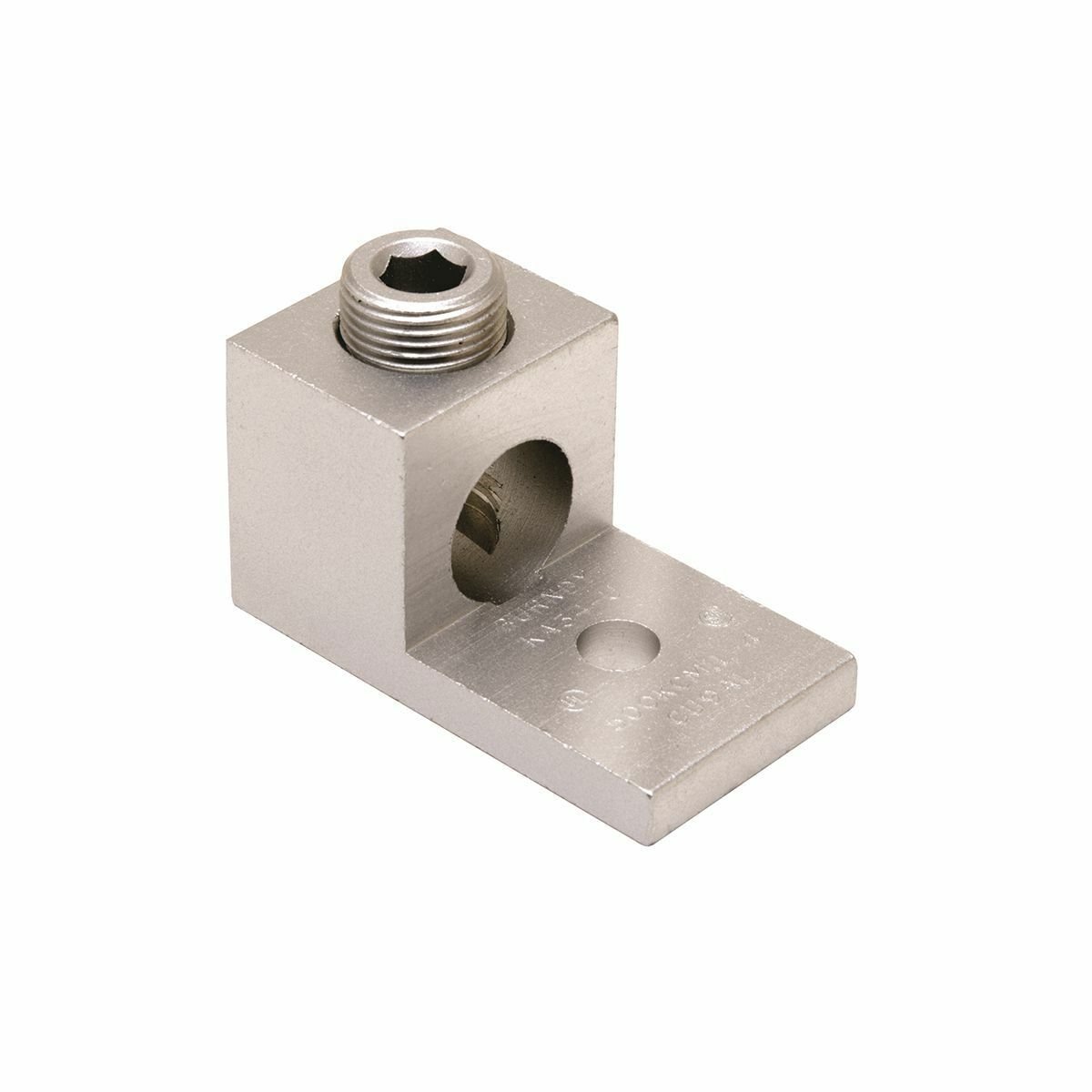

Burndy KA30U Aluminum Universal Terminal 1 Hole 6 AWG (Str)-300 kcmil

Product Description

The Burndy KA30U is an aluminum universal terminal designed for efficient electrical connections. This terminal is compatible with six AWG to three hundred kcmil wire sizes and accommodates a stud size of five-sixteenths inches.

• Suitable for aluminum and copper conductors.
• Manufactured from high-strength aluminum alloy with an electro tin-plated finish.
• Installation torque rating of two hundred seventy-five inch-pounds.

Product Highlights

This durable terminal ensures low contact resistance and reliable performance in various electrical applications.

Product Information

Standard Information

• Catalog Number: KA30U
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Material: Aluminum
• Conductor Size: 6 AWG to 300 kcmil
• Stud Hole Size: 5/16 inch
• Number of Conductors: 1
• Installation Torque: 275 lb-in
• Temperature Rating: 194 degrees C
• Country of Origin: Mexico
• Standards: UL 486A-486B
