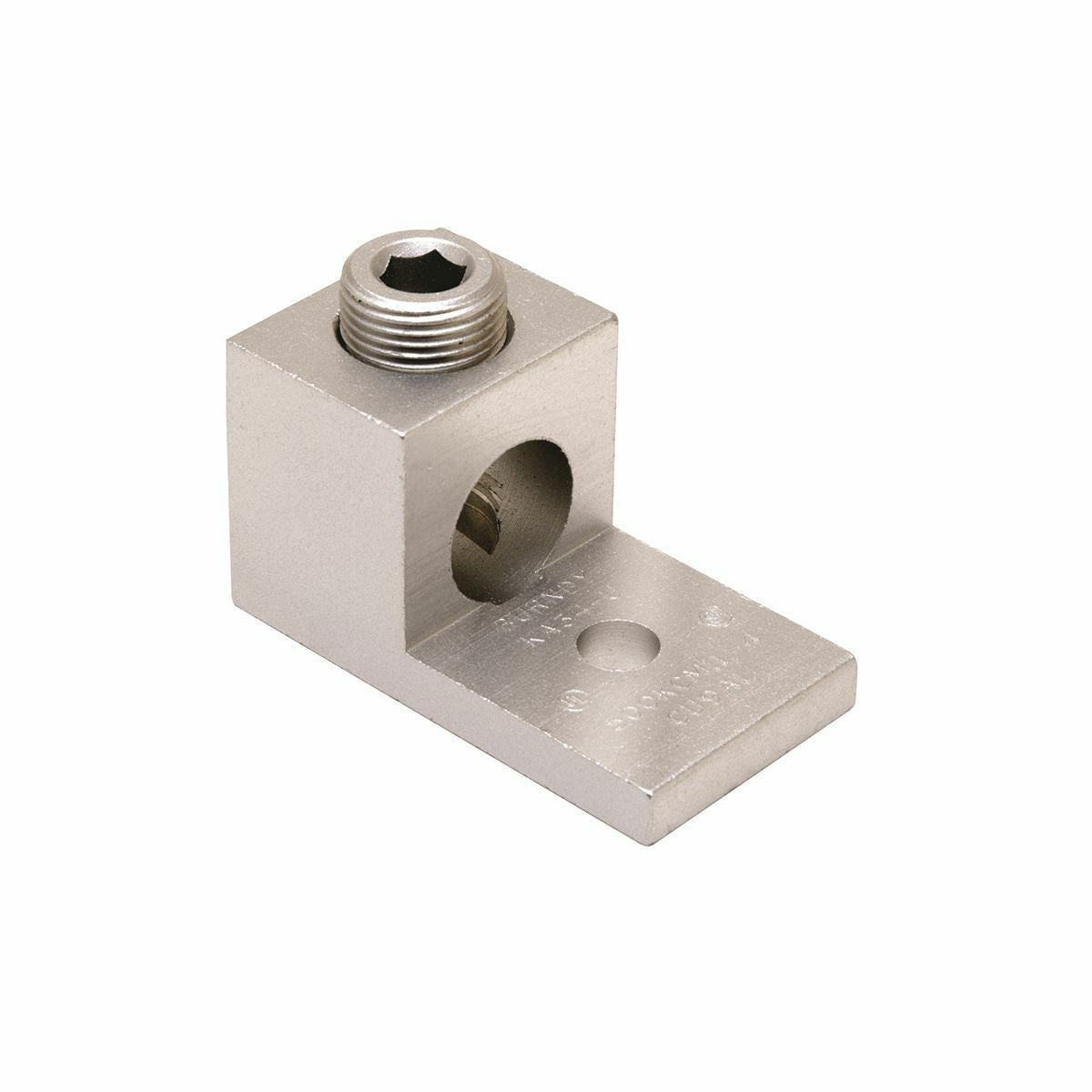

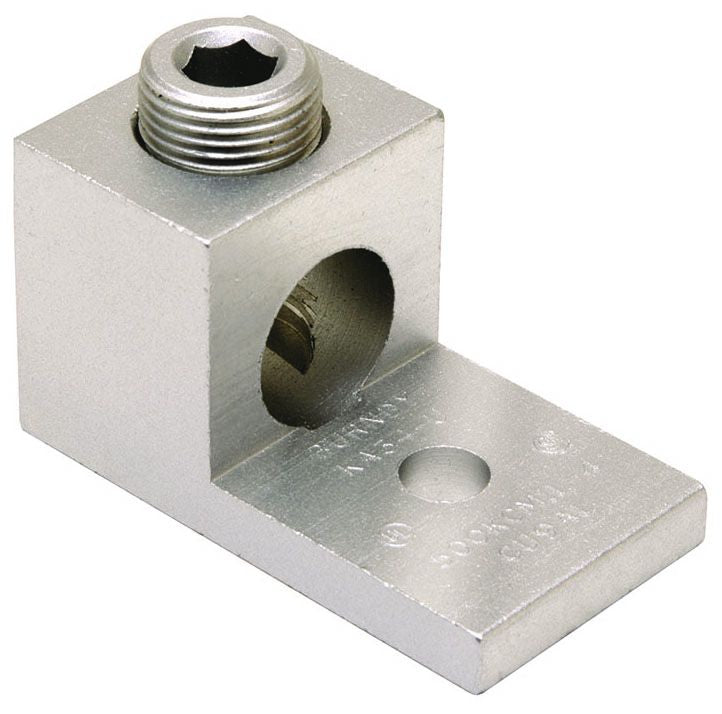

BURNDY KA29U Aluminum Universal Terminal, 1 Hole, 6 AWG (Str)-250 kcmil, 5/16 Stud, 1 Screw, Al/Cu Rated

Product Description

The BURNDY KA29U is an aluminum universal terminal designed for reliable connections in various electrical applications. This terminal supports a conductor size range from six AWG stranded to two hundred fifty kcmil stranded, making it versatile for different wiring needs.

• Constructed from high-strength aluminum alloy.
• Suitable for both aluminum and copper conductors.
• Electro-tin plated for enhanced conductivity.

Product Highlights

Engineered with one conductor capability, this terminal ensures low contact resistance and a strong mechanical connection.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Catalog Number: KA29U
• Application: For aluminum and copper conductors
• Material: Aluminum
• Temperature Rating: 194 degrees Celsius
• Stud/Bolt Hole Size: 5/16 inch
• Length: 2 inches
• Width: 1 inch
• Height: 1.13 inches
• Special Features: Dual-rated, low contact resistance, suitable for installation torque of 275 inch-pounds
• Standard: UL 486A-486B
