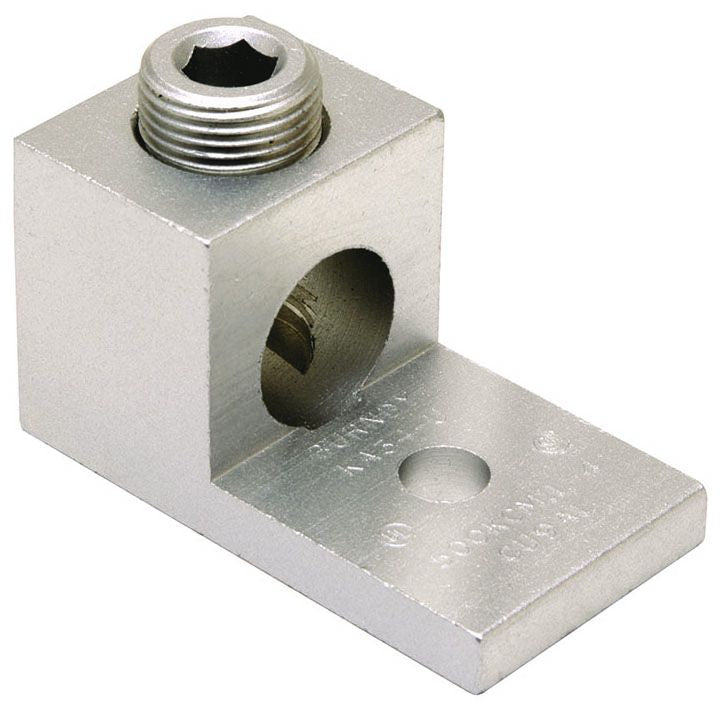

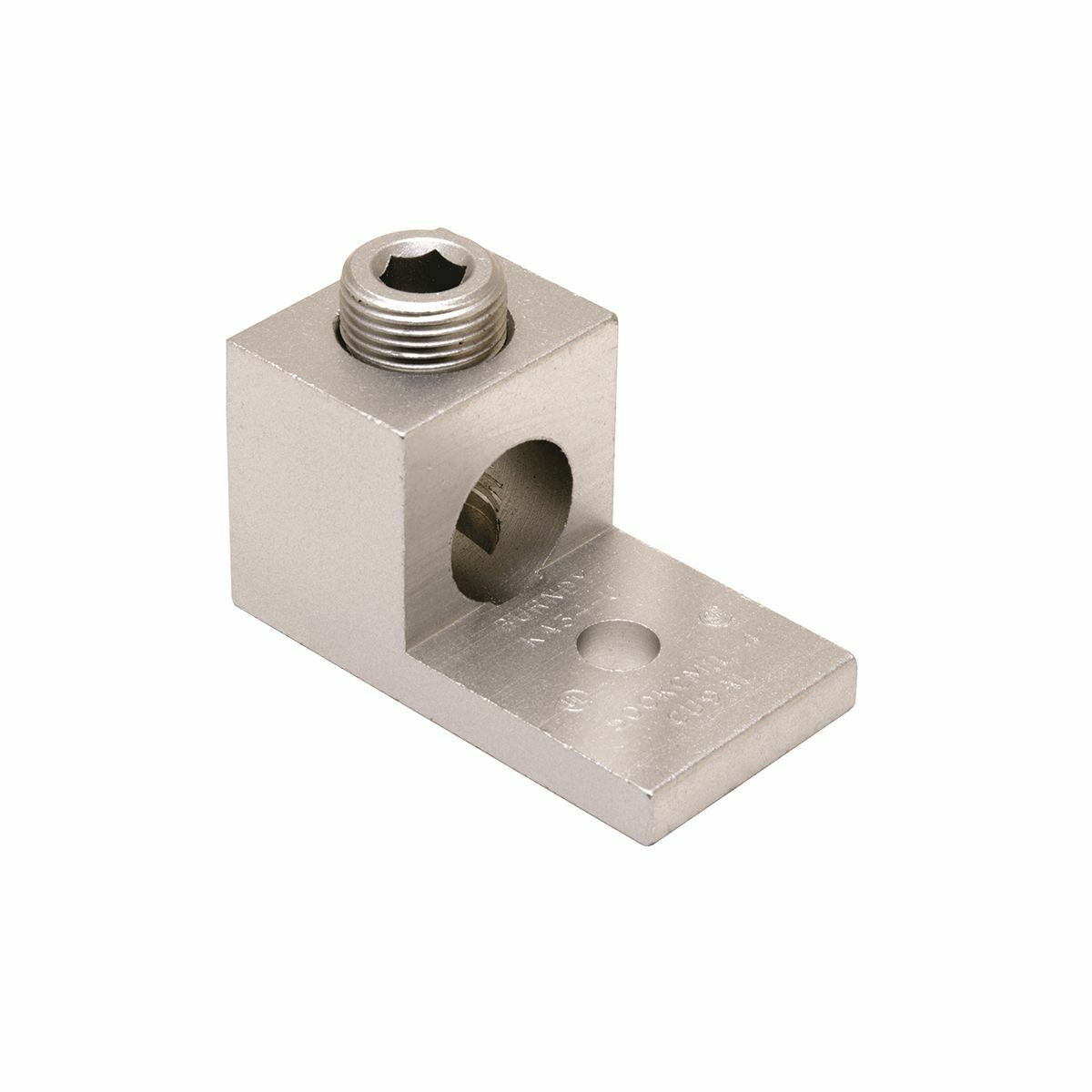

BURNDY KA26U Aluminum Universal Terminal 1 Hole 6-2/0 AWG 1/4 Stud

Product Description

The BURNDY KA26U is an aluminum universal terminal suitable for use with copper and aluminum conductors. This terminal is designed for solid connection and reliable performance across various applications. It accommodates wire sizes ranging from six to two ought AWG. The connector can be attached using a quarter-inch stud, ensuring a secure fit.

• Includes one pad hole for easy installation
• Features low contact resistance due to its electro tin-plated finish
• Meets UL and CSA approval standards

Product Highlights

Ideal for connecting aluminum and copper cables in both residential and commercial settings, this terminal is engineered for durability and ease of use.

Product Information

Standard Information

• Manufacturer: Burndy, a Hubbell affiliate
• Brand: BURNDY

Technical Specifications

• Catalog Number: KA26U
• Number of Conductors: 1
• Conductor Size Range: 6 AWG to 2/0 AWG
• Stud Size: 1/4 inch
• Installation Torque: 120 inch-pounds
• Material: Aluminum
• Temperature Rating: 194 degrees Fahrenheit
• Country of Origin: Mexico
