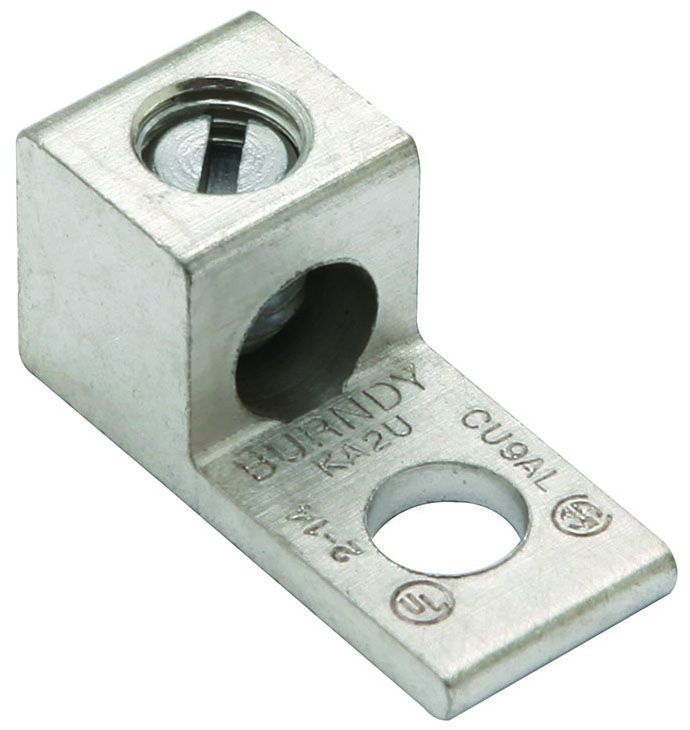

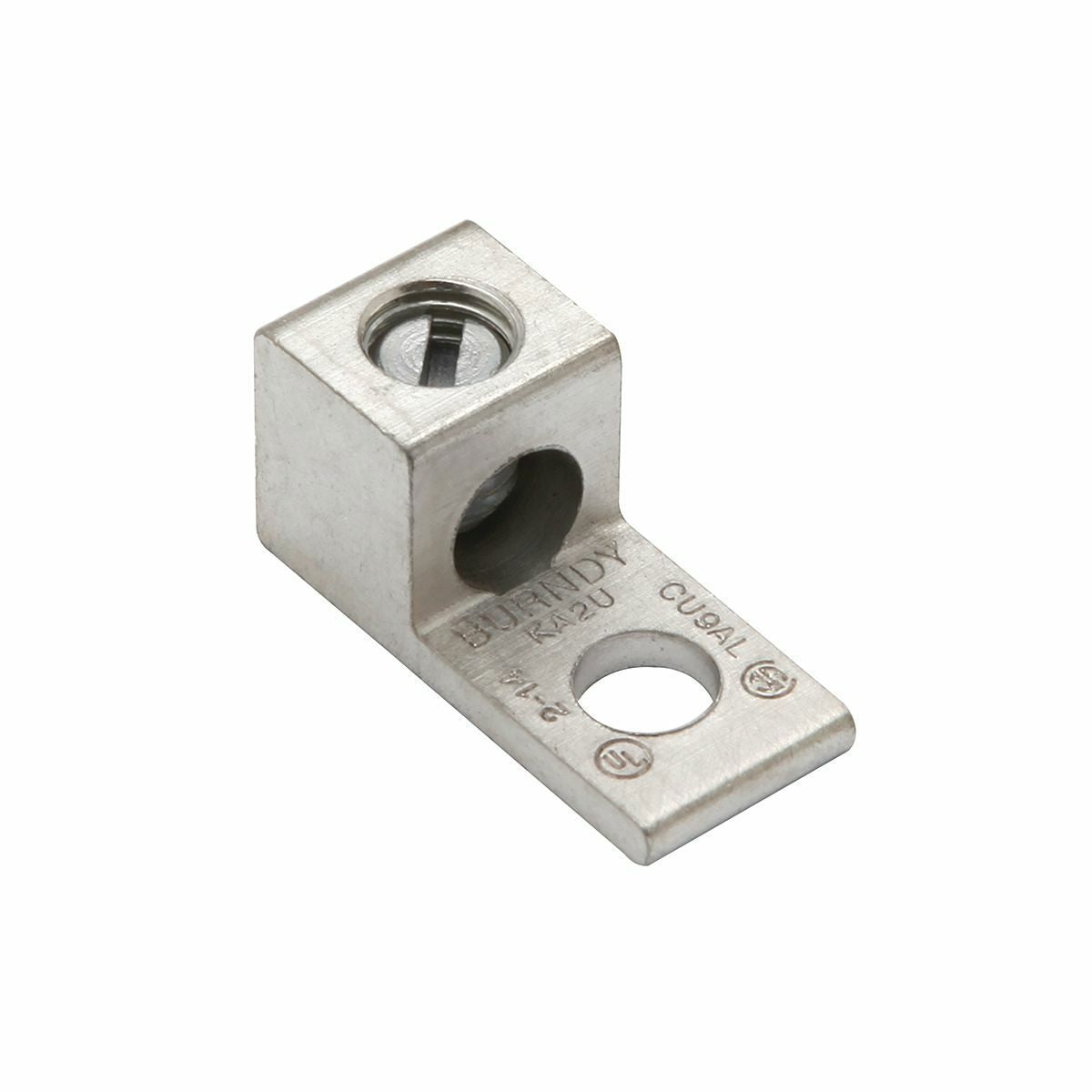

Burndy KA25U Aluminum Universal Terminal, 1 Hole, 14-1/0 AWG (Str), 1/4 Stud, 1 Screw, Al/Cu Rated

Product Description

The Burndy KA25U is an aluminum universal terminal designed for reliable electrical connections. This terminal accommodates conductors from fourteen to one AWG in stranded copper or aluminum. The product features a one-hole design, making it versatile for various applications. It is ideal for use in electrical distribution systems and equipment connections.

• UL and CSA approved for safety and reliability
• Electro-tin plated for low contact resistance
• Features a set screw type for easy installation

Product Highlights

Constructed from high-strength aluminum alloy, the KA25U ensures long-lasting performance and effective conductivity.

Product Information

Standard Information

• Manufacturer: Burndy, a Hubbell affiliate
• UPC: 781810370193

Technical Specifications

• Catalog Number: KA25U
• Material: Aluminum
• Application: For Aluminum and Copper Conductors
• Number of Conductors: 1
• Stud/Bolt Hole Size: 1/4 inch
• Installation Torque: 50 inch-lb
• Length: 1.5 inches
• Width: 0.63 inches
• Height: 0.19 inches
• Temperature Rating: 194 degrees Celsius
• Country of Origin: Mexico
