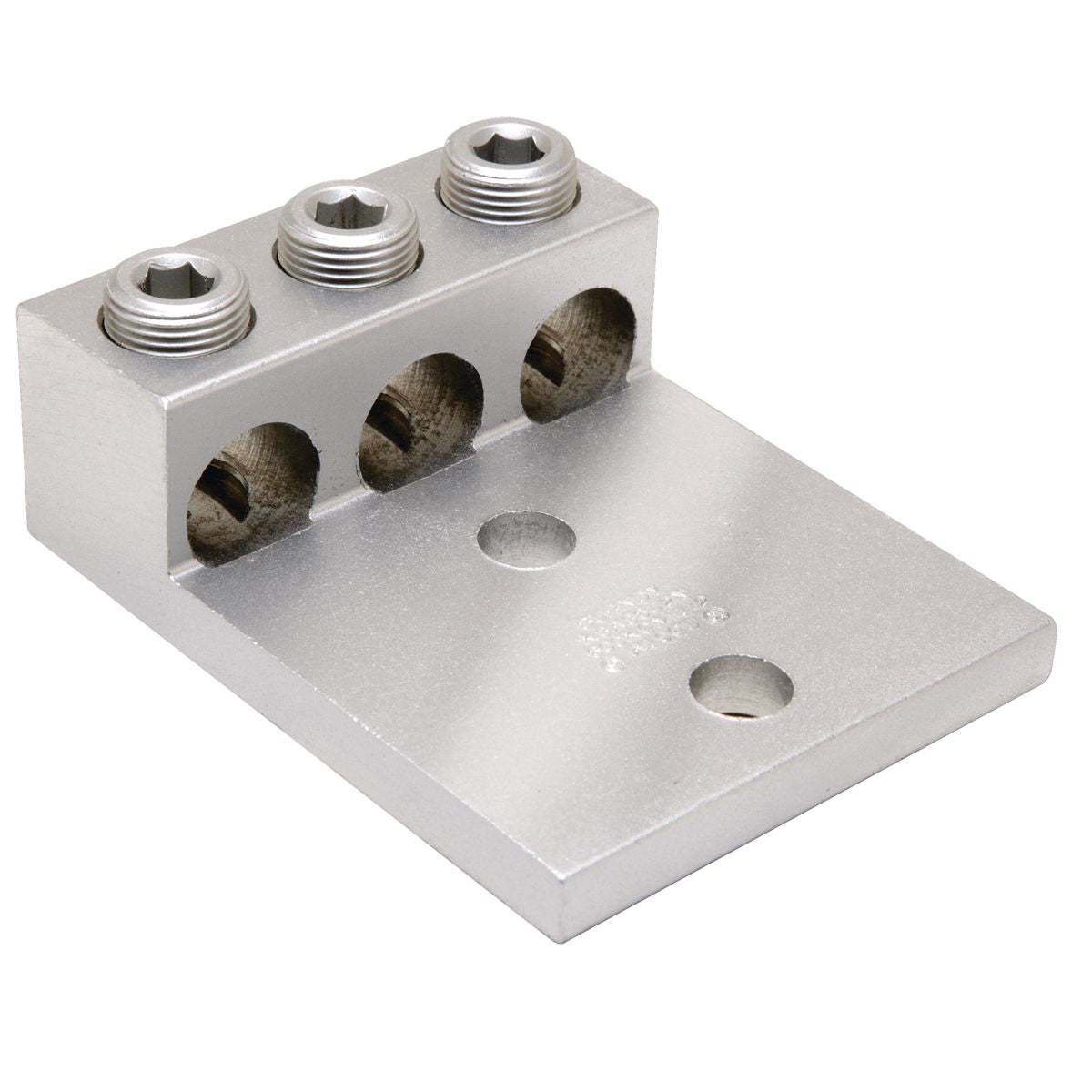

BURNDY K3A31U2N Aluminum Universal Terminal 3 Conductor 6 AWG 350 KCMIL 1/2 Stud

Product Description

The Burndy K3A31U2N is an aluminum universal terminal designed for 3 conductors. It is compatible with 6 AWG to 350 KCMIL sized wires, making it a versatile choice for both aluminum and copper conductors. The terminal features a dual-rated design that allows for easy installation and reliable connections. Its durable material is electro tin plated for low contact resistance.

• Universal application for aluminum and copper conductors
• Constructed from high strength aluminum alloy
• Includes three screws for secure attachment

Product Highlights

This terminal meets UL 486A and UL 486B standards. It has a temperature rating of one hundred ninety-four degrees Fahrenheit. Additionally, it features two holes for bolting to surfaces, with a spacing of one point seventy-five inches.

Product Information

Standard Information

• Catalog Number: K3A31U2N
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Brand: BURNDY
• Country of Origin: United States
• Material: Aluminum
• Number of Conductors: 3
• Stud Size: 1/2 inch
• Stud Hole Spacing: 1.75 inches
• Temperature Rating: 194 degrees Fahrenheit
• UPC: 781810601150
