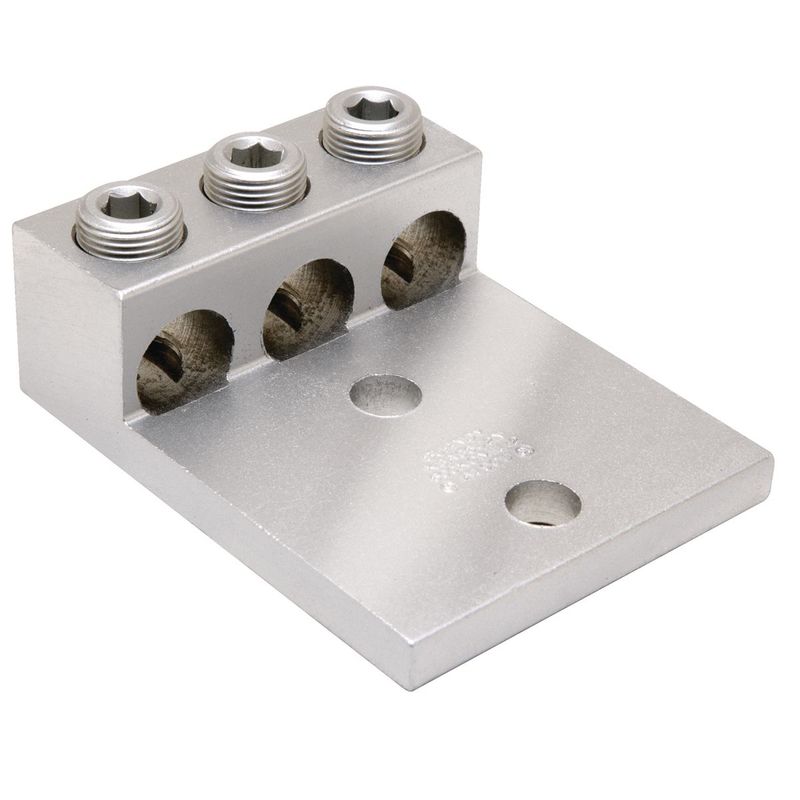

Burndy K3A27U2N AL Universal Terminal, 3-Conductor, 2-Hole

Brand: BURNDY
SKU: K3A27U2N
Availability: In Stock

Ships same day if ordered by 12 pm
$114.35
$114.35
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The BURNDY K3A27U2N is an aluminum universal terminal with 3 conductors and 2 holes, designed for 6-3/0 AWG (Str) conductors. It features a 1/2" stud, 1.75" stud hole spacing, and 3 screws. This terminal is Al/Cu rated and tin plated. Constructed from high-strength aluminum alloy, it offers low contact resistance.

  • Buy America(n) Qualified
  • Dual rated lugs
  • Constructed from high strength aluminum alloy

Product Highlights

Aluminum alloy construction and tin plating ensure reliable connections for both aluminum and copper conductors.

Product Information

Standard Information

  • Brand: BURNDY
  • Manufacturer Part Number: K3A27U2N
Technical Specifications
Application
For Aluminum and Copper Conductors
Catalog Number
K3A27U2N
Connector Type
Parallel Set-Screw
EU RoHS Indicator
No
Installation Torque Recommended in-lb
275 LBS/in
Material
Aluminum
Material - Hardware
Aluminum
Physical Attribute - Number of Holes
2
Physical Attribute - Number of Screws
3
Physical Attribute - Screw Type
Slot
Plated
Y
Plating Type
Tin plated
Sub Brand
UNIVERSAL TERM
Temperature Rating
194
Type
Bolted Lugs & Terminals
UPC
781810370391
UPC 14 Digit GTIN
00781810370391
Dimension - Bolt Hole Size inch
0.57 in
Dimension - Bolt Size fraction
1/2
Dimension - D inch
3.00 in
Dimension - Height inch
1.12 in
Dimension - Hole Size inch
0.56 in
Dimension - L Length Overall inch
4.25 in
Dimension - N inch
0.63 in
Dimension - Pad Width inch
2.83 in
Dimension - Stud Size inch
1/2 in
Dimension - Width inch
2.83 in
Conductor - AL Str Size
6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG
Conductor - AL Str Size Range
6 Str.-3/0 AWG
Conductor - Copper Str Size
6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG
Conductor - Copper Str Size Range
6 Str.-3/0 AWG
Conductor Size
6-3/0 AWG
Conductor Type
AL C Str-Size CU C Str-Size
Number of Conductors
3
Certification - CSA Approved
Yes
Certification - UL Listed Direct Burial
No
Industry Standard(s)
UL 486A-486B
Standards - Industry Standards Met
UL 486A-486B
Standards - RoHS Compliance Status
NC
UL Listed
Yes
Number of Bolt Holes
3
Finish
Tin Plated
Stud Size
1/2 in
Tongue Style
Straight
Series
K3A-U
Standard & Approvals
CSA Certified, UL468A-468B Listed
Direct Burial?
No
Brand
Hubbell Incorporated
Buy American Compliant
Y
