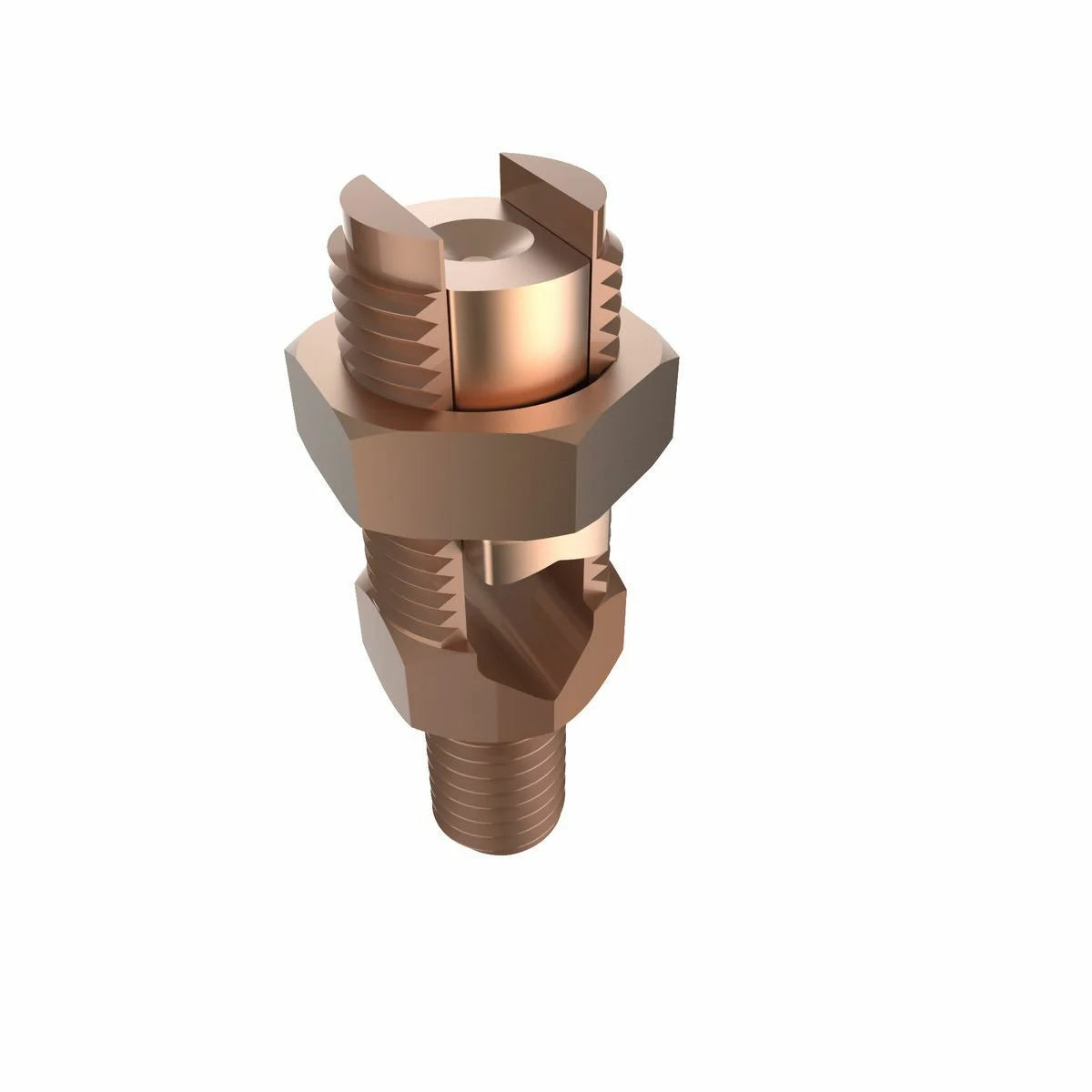

Burndy K2C26B1 Mechanical Grounding Connector, Cable to Flat, 2-2/0 AWG (Str) / 2-3/0 AWG (Sol), 1/2 Stud, 1-3/8 H.

Product Description

The Burndy K2C26B1 is a mechanical grounding connector used for various cable connections. This model can accommodate stranded cables ranging from two to two-ought American Wire Gauge (AWG) and solid cables from two to three-ought AWG. It features a half-inch stud for secure attachment.

• Direct burial applications
• Made from leaded bronze alloy
• UL467 approved

Product Highlights

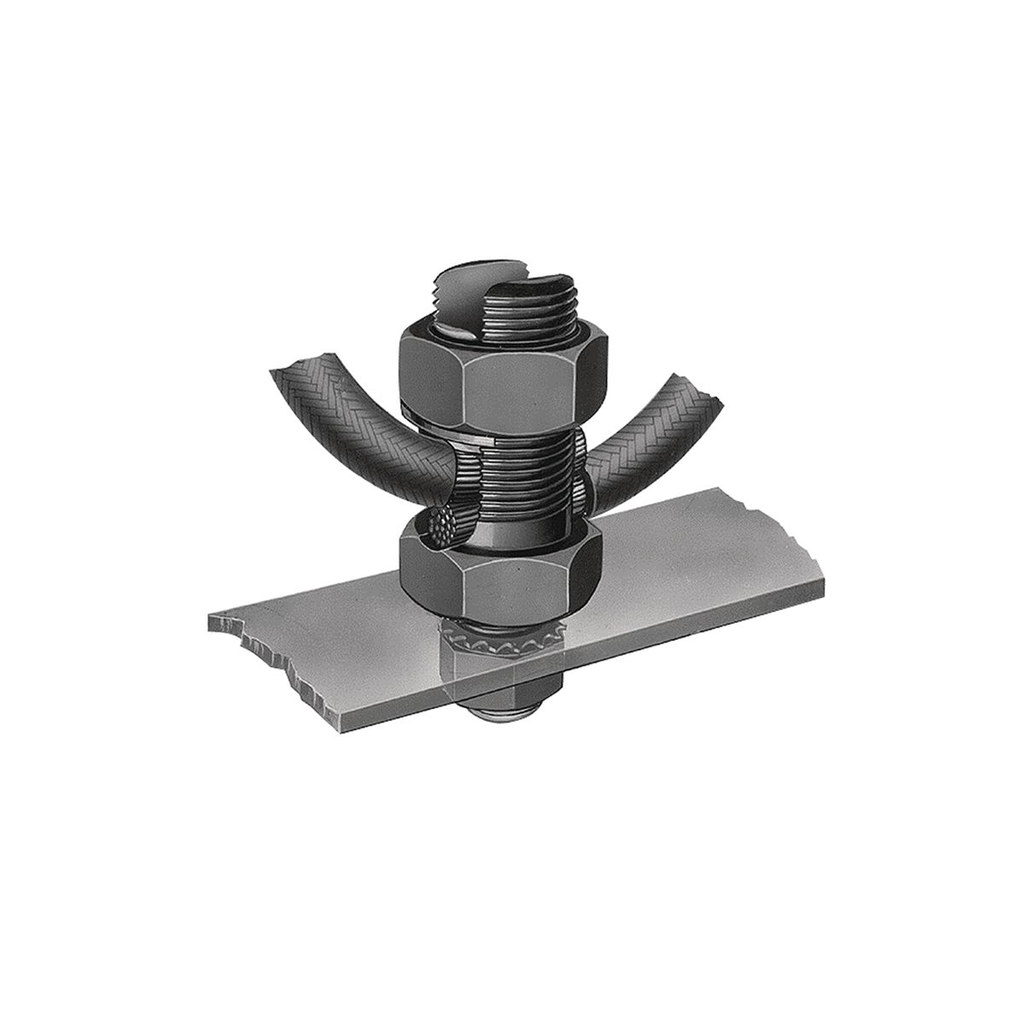

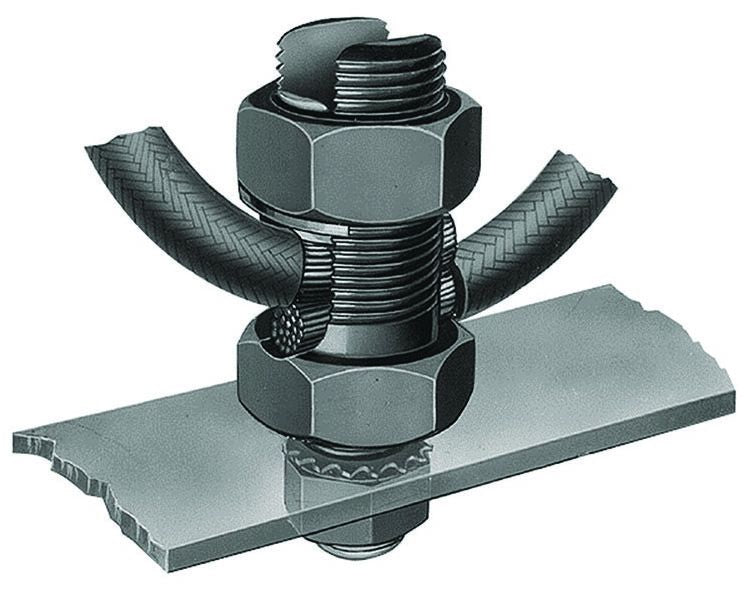

This connector is designed for direct burial applications and provides a reliable connection for grounding one or two cables to steel structures, fence posts, and transformers. The one-wrench installation makes it easy to use.

Product Information

Standard Information

• Brand: Burndy
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Catalog Number: K2C26B1
• Application: Direct burial for grounding cables
• Material: Bronze alloy
• Country of Origin: United States
• UPC: 781810257456
• GTIN: 00781810257456
• Stud Diameter: 1/2 inch
• Height: 3-1/8 inches
