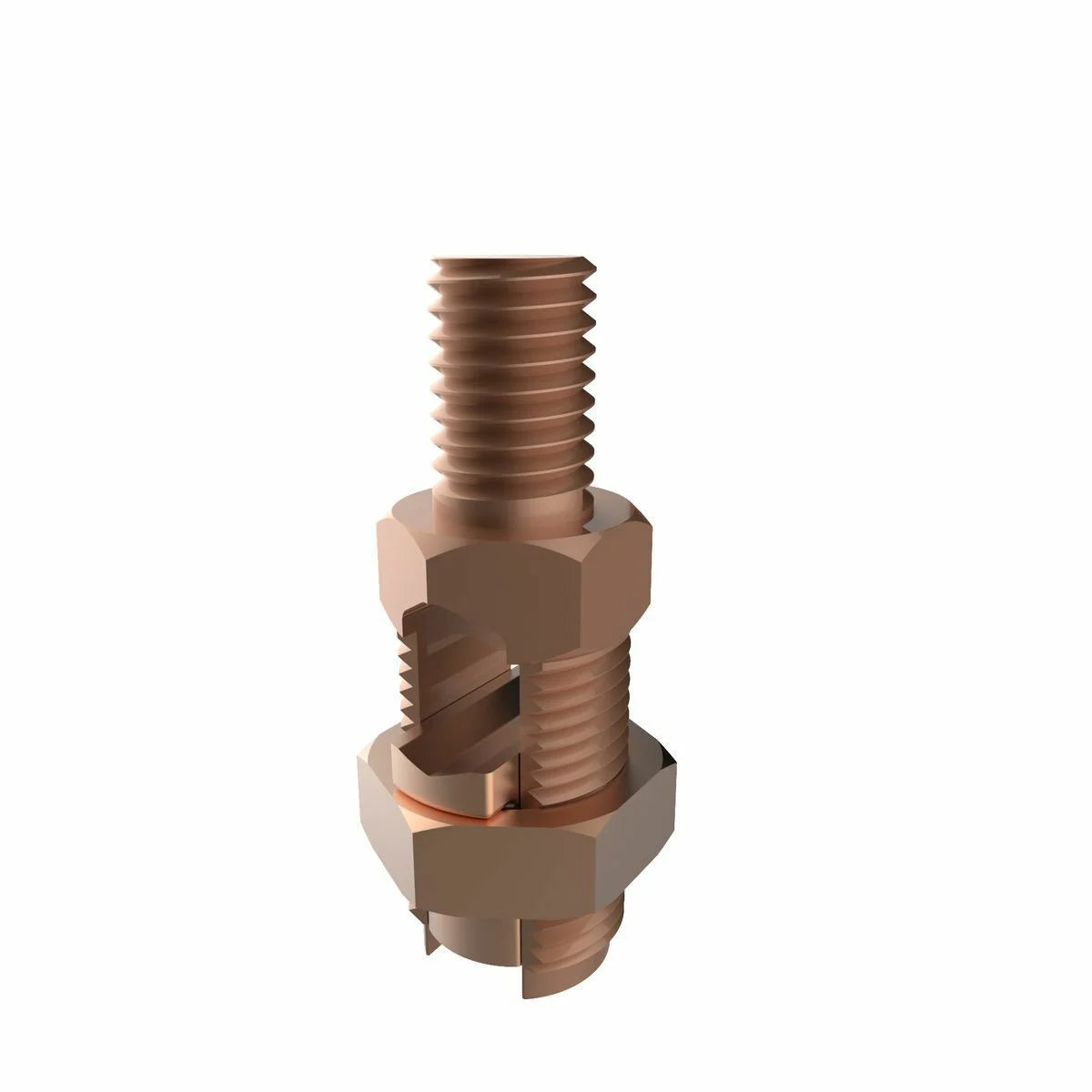

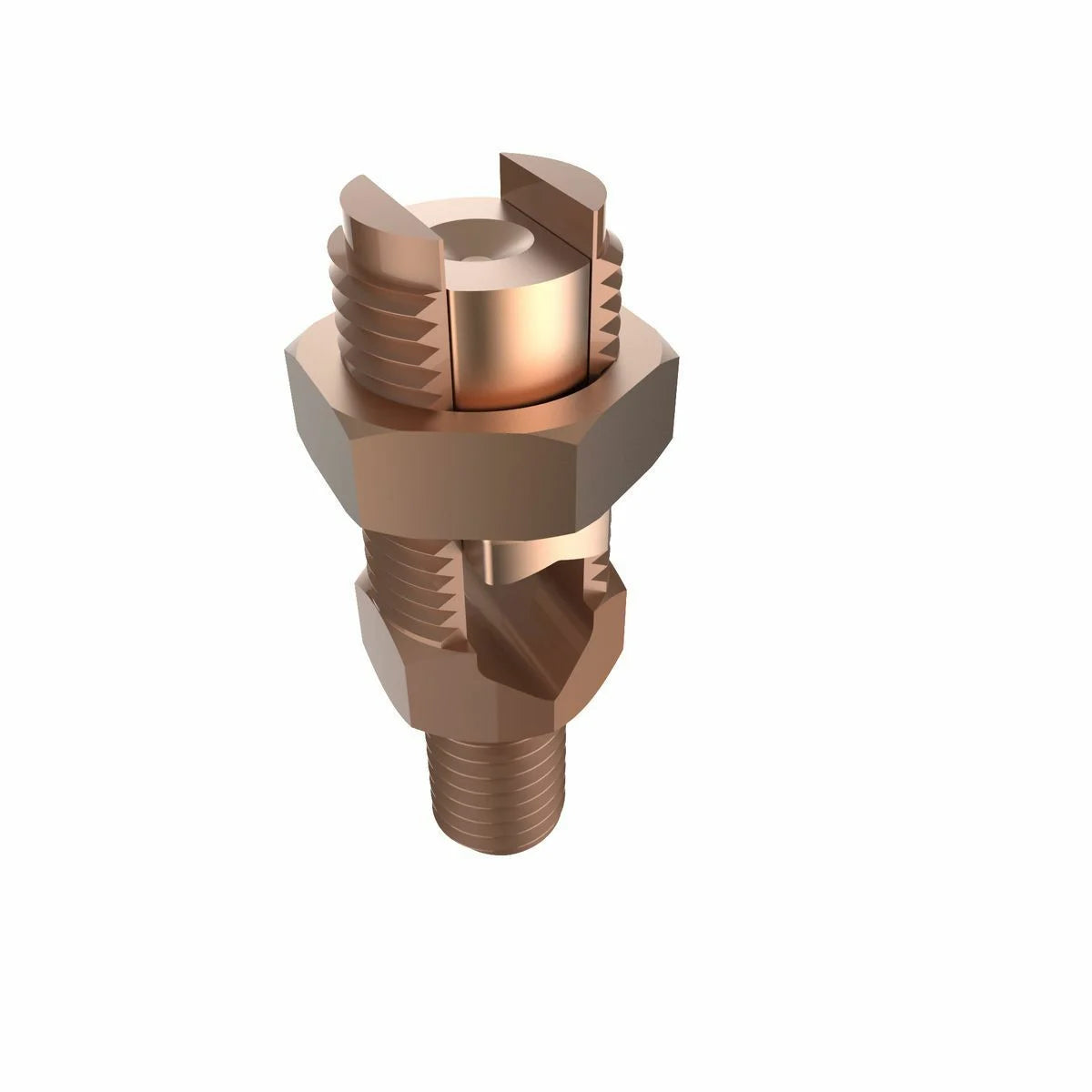

Burndy K2C25B1 Mechanical Grounding Connector, Cable to Flat, 2-1/0 AWG (Str) / 2-2/0 AWG (Sol), 1/2 Stud

Product Description

The Burndy K2C25B1 is a mechanical grounding connector designed to effectively connect copper cables to flat surfaces. This connector can accommodate conductor sizes ranging from two to one-aught American Wire Gauge for stranded cables and from two to two-aught for solid cables.

• UL467 compliant for safety and reliability.
• Constructed from a leaded bronze alloy material.
• Features a one-wrench installation for easy application.

Product Highlights

The K2C25B1 connector is specifically engineered for grounding applications, making it suitable for various settings.

Product Information

Standard Information

• Brand: Burndy
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Catalog Number: K2C25B1
• Material: Bronze Alloy, Leaded
• Application: Grounds one or two copper cables to steel structures, fence posts, transformers
• Stud Size: 1/2-13
• Height: 2-7/8 inches
• Approved Standards: UL467
• Country of Origin: United States
• Item Type: KC and K2C Series
