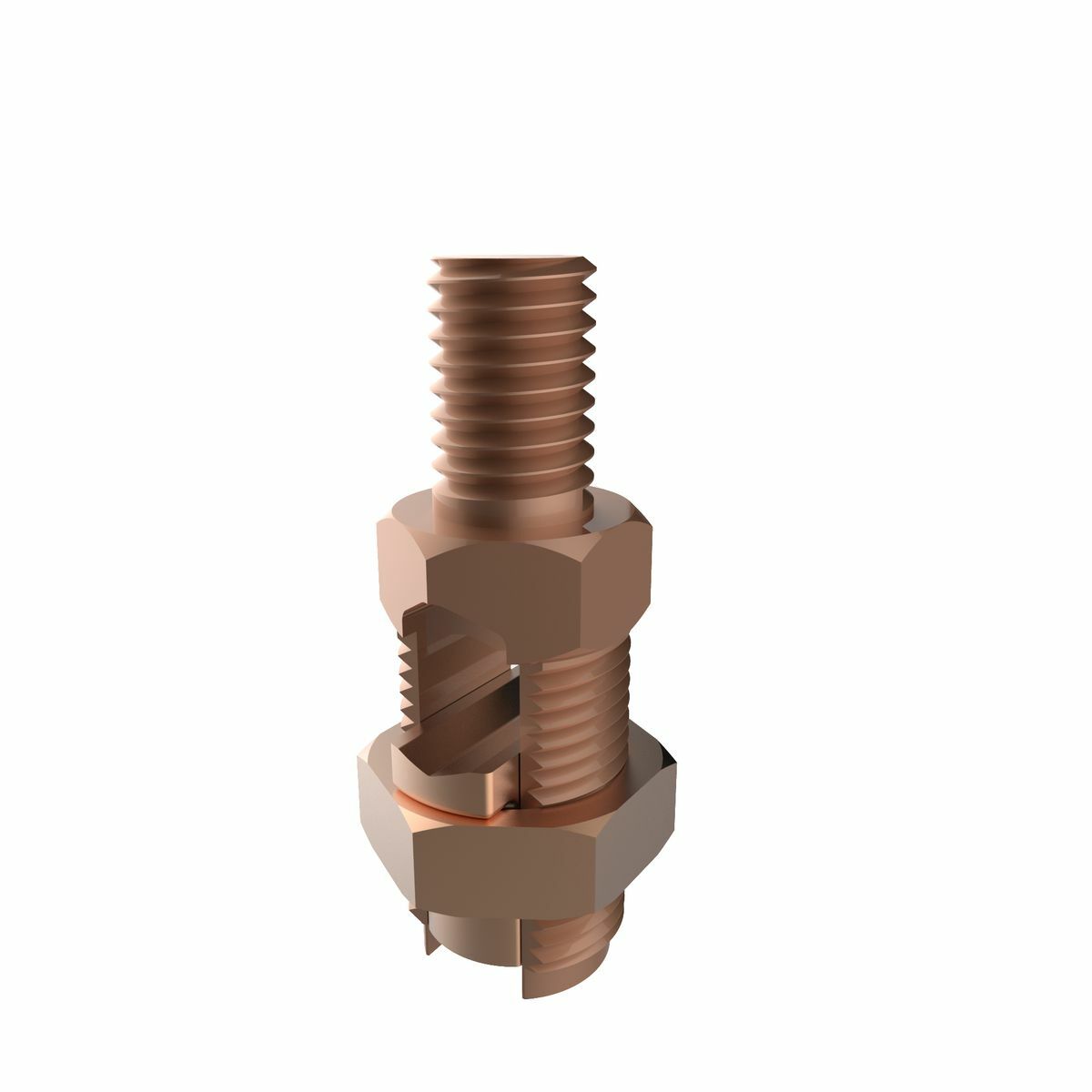

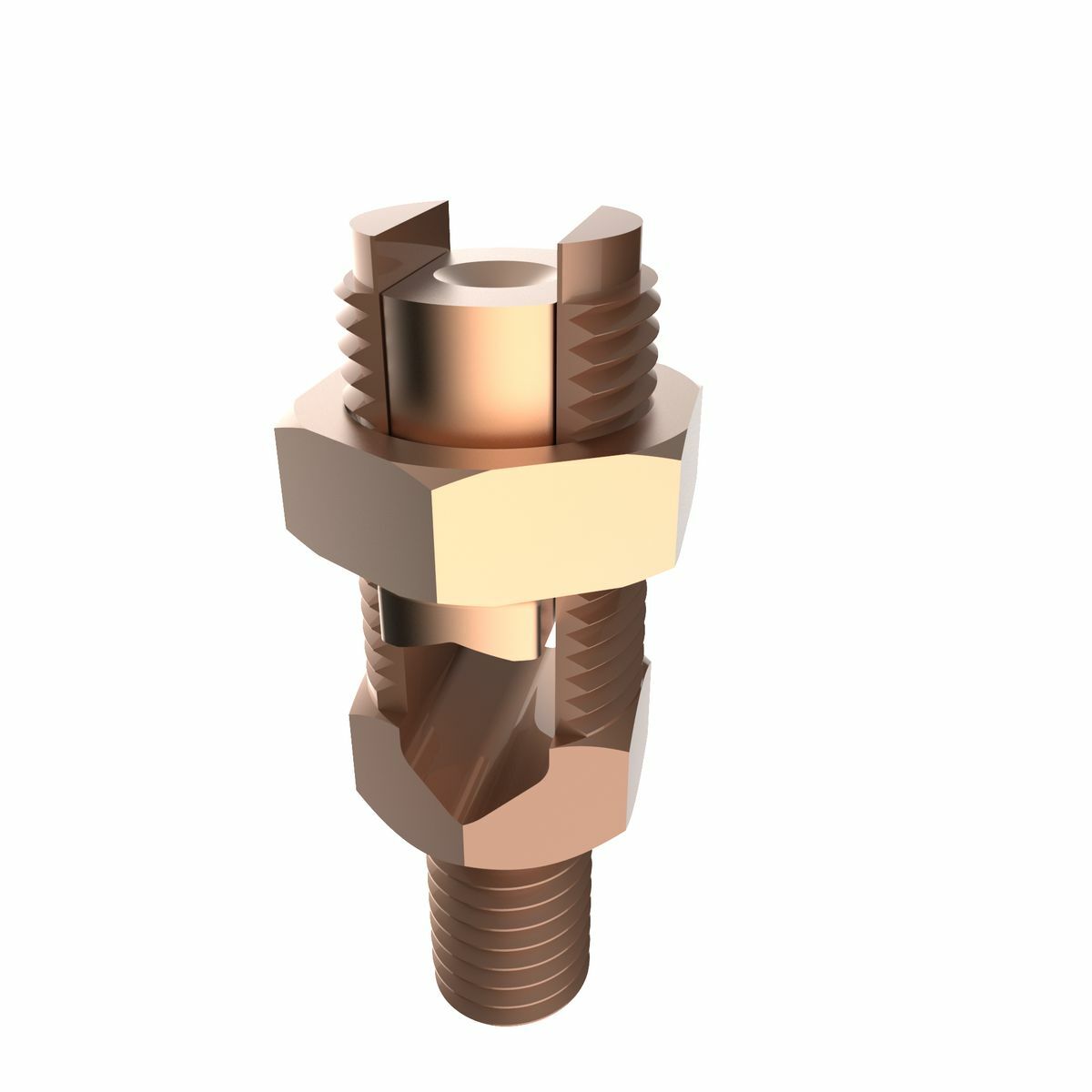

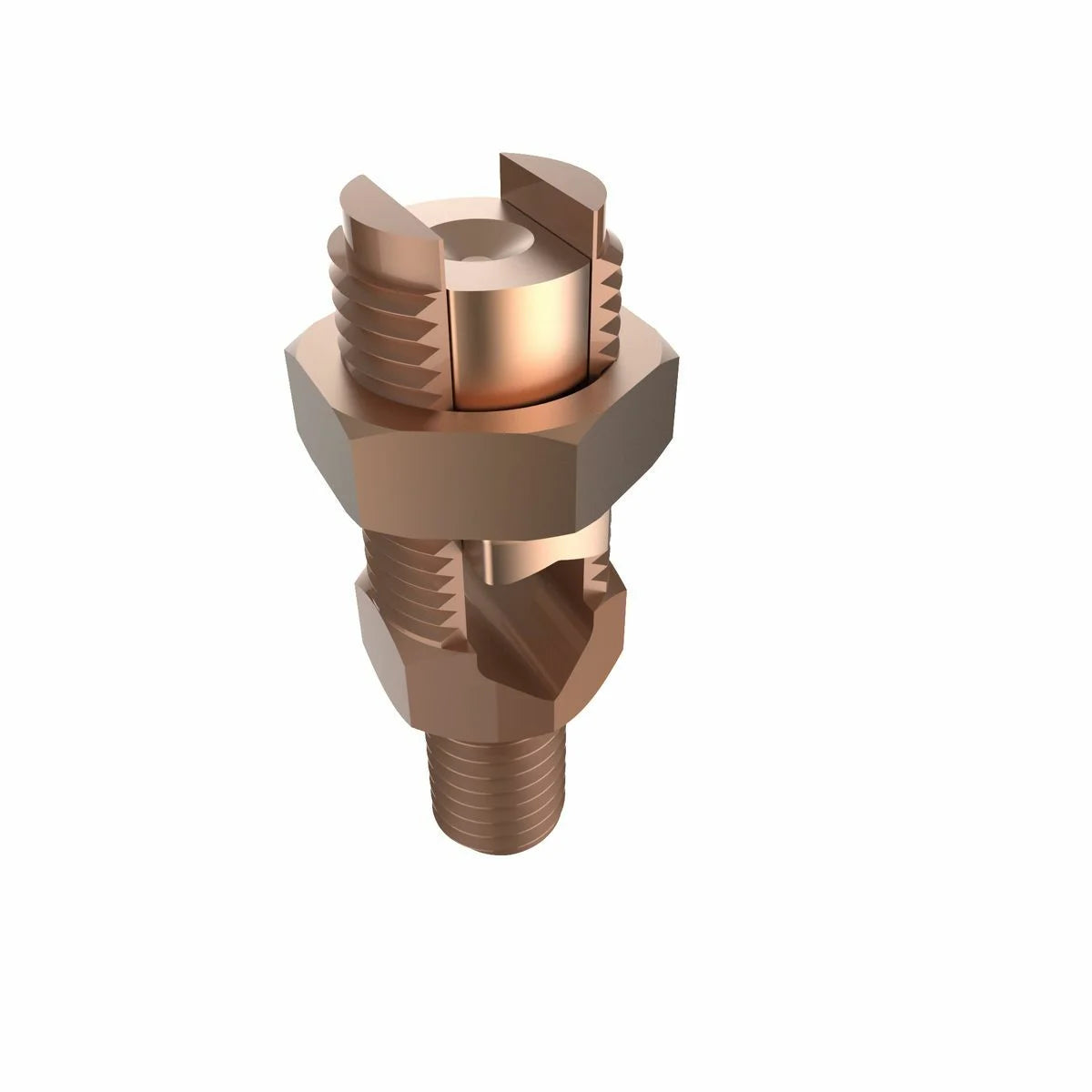

Burndy K2C25 Mechanical Grounding Connector, Cable to Flat, 2-1/0 AWG (Str) / 2-2/0 AWG (Sol)

Product Description

The Burndy K2C25 is a mechanical grounding connector suitable for various applications. It connects cables ranging from 2 to 2/0 AWG solid and 2 to 1/0 AWG stranded. This product is designed for easy installation and is ideal for grounding connections to steel structures and transformer applications.

• Stud diameter: 1/2 inch-13 TPI
• Body dimensions: Length is 2.31 inches, Height is 1.19 inches
• Made in the USA

Product Highlights

This connector is essential for direct burial applications, grounding one or two cables, and tapping from a bus bar.

Product Information

Standard Information

• Manufacturer: Burndy, a Hubbell affiliate
• Brand: BURNDY

Technical Specifications

• Catalog Number: K2C25
• Material: Leaded bronze alloy
• Application: For grounding one or two cables to steel structures and fence posts
• Special Features: One-wrench installation, supports stranded and solid copper conductors
• Country of Origin: United States
• Standard: UL467
