Product Description

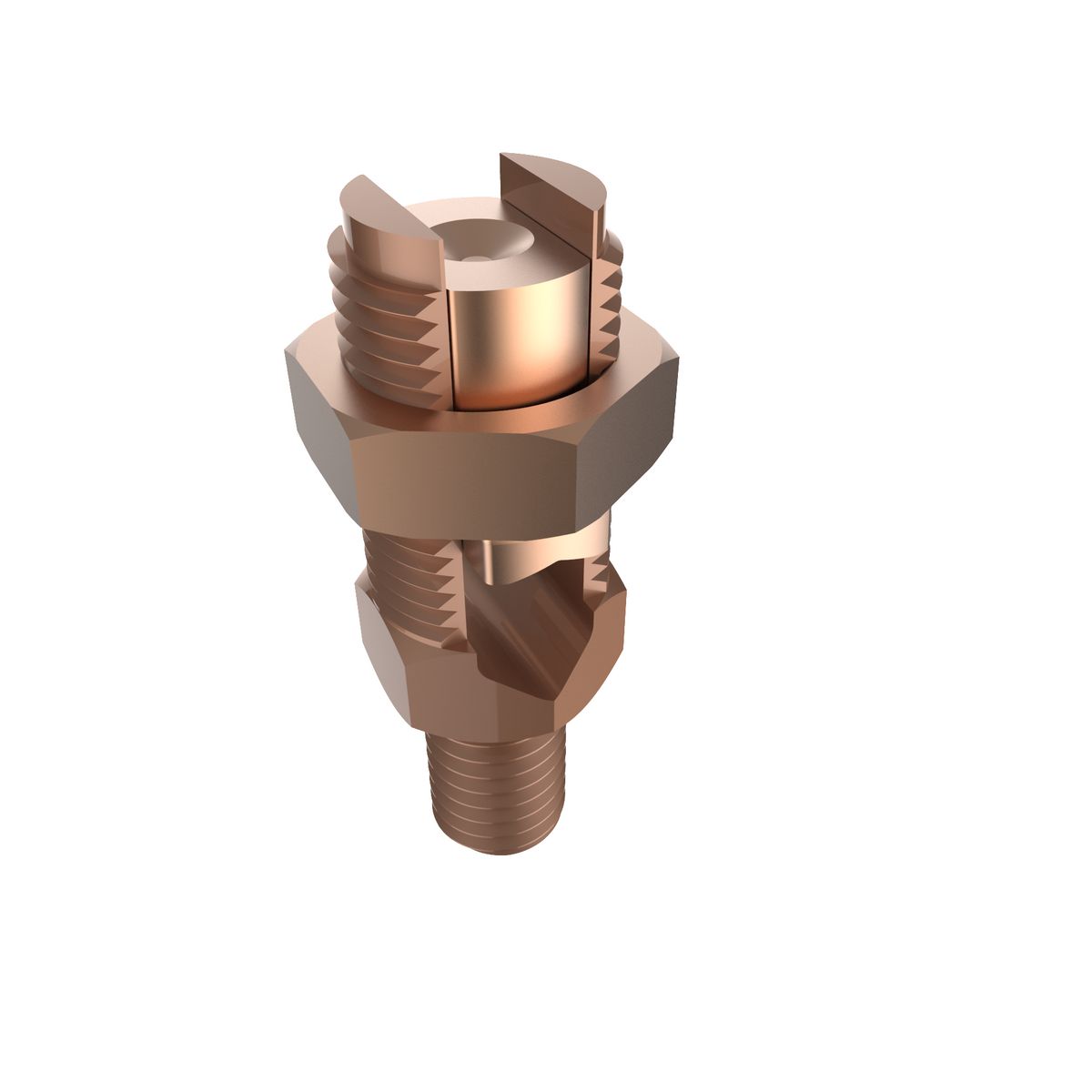

The BURNDY K2C20 SERVIT POST™ mechanical connector grounds one or two cables to steel structures, fence posts, and transformers. It can also tap one or two cables from a bus bar and is UL467 Listed for direct burial applications. Installation requires only one wrench.
- Grounds one or two copper cables to steel structures, fence posts, and transformers
- Also used to tap one or two cables from bus bar
- One-wrench installation
Product Highlights
The BURNDY K2C20 is made from high copper alloys for durability in extreme conditions and is UL467 Listed for direct burial.
Product Information
Standard Information
-
Brand: BURNDY
-
Manufacturer Part Number: K2C20
-
Country of Origin: US
Technical Specifications
-
Application: For Used To Ground One Or Two Copper Cables To Steel Structures, Fence Posts, Transformers, Tap One Or Two Cables From Bus Bar And Direct Burial
-
Catalog Number: K2C20
-
EU RoHS Indicator: Yes
-
Material: Bronze Alloy, Leaded
-
Plated: N
-
Plating Type: Unplated
-
Sub Brand: SERVIT POST
-
Trade Name: SERVIT POST
-
Type: KC and K2C Series
-
UPC: 781810257005
-
UPC 14 Digit GTIN: 00781810257005
-
Dimension - B Length fraction: 13/32 in
-
Dimension - B Length inch: 0.41 in
-
Dimension - Body Width inch: 0.50 in
-
Dimension - Bolt Size fraction: 5/16
-
Dimension - D inch: 0.62 in
-
Dimension - Height fraction: 7/8
-
Dimension - Height inch: 1.06 in
-
Dimension - Height mm: 21.8 mm
-
Dimension - L Length Overall mm: 36.1 mm
-
Dimension - Length Overall inch: 1.42 in
-
Dimension - Nut Width inch: 0.69 in
-
Dimension - P inch: 0.22 in
-
Dimension - Threads per inch: 18
-
Dimension - Width inch: 0.69 in
-
Conductor - Copper Solid Size: 10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG
-
Conductor - Copper Solid Size Range: 4 AWG - 10 AWG
-
Conductor - Copper Str Size: 10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG
-
Conductor - Copper Str Size Range: 5 AWG - 10 AWG
-
Physical Attribute - Number of Conductors Accommodated Total: 2
-
Certification - UL Listed Direct Burial: Yes
-
Industry Standard(s): UL467
-
Standards - Industry Standards Met: UL467
-
Standards - RoHS Compliance Status: EX
-
UL Listed: Yes
-
Stud Installation Torque inch pounds: 180 LBS/in
-
Minimum Pack Quantity: 1
-
Connection Type: Cable to Flat
-
Country of Origin: US
-
Series: K2C
-
Standard: UL467
-
UNSPSC: 39121408
-
Brand: BURNDY
-
Manufacturer: BURNDY
-
Conductor Size: 10 to 4 AWG, 10 to 5 AWG
-
Finish: Unplated
-
ECCN: EAR99
