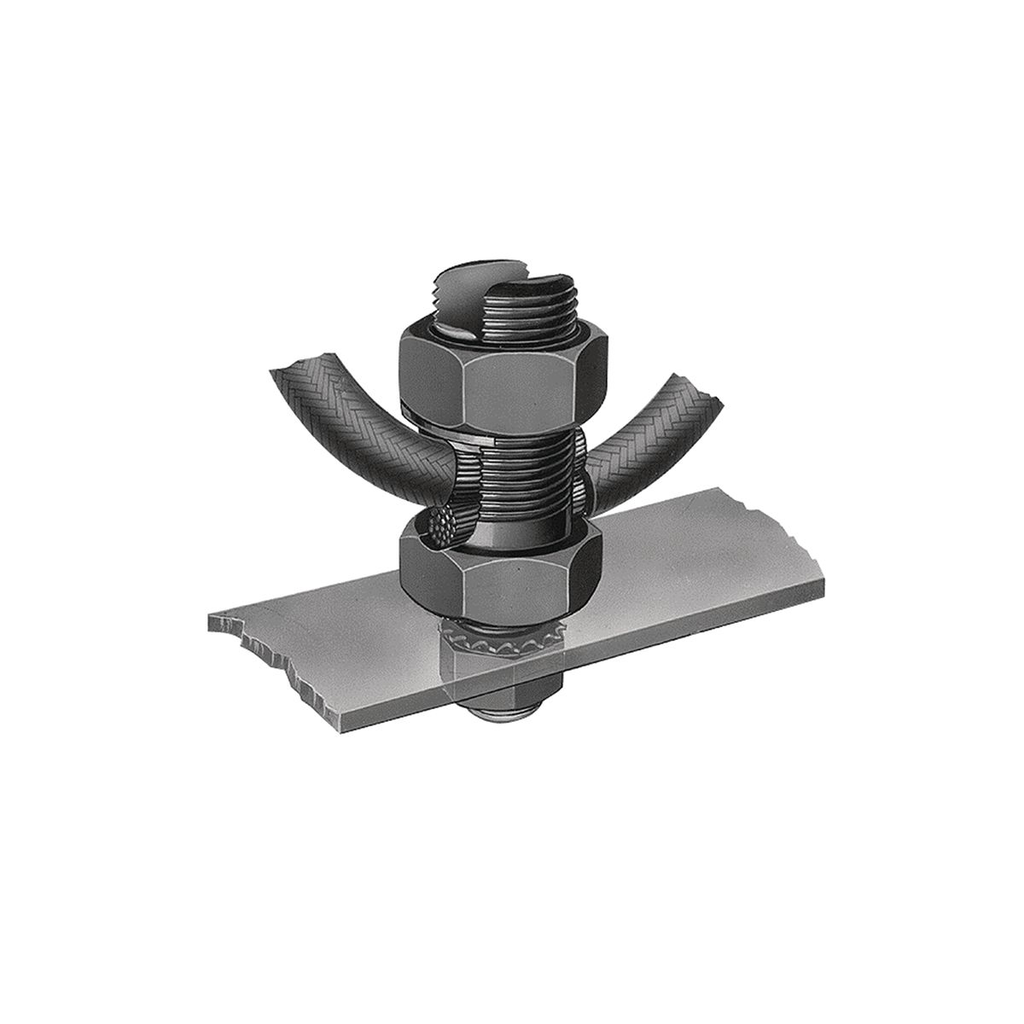

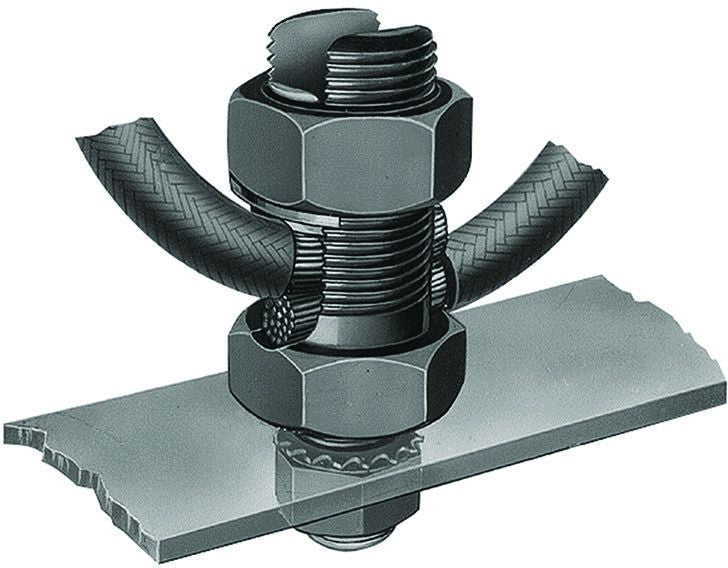

Burndy K2C15B1 BUR K2C15B1 9STR SPLIT BOLT CONN

Product Description

The Burndy K2C15B1 is a mechanical grounding connector designed for solid and stranded copper conductors. This connector supports conductor sizes from twelve to eight AWG for solid and twelve to nine AWG for stranded wires.

• Two conductor capability
• Stud diameter of one quarter inch-20 TPI
• Leaded bronze alloy construction

Product Highlights

This product is suitable for various applications, including connections between cables and flat surfaces, steel structures, fence posts, and transformers. Its durable construction meets UL and CSA approvals.

Product Information

Standard Information

• Manufacturer: Burndy
• UPC: 78181025685

Technical Specifications

• Conductor Size: 12 to 8 AWG Solid, 12 to 9 AWG Stranded
• Number of Conductors: 2
• Stud Diameter: 1/4 Inch-20 TPI
• Stud Length: 7/8 Inch
• Body Hex Size: 3/8 Inch
• Nut Hex Size: 1/2 Inch
• Material: Leaded Bronze Alloy
• Approval: UL, CSA
• Used On: Cable to Flat Surface/Steel Structure/Fence Post/Transformer
