Product Description

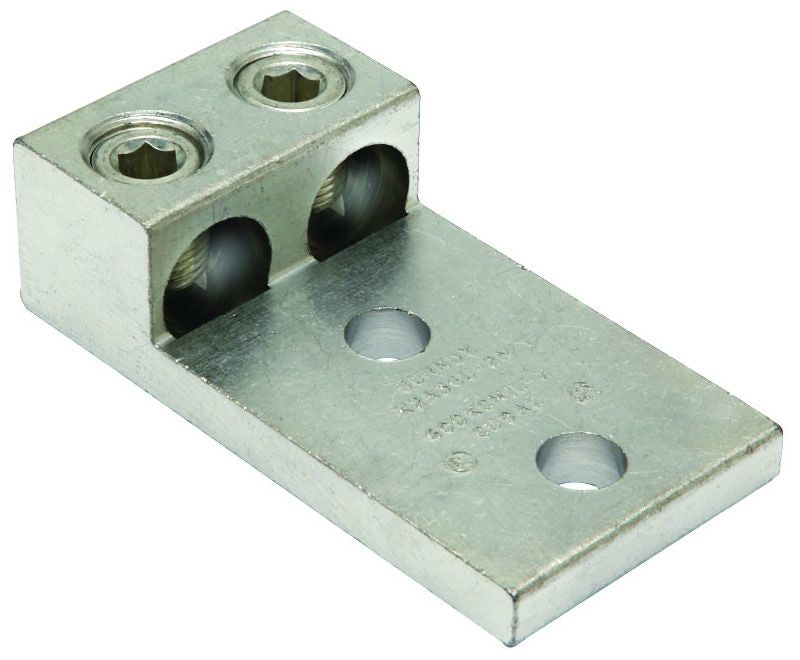

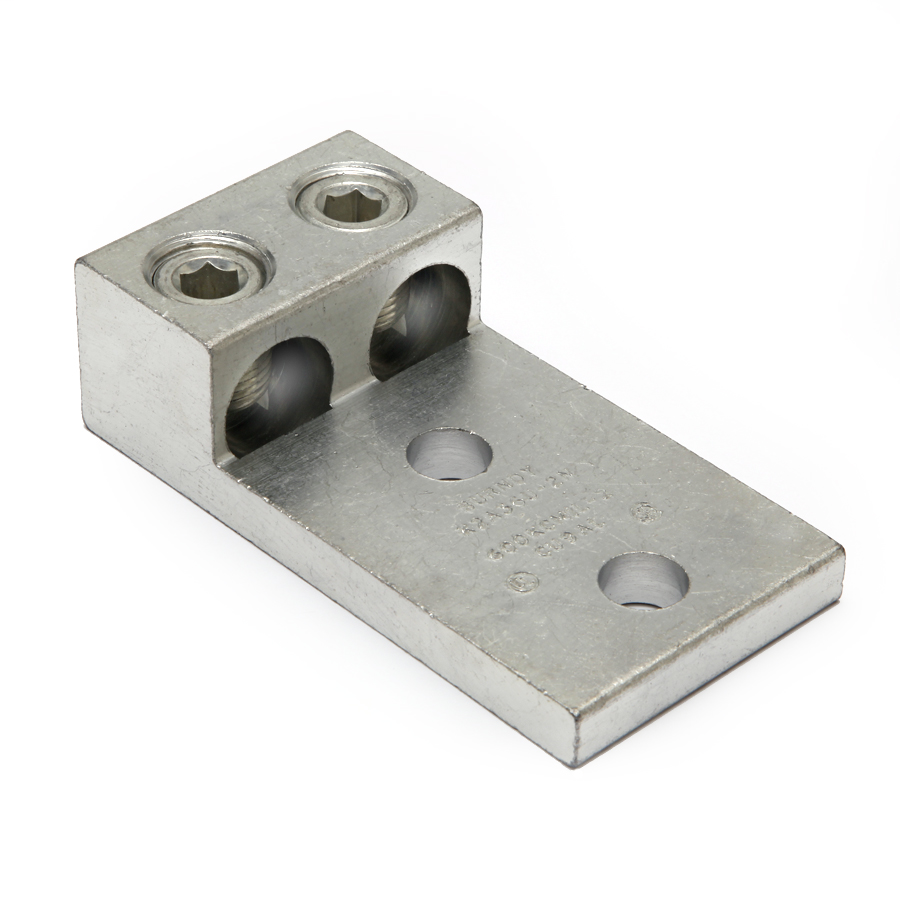

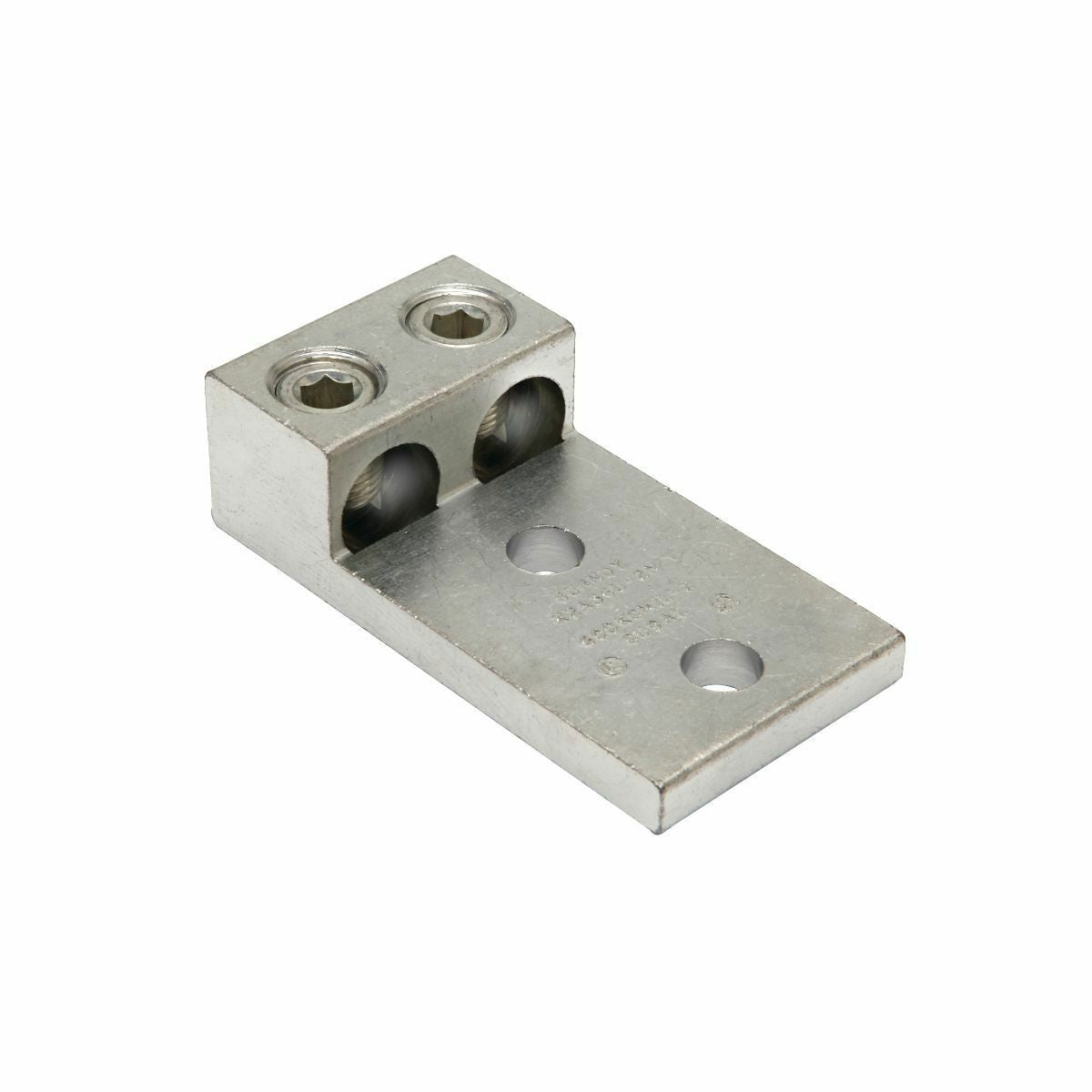

The BURNDY K2A40U2N is an aluminum universal terminal designed for use with two conductors. This terminal is suitable for aluminum and copper conductors from three hundred to eight hundred kcmil in size. It features a two-hole design that allows for easy installation and reliable connections.
- Universal terminal design
- Rated for aluminum and copper conductors
- Constructed from high strength aluminum alloy
Product Highlights
This terminal lug is dual-rated and has electro tin-plated surfaces to reduce contact resistance.
Product Information
Standard Information
-
Catalog Number: K2A40U2N
-
Manufacturer: Burndy, a Hubbell affiliate
Technical Specifications
-
Material: Aluminum
-
Application: For Aluminum and Copper Conductors
-
Number of Conductors: 2
-
Stud Size: 1/2 inch
-
Stud Hole Spacing: 1.75 inches
-
Temperature Rating: 194 degrees Fahrenheit
-
UL Standard: 486A-486B
-
Country of Origin: United States
