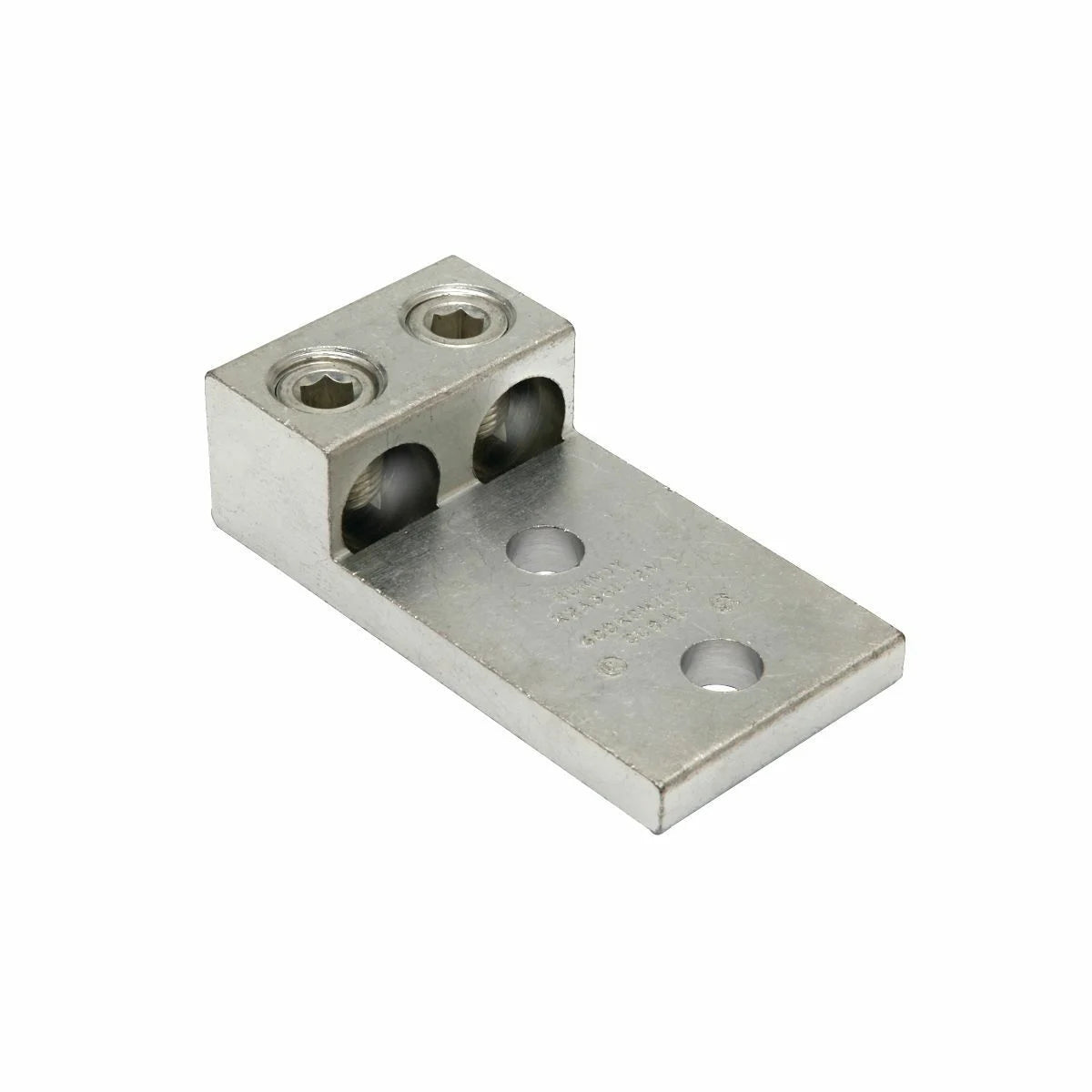

BURNDY K2A36U2N Aluminum Universal Terminal, 2 Conductor, 2 Hole, 2 AWG (Str)-600 kcmil

Product Description

BURNDY K2A36U-2N is an aluminum universal terminal designed for mechanical connections of aluminum and copper conductors. It accommodates two conductors with a size range of two American Wire Gauge (AWG) stranded aluminum to six hundred thousand Circular Mil (KCMIL) in copper. The terminal features a robust design with a n aluminum alloy construction and is electro tin-plated to reduce contact resistance.

• Handles two conductors.
• Features a half-inch stud size with a stud hole spacing of 1.75 inches.
• Complies with UL 486A-486B safety standards.

Product Highlights

This terminal lug is built for durability and electrical efficiency, making it suitable for various electrical wiring applications.

Product Information

Standard Information

• Catalog Number: K2A36U2N
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Material: Aluminum
• Number of Conductors: 2
• Temperature Rating: 194°F
• Application: For aluminum and copper conductors
• Special Features: High strength aluminum alloy, electro tin-plated
• Cross Reference Products: AU-600-2NS, 2-600L2
• Country of Origin: United States
