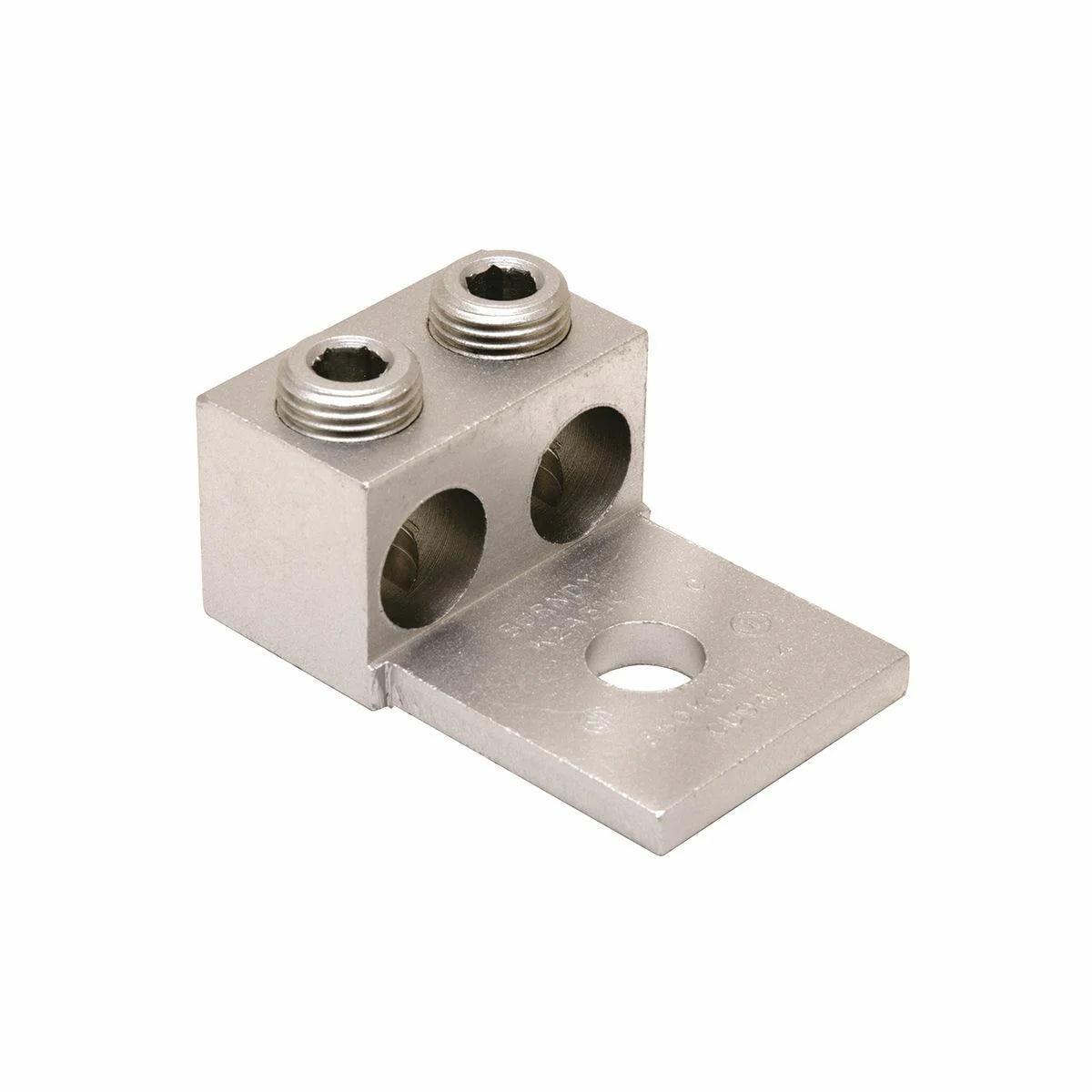

BURNDY K2A36U Aluminum Universal Terminal, 2 Conductor, 2 AWG (Str)-600 kcmil, 1/2 Stud, 2 Screws

Product Description

The BURNDY K2A36U is an aluminum universal terminal designed for two conductors. It is suitable for use with aluminum and copper conductors and is rated for UL 486A-486B standards. The terminal can accommodate conductors of gauge two AWG to six hundred kcmil with a half-inch stud. It comes with two screws for secure connections.

• Dual-rated for aluminum and copper conductors
• Constructed from high-strength aluminum alloy
• Electro tin-plated for reduced contact resistance

Product Highlights

This universal terminal is ideal for various electrical systems where reliable connections are crucial. Its sturdy design and materials ensure long-lasting performance.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Catalog Number: K2A36U
• Material: Aluminum
• Number of Conductors: 2
• Temperature Rating: 194 °F
• Voltage Rating: 35000 volts
• Country of Origin: United States
• Installation Torque: 275 in-lb
• Dimensions: Length 3.2 in, Width 2.41 in, Height 1.58 in
