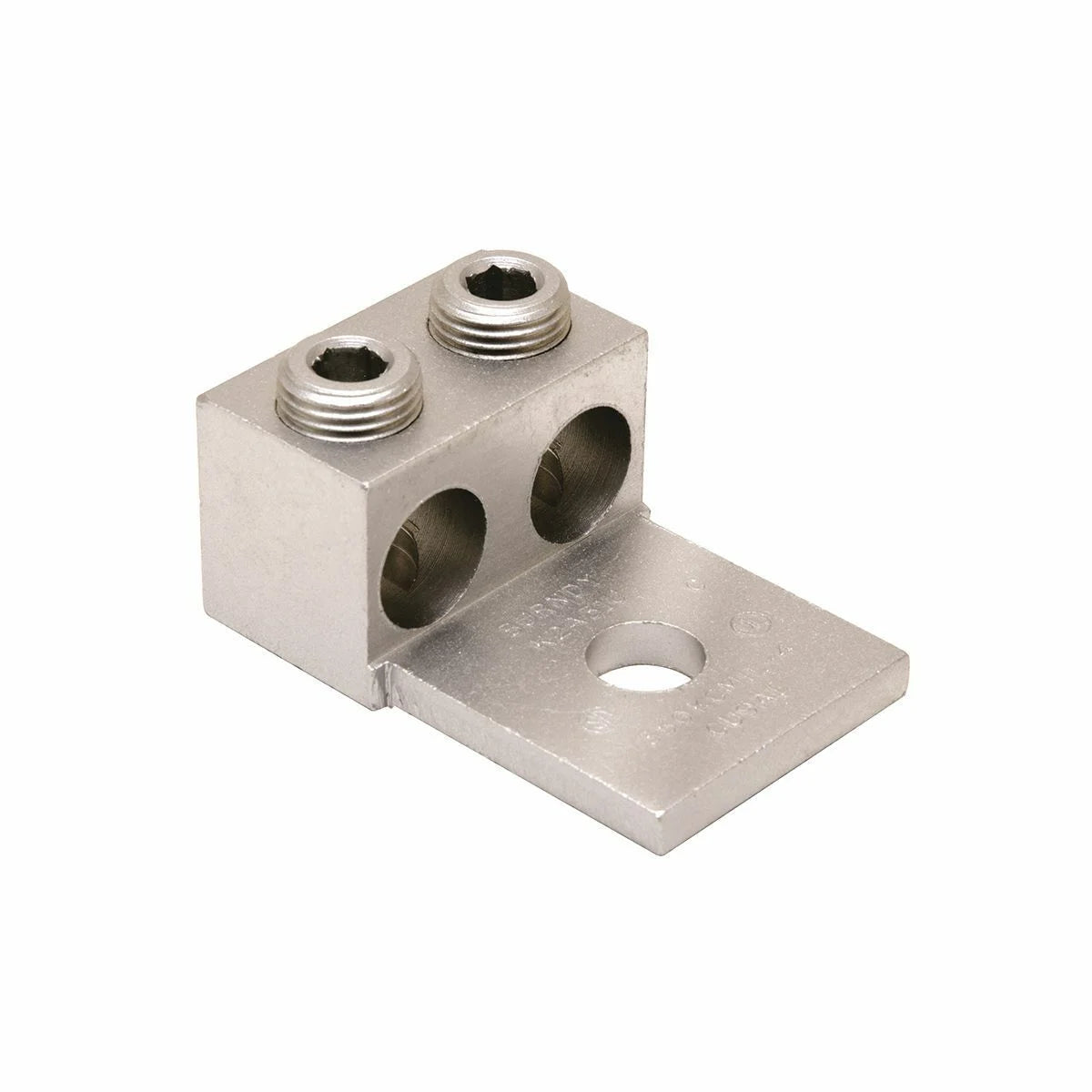

BURNDY K2A31U Aluminum Universal Terminal, 2 Conductor, 1 Hole, 6 AWG (Str)-350 kcmil, 1/2 Stud, 2 Screws, Al/Cu Rated, Tin Plated

Product Description

The BURNDY K2A31U is an aluminum universal terminal designed for two conductors. It features one hole and is compatible with six AWG to three hundred fifty kcmil conductors. This terminal supports a half-inch stud and includes two screws. The terminal is suitable for both aluminum and copper conductors, making it versatile for various electrical applications.

• Compatible with aluminum and copper conductors
• Provides low contact resistance
• Includes mounting hardware for easy installation

Product Highlights

This terminal is built to last and is ideal for wire termination projects.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Catalog Number: K2A31U
• Material: Aluminum
• Number of Conductors: 2
• Application: For Aluminum And Copper Conductors
• Special Features: Dual-rated lugs, Electro-tin plated for low resistance
• Dimensions: Length: 2.88 inches, Width: 1.94 inches, Height: 1.25 inches
• Stud/Bolt Hole Size: 1/2 inches
• Temperature Rating: 194°F
