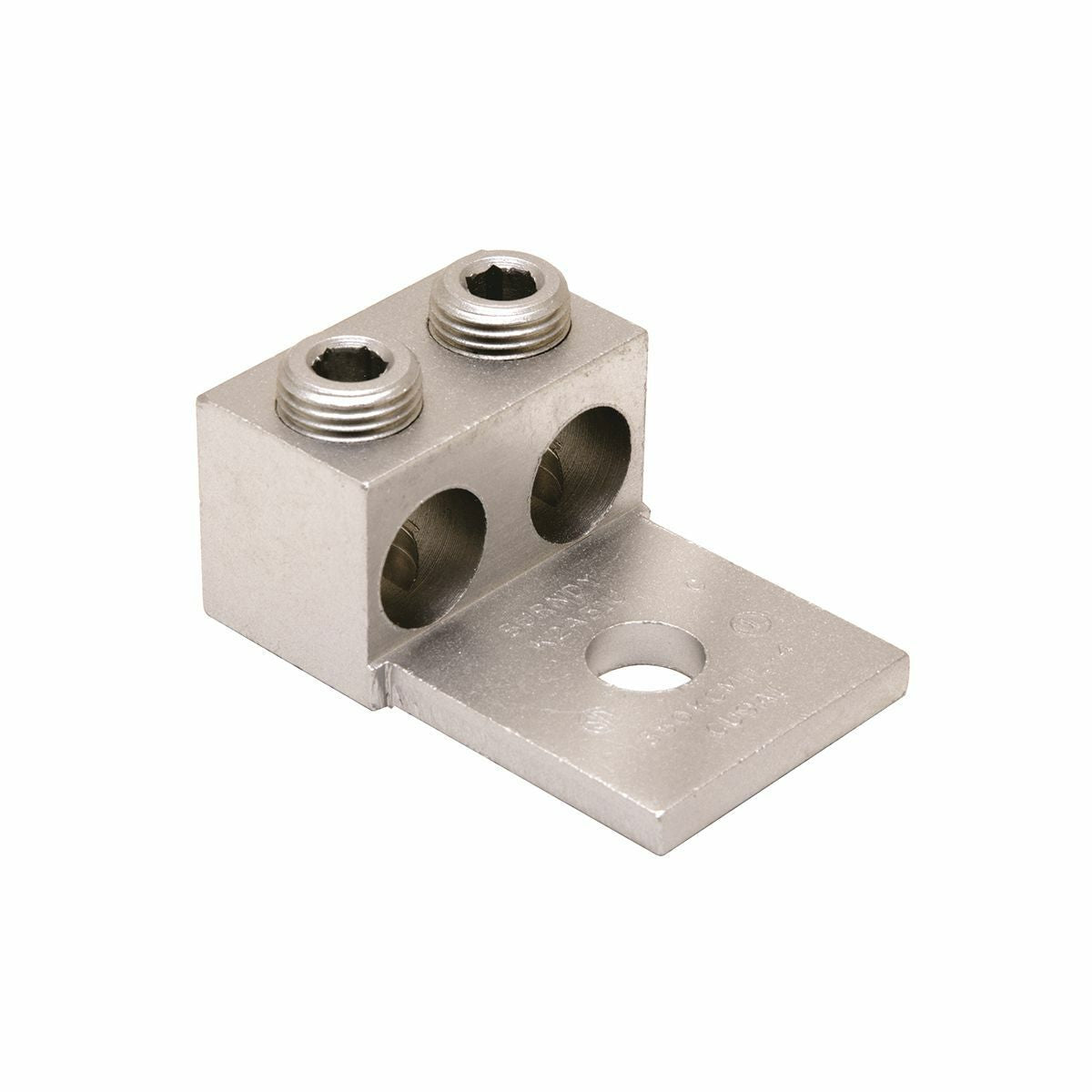

BURNDY K2A29U Aluminum Universal Terminal, 2 Conductor, 1 Hole, 6 AWG Str-250 kcmil, 3/8 Stud, 2 Screws, Al/Cu Rated, Tin Plated

Brand: BURNDY
SKU: K2A29U
Availability: In Stock

Ships same day if ordered by 12 pm
$15.17
$15.17
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The BURNDY K2A29U is an Aluminum Universal Terminal designed for dual-rated applications. This terminal accommodates two conductors and supports wire sizes from six American Wire Gauge (AWG) to two hundred fifty thousand circular mil. It is rated for both aluminum and copper applications.

  • Suitable for aluminum and copper conductors.
  • Constructed with a high-strength aluminum alloy and electro tin plating.
  • Includes two screws for secure fastening.

Product Highlights

This terminal is built to provide low contact resistance, making it ideal for outlasting competitors in demanding environments.

Product Information

Standard Information

  • Brand: BURNDY
  • Manufacturer: Burndy, a Hubbell affiliate
Technical Specifications
Catalog Number
K2A29U
Material
Aluminum
Number of Conductors
2
Conductor Size Range
6 AWG to 250 kcmil
Stud/Bolt Hole Size
3/8 in
Dimensions
Width - 1.66 in, Length - 2.56 in, Height - 1.2 in
Installation Torque
275 in-lb
Temperature Rating
194
Standard Compliance
UL 486A-486B
