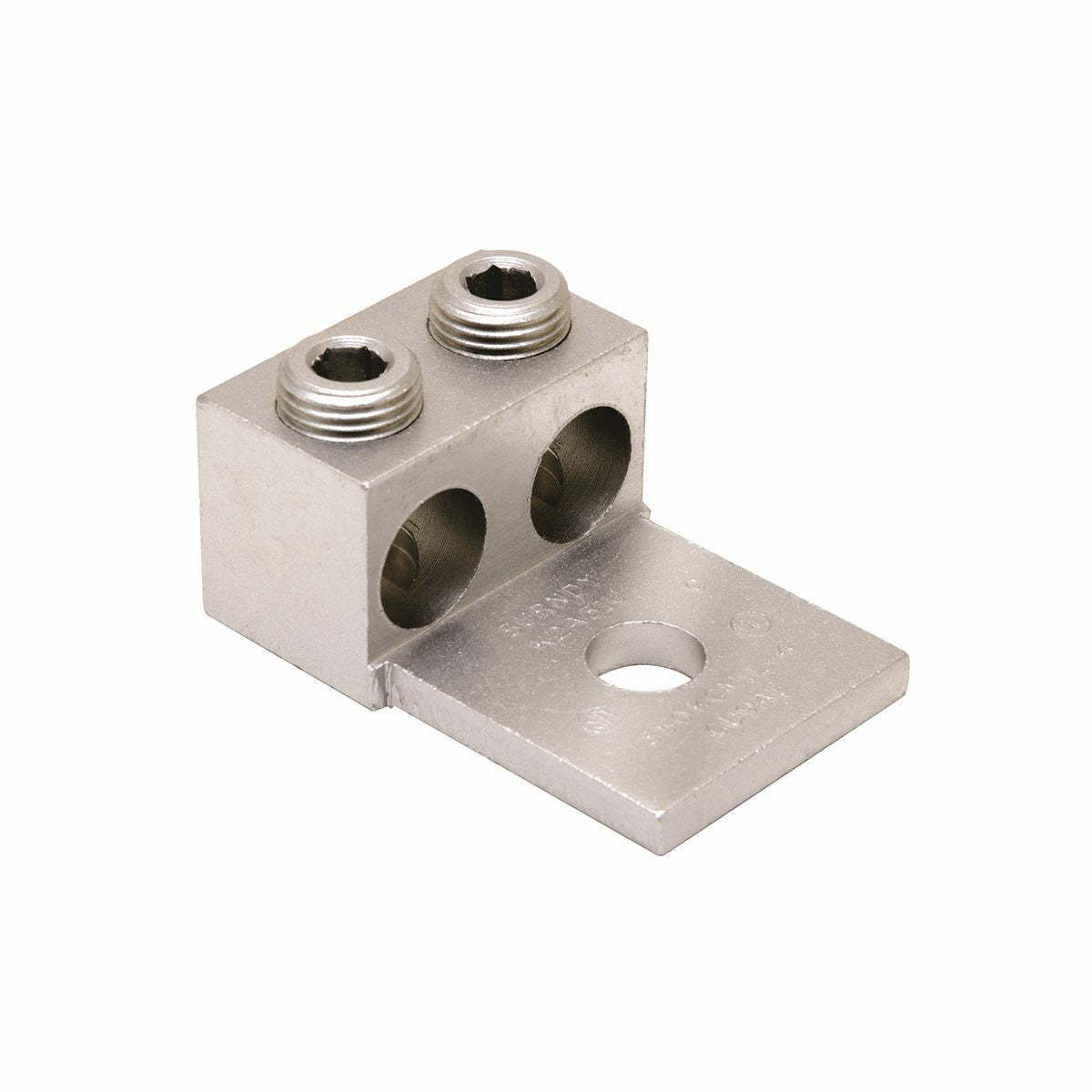

BURNDY K2A26U Aluminum Universal Terminal 2 Conductor 1 Hole 14-2/0 AWG Stud 2 Screws

Product Description

The BURNDY K2A26U is an aluminum universal terminal designed for dual-rated applications. This terminal supports aluminum and copper conductors, making it versatile for various wiring tasks.

• Suitable for conductor sizes from fourteen to two-ought AWG (stranded).
• Made from high-strength aluminum alloy, ensuring durability.
• Tin-plated for improved conductivity and reduced contact resistance.

Product Highlights

The BURNDY K2A26U terminal features a compact design suited for tight installations. It includes two screws and is rated for temperatures up to one hundred ninety-four degrees Celsius.

Product Information

Standard Information

• Catalog Number: K2A26U
• Manufacturer: Burndy, a Hubbell affiliate
• Brand: BURNDY
• Sub Brand: Universal Term
• Country of Origin: Mexico

Technical Specifications

• Application: For aluminum and copper conductors
• Material: Aluminum
• Number of Conductors: 2
• Temperature Rating: 194 °F
• Installation Torque: 50 in-lb
• Stud/Bolt Hole Size: 1/4 inch
• Dimensions: Length 1.47 inches, Width 1.25 inches, Height 0.79 inches
• Standard: UL 486A-486B
• UPC: 781810600054
• Special Features: Low contact resistance, dual-rated
