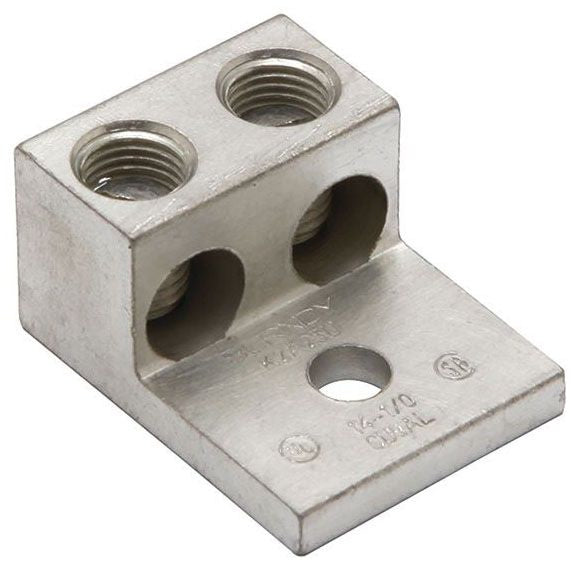

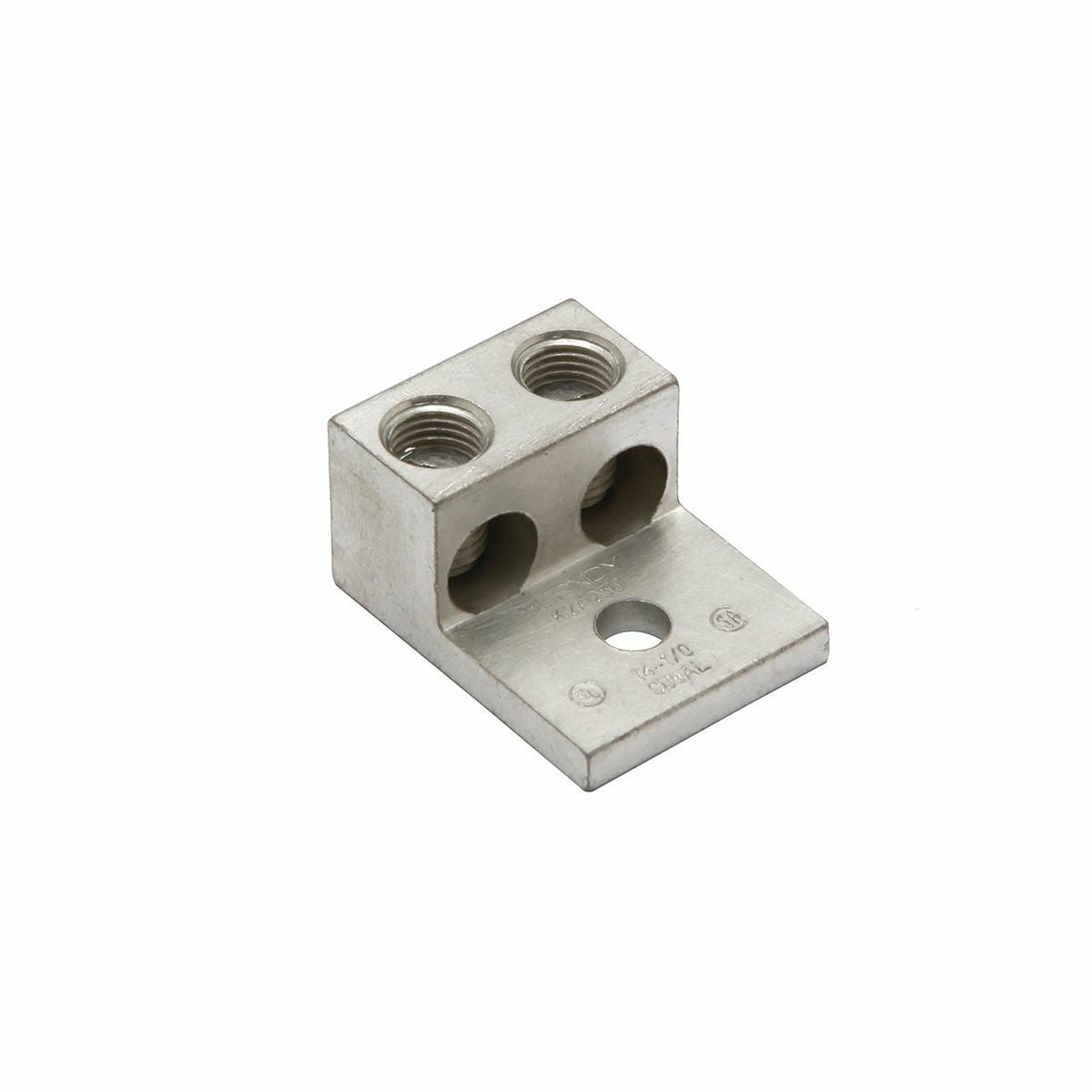

BURNDY K2A25U Aluminum Universal Terminal 2 Conductor 1 Hole 14-1/0 AWG 1/4 Stud 2 Screws

Product Description

The BURNDY K2A25U is an aluminum universal terminal suitable for two conductors. It is compatible with both aluminum and copper conductors.

• Rated for two conductors with a wire size range of fourteen to one-aught AWG.
• Includes a quarter-inch stud and two screws for secure connections.
• Constructed from high-strength aluminum alloy for durability.

Product Highlights

This terminal lug is designed to withstand a temperature rating of one hundred ninety-four degrees Fahrenheit. It is electro-tin plated to ensure low contact resistance and compliance with UL standards.

Product Information

Standard Information

• Catalog Number: K2A25U
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Material: Aluminum
• Number of Conductors: 2
• Application: For Aluminum And Copper Conductors
• Dimension N: 0.44 inches
• Dimension D: 0.81 inches
• Stud/Bolt Hole Size: 1/4 inches
• Height: 0.79 inches
• Length: 1.47 inches
• Width: 1.13 inches
