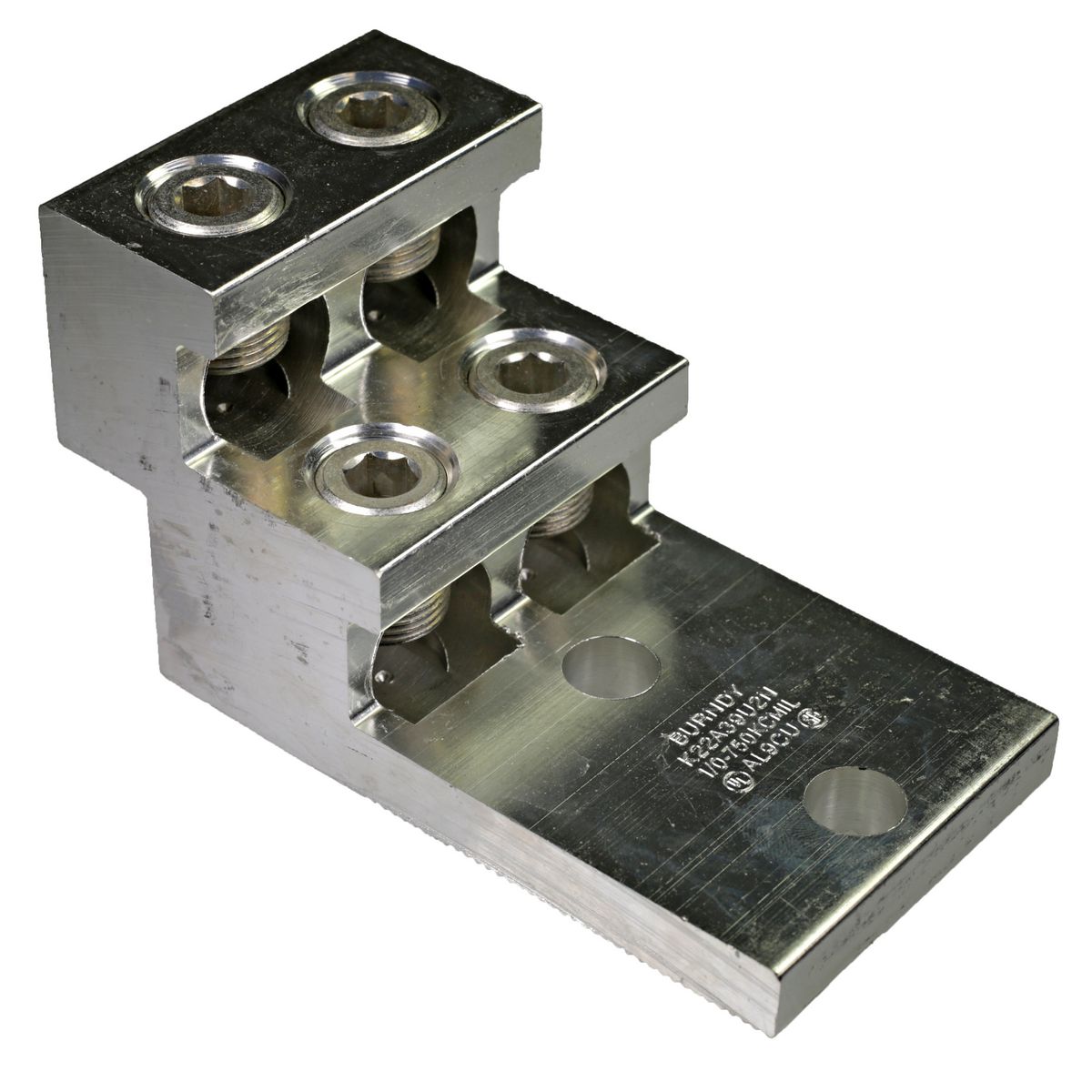

Burndy K22A39U2N Mechanical Lug Terminal 1/2 in Stud (2-Hole)

Product Description

Burndy K22A39U2N is an aluminum mechanical lug terminal used to terminate multiple conductors onto equipment pads, panel boards, or switchgear. The two-hole design features 1/2 in. diameter stud holes spaced 1.75 in. on center, tin electroplated finish, and stacked connection for range-taking conductor ports. It is dual rated AL9CU and listed to UL 486A-486B with CSA approval for electrical connector applications.

• Aluminum construction with tin electroplated finish; dimensions 5.34 in x 2.75 in x 3 in
• Two-hole stacked/bolted lug with 1/2 in stud holes and 1.75 in (1-3/4 in) spacing
• Dual rated AL9CU; listed to UL 486A-486B and CSA approved; temperature rating 194 F

Product Highlights

Aluminum tin-plated 2-hole mechanical lug, 1/2 in stud, AL9CU dual rated, UL 486A-486B listed

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer Part Number: K22A39U2N
• Country of Origin: USA

Technical Specifications

• Brand: Burndy
• MPN: K22A39U2N
• Manufacturer: Burndy (Hubbell Incorporated)
• Material: Aluminum
• Plating/Finish: Tin electroplated
• Connector Type: Stacked mechanical lug
• Mounting Type: Two-hole mounting (stacked/panel)
• Stud Hole Diameter: 0.5 in
• Stud Hole Spacing: 1.75 in (1-3/4 in) on center (NEMA spacing)
• Conductor Count: 4 conductor (range-taking port)
• Maximum Conductor Size: 750 kcmil
• AL9CU Rating: Dual rated for copper and aluminum conductors (AL9CU)
• UL Listing: Listed to UL 486A-486B
• CSA Certification: CSA approved
• Temperature Rating: 194 F
• Dimensions (L x W x H): 5.34 in x 2.75 in x 3.00 in
• Series: K-A-U2N
• Country of Origin: USA
• UPC: 781810670163
• GTIN: 00781810670163
• Application: Terminate multiple conductors onto equipment pads, panel boards, or switchgear
