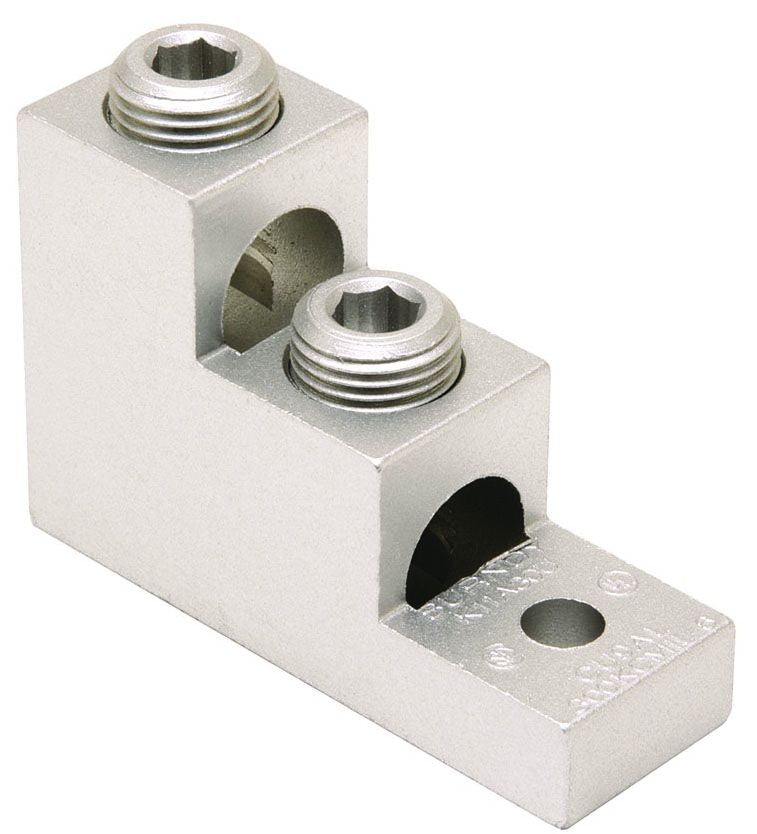

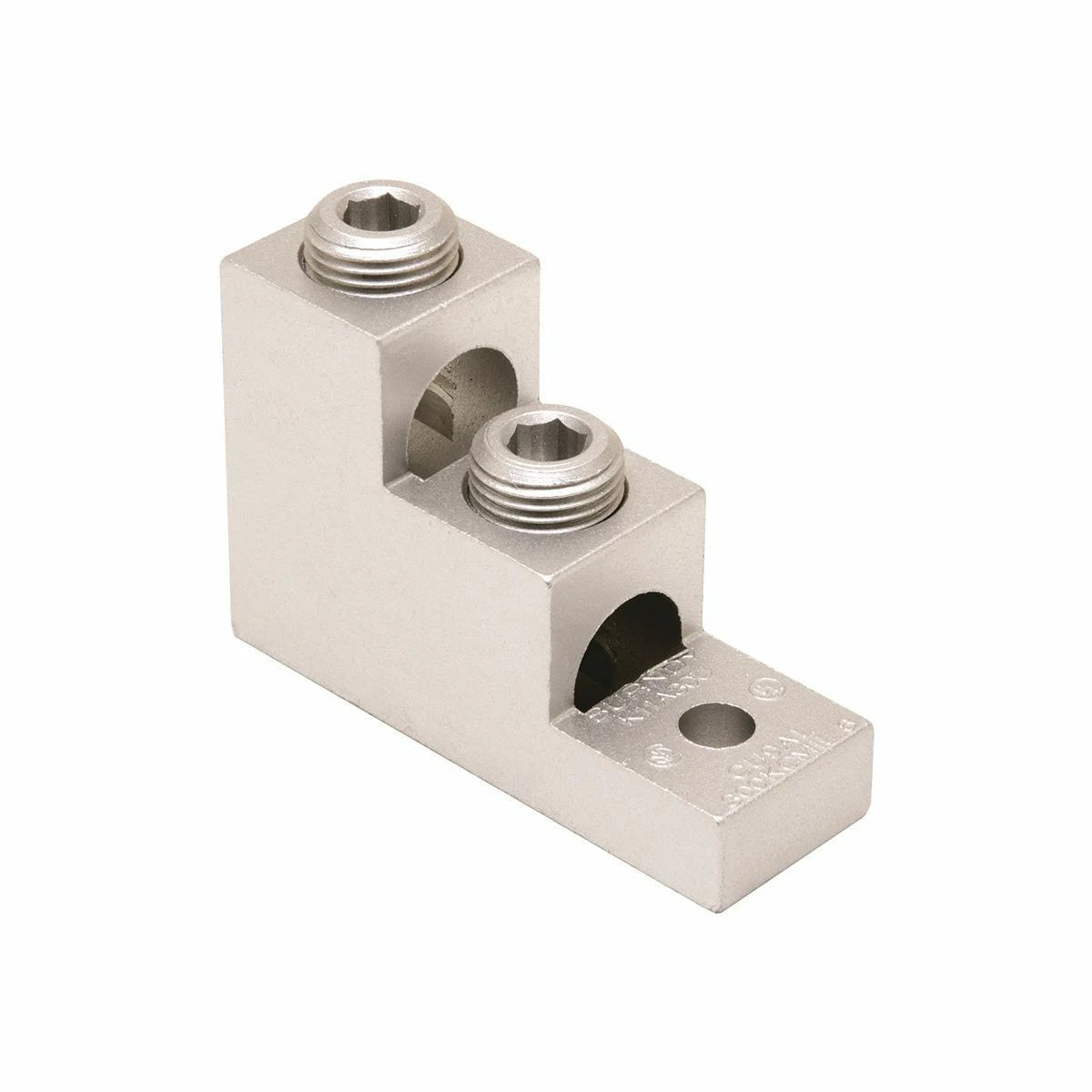

BURNDY K11A30U Aluminum Universal Terminal 1 Hole Two: 6 AWG (Str)-300 kcmil 5/16 Stud 2 Screws Al/Cu Rated Tin Plated

Product Description

The BURNDY K11A30U is an aluminum universal terminal designed for effective electrical connections. It accommodates two conductors in the range from six AWG stranded to three hundred kcmil stranded. The terminal is suitable for both aluminum and copper conductors and is made from high-strength extruded aluminum alloy. It features electro tin plating for reliable performance.

• Constructed from high-strength extruded aluminum alloy
• Dual-rated for aluminum and copper conductors
• Easy installation with two screws and a 5/16 inch stud

Product Highlights

This terminal provides excellent low contact resistance and is UL listed for safety. Ideal for electrical panels and connections, it is an essential component in various electrical installations.

Product Information

Standard Information

• Catalog Number: K11A30U
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Material: Aluminum
• Application: For Aluminum And Copper Conductors
• Number of Conductors: 2
• Stud/Bolt Hole Size: 5/16 inch
• Overall Length: 3 inches
• Overall Height: 2 inches
• Width: 1 inch
• Installation Torque: 275 inch-lb
