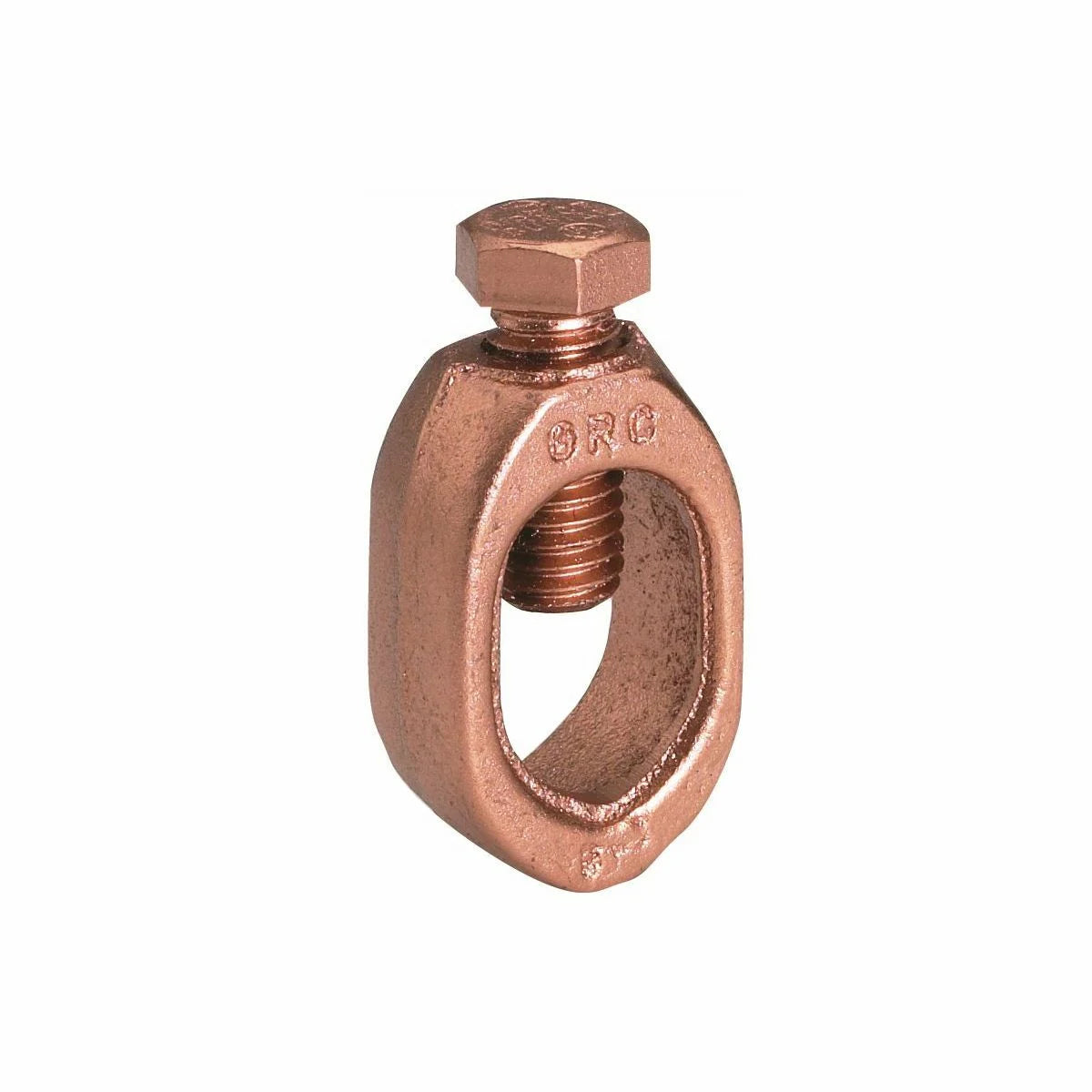

Burndy GRC12 Mechanical Ground Rod Clamp, For Cable to Rod, High Strength, 10 AWG (Sol)- 2 AWG (Str), 1/2 Drive Rod, 3/8 Stud

Product Description

The Burndy GRC12 Mechanical Ground Rod Clamp is designed for securely joining cables to ground rods. It supports cable sizes ranging from ten AWG solid to two AWG stranded. This clamp is suitable for use with half-inch ground rods and is made from a high-strength copper alloy.

• Direct burial in earth or concrete
• Installation using one wrench
• UL467 listed for safe performance

Product Highlights

This product is ideal for applications requiring reliable connections between cable and copper-clad, galvanized steel, or stainless steel ground rods.

Product Information

Standard Information

• Catalog Number: GRC12
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Application: For joining a range of cable to copper clad, galvanized steel, and stainless steel ground rods, direct burial applications in earth and concrete
• Material: Copper Alloy
• Country of Origin: Mexico
• Special Features: High copper alloy connector, one-wrench installation, UL467 listed, ground rod size: 1/2 inch, stud size: 3/8 inch, dimensions: width 0.89 inches, length 0.63 inches, height 2 inches
• UPC: 781810230947
• Cross Reference Products: CGRC-48, JAB12H
