BURNDY GP654CG1 Raised Floor Grounding Clamp, #8 Sol. - 4 Str., 1.31 in L, 2.38 in.

Product Description

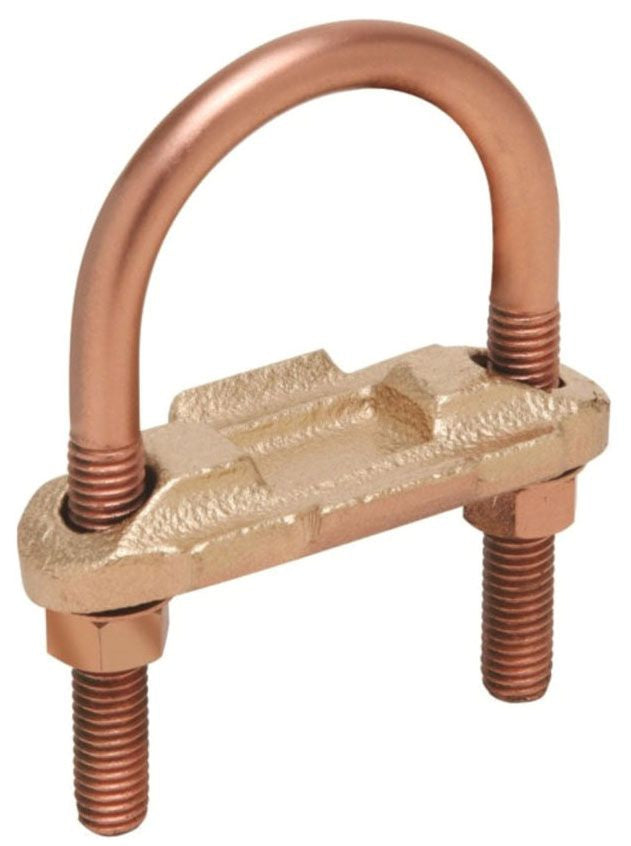

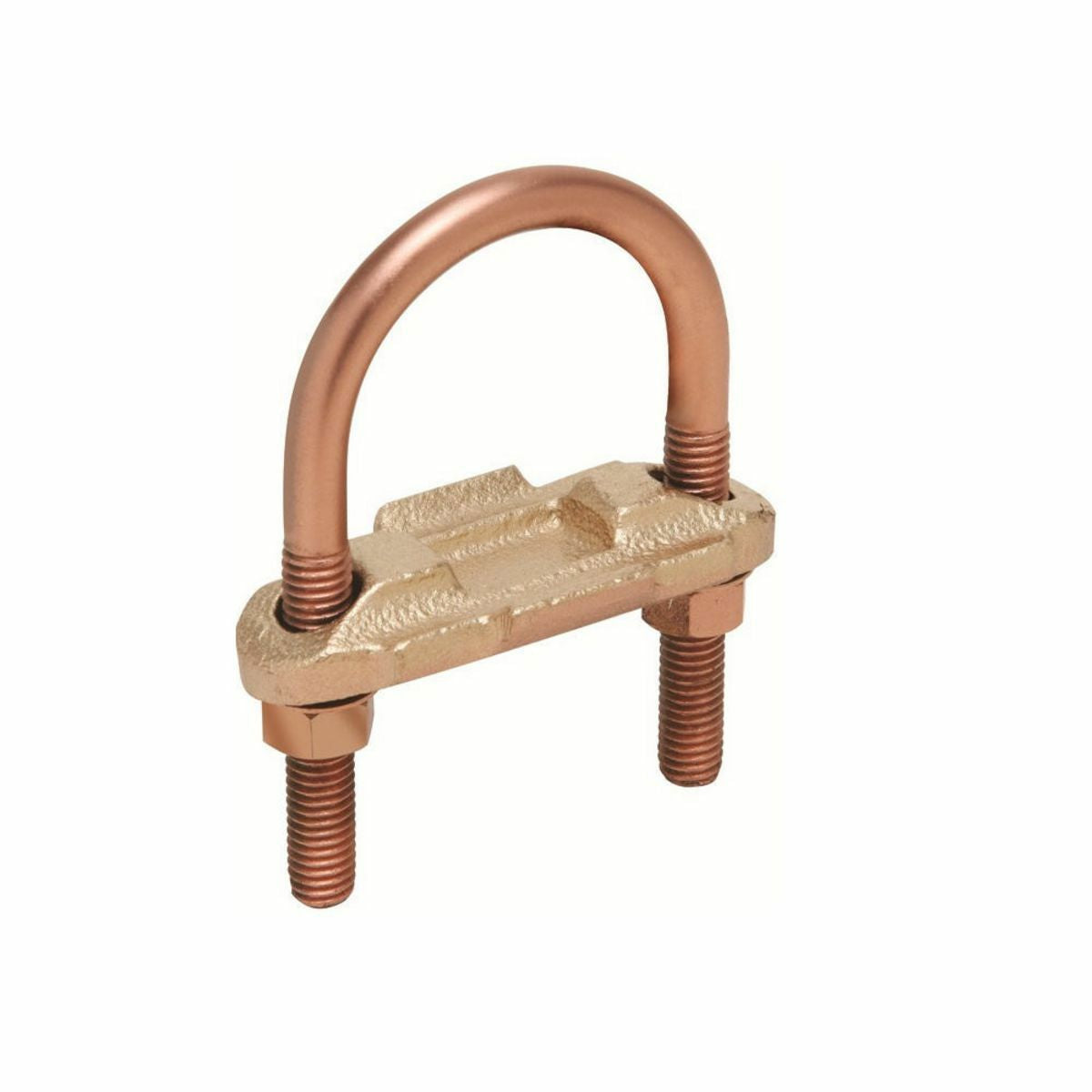

The BURNDY GP654CG1 is a raised floor grounding clamp designed for grounding applications in computer systems. It is made to accommodate #8 solid to 4 stranded copper wire, making it versatile for various connections. This clamp features an easy installation process using a U-bolt to attach to round or square pedestals. It provides a low impedance ground path for optimal performance.

• Accepts one or two ground conductors.
• UL467 listed for safety.
• Constructed from durable copper alloy for longevity.

Product Highlights

This clamp is suited for raised floor computer grounding needs and installs with minimal connectors. It effectively satisfies multiple grounding requirements.

Product Information

Standard Information

• Catalog Number: GP654CG1
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Material: Copper Alloy, Cast
• Application: For Raised Floor Computer Grounding Applications
• Country of Origin: Mexico
• Special Features: Accepts 1 or 2 ground conductors, low impedance ground path, handles various pedestal sizes, UL467 listed
• Installation Torque: 240 IN-LB
• Width: 2.38 inches
• Length: 1.31 inches
