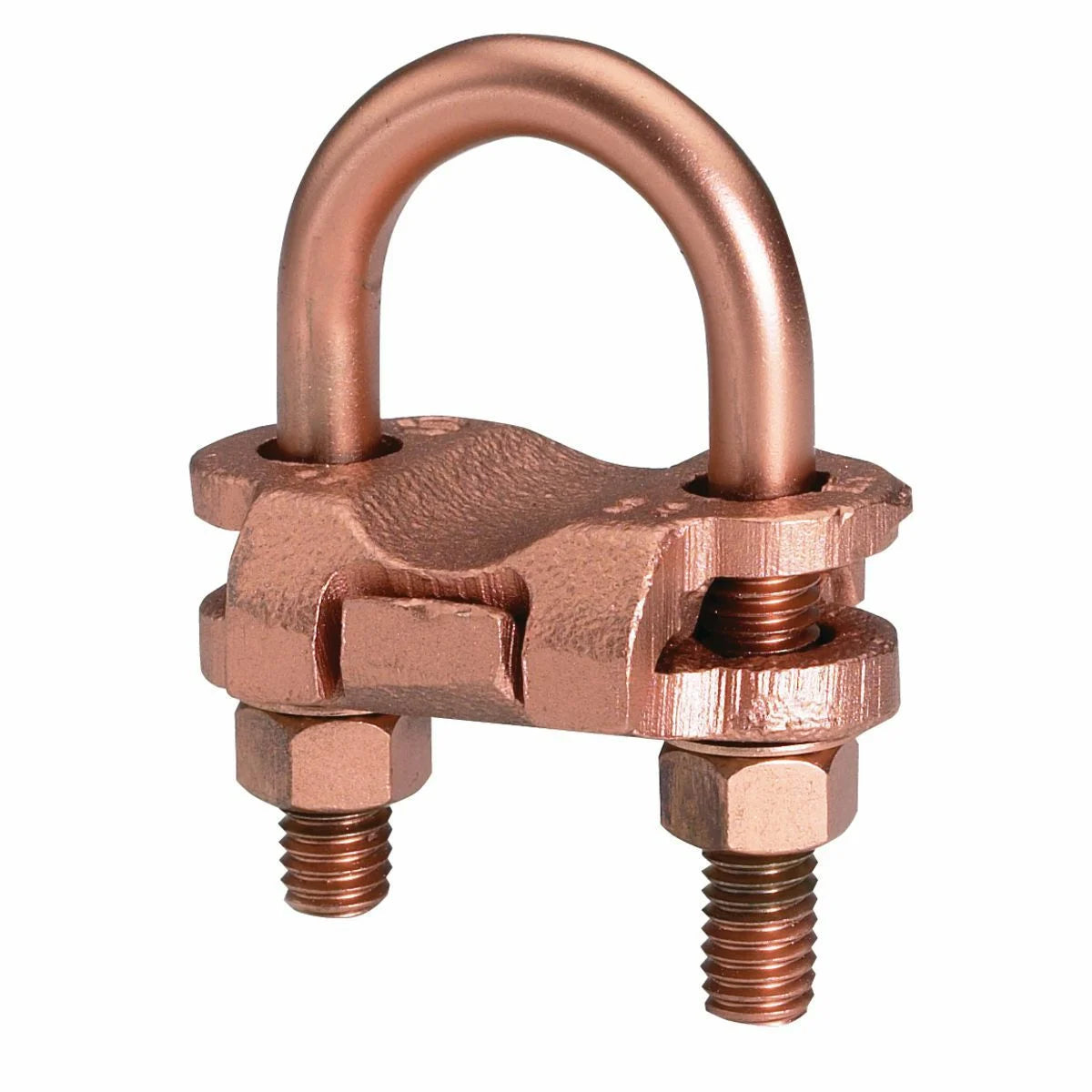

BURNDY GP64526G1 Raised Floor Grounding Clamp, #4 Sol. - 2/0 Str., 1.69 in L, 2.38 in.

Product Description

The BURNDY GP64526G1 is a raised floor grounding clamp designed for reliable electrical grounding in various applications. This clamp accommodates #4 solid to 2/0 stranded wire and is suitable for raised floor systems. It features a compact design with dimensions of one point six nine inches in length and two point three eight inches in width.

• Accepts 1 or 2 ground conductors
• Constructed from copper alloy for enhanced durability
• UL467 listed for safety compliance

Product Highlights

This grounding clamp serves multiple purposes including static ground and fault current ground, making it ideal for use in environments needing robust grounding solutions.

Product Information

Standard Information

• Catalog Number: GP64526G1
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Material: Copper Alloy, Cast
• Application: For Raised Floor Systems
• Country of Origin: Mexico
• Standard: UL467
• Number of Conductors: 1; 2
• Pedestal Type: 3/4 to 1 in Round, 3/4 to 7/8 in Square
• Width: 2.38 in
• Length: 1.69 in
