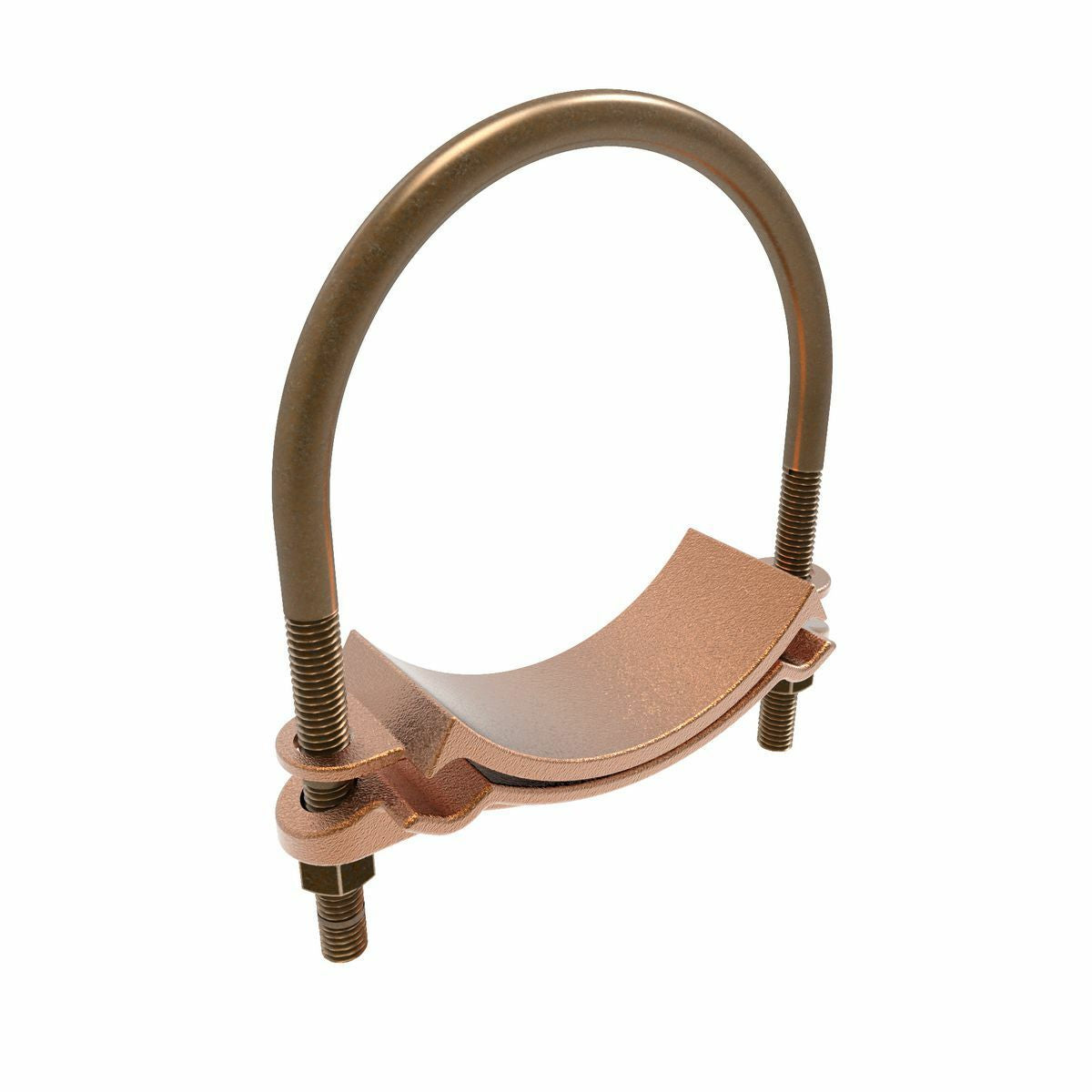

BURNDY GD2226 Mechanical Grounding Connector, 4 AWG (Sol.) - 2/0 AWG (Str.)

Product Description

The BURNDY GD2226 is a mechanical grounding connector designed for connecting two parallel copper cables to a rod or pipe. This connector allows for a solid connection suitable for applications requiring direct burial in the ground or concrete. It is compatible with solid and stranded conductors in the four AWG to two AWG category.

• High copper alloy body for improved conductivity.
• UL467 listed for direct burial applications.
• One-wrench installation for ease of use.

Product Highlights

This connector is specifically designed for joining copper cables to grounding rods or pipes. Its durable construction makes it ideal for use in various electrical grounding situations, including in fences and building foundations.

Product Information

Standard Information

• Catalog Number: GD2226
• Brand: BURNDY

Technical Specifications

• Application: For joining two parallel copper cables to rod or pipe and burial in ground or concrete.
• Material: Copper alloy, cast.
• Country of Origin: Mexico.
• UPC: 781810260463.
• Installation Torque: 240 inch-pound.
• Tube Size (IPS): 4 inches.
• Ground Rod Size: 4 to 4.5 inches.
• Height: 6.375 inches.
• Width: 5.875 inches.
