Burndy GD1529 250MCM Parallel Grdcn

Product Description

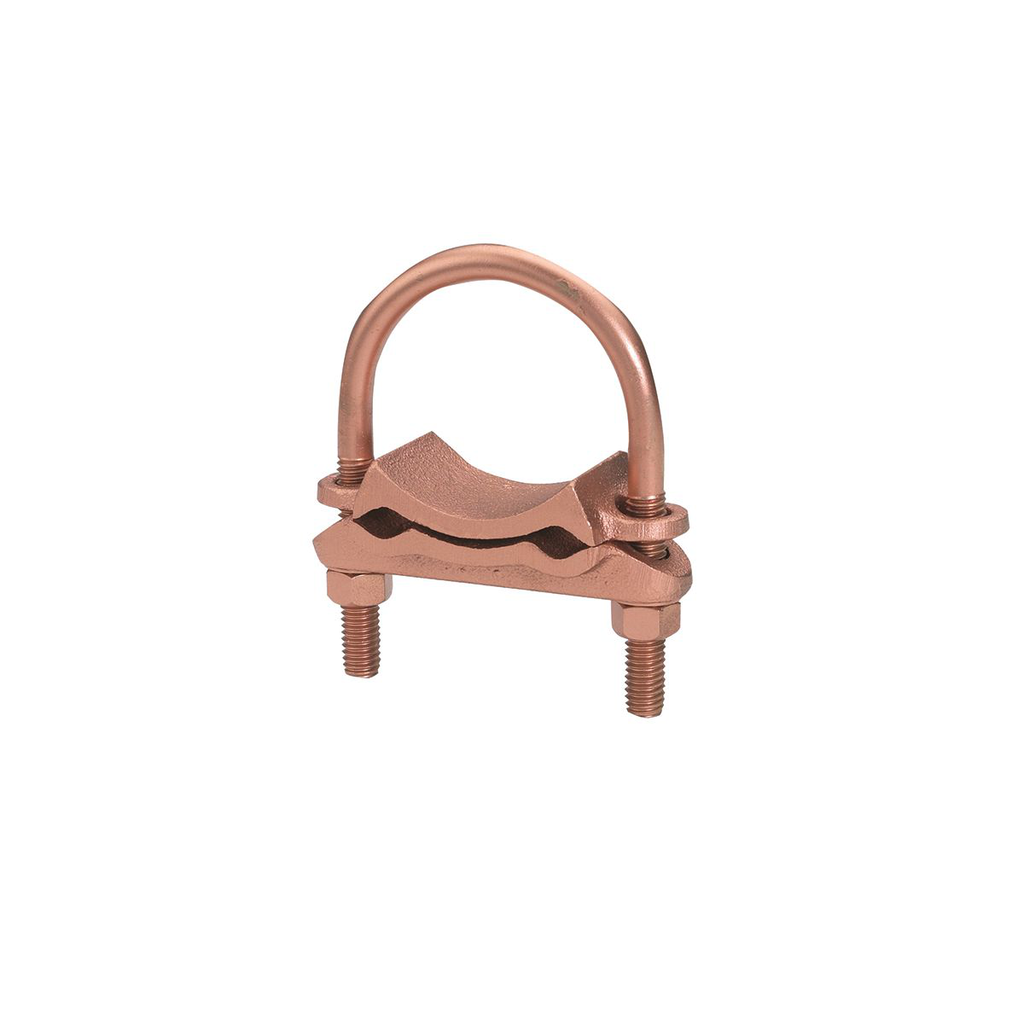

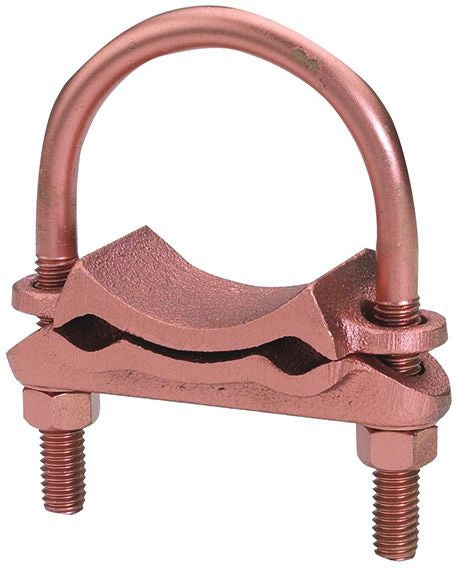

The Burndy GD1529 is a mechanical grounding connector designed for various applications. This connector accommodates conductor sizes ranging from 2/0 to 4/0 AWG solid copper, and 2/0 AWG to 250 KCMIL stranded copper. It is suitable for installation on one-inch rods, with a rod size of one and one-eighth to one and one-quarter inches, facilitating effective grounding connections.

• Material: Cast high copper alloy body and Durium U-bolt.
• Installation torque: 240 lb-inch.
• UL 467 and CSA approved for safety.

Product Highlights

The GD1529 is designed for direct burial installations and is compatible with parallel cable connections to pipes or rods.

Product Information

Standard Information

• Manufacturer: Burndy
• UPC: 78181026026

Technical Specifications

• Conductor Size: 2/0 to 4/0 AWG Solid (Copper), 2/0 AWG to 250 KCMIL Stranded (Copper)
• IPS Size: 1 Inch
• Rod Size: 1-1/8 to 1-1/4 Inch
• Size: 2-5/8 Inch W x 3-3/8 Inch H
• Installation: U-Bolt to Pipe/Rod
• Stud/Bolt Size: 3/8 Inch
• Approval: UL 467, CSA
• RoHS Compatible
